DETAILS

• Platform

  SuperSix EVO
• Model Name

  SuperSix EVO Carbon Disc 105 Di2
• Model Code

  C11752M

FRAMESET

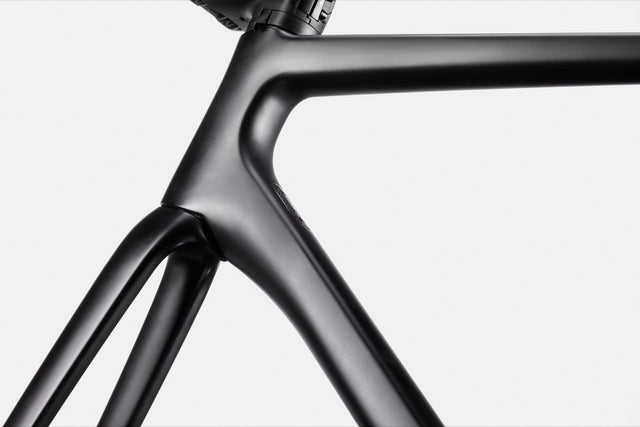

• Frame

  SuperSix Evo Carbon, integrated cable routing w/ Switchplate, 12x142 Speed Release thru-axle, SAVE, PF30a, flat mount disc, integrated seat binder
• Fork

  SuperSix Evo Carbon, SAVE, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" steerer and 55mm offset (44-54cm), 1-1/8" to 1-3/8” steerer and 45mm offset (56-62cm)
• Headset

  Integrated, 1-1/8" - 1-1/4" (44-54cm), 1-1/8" - 1-3/8" (56-62cm)

DRIVETRAIN

• Rear Derailleur

  Shimano 105 Di2 7150
• Front Derailleur

  Shimano 105 Di2 7150, braze-on
• Shifters

  Shimano 105 Di2 7170, hydraulic disc, 12-speed
• Chain

  Shimano 105 7100, 12-speed
• Crank

  Shimano 105 7100, BSA, 50/34
• Rear Cogs

  Shimano 105 7100, 12-speed, 11-34
• Bottom Bracket

  FSA PF30a BB for 24mm

BRAKES

• Brakes

  Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
• Brake Levers

  Shimano 105 Di2 7170 hydraulic disc

WHEELS

• Rims

  HollowGram 35, Carbon, 24h front, 28h rear, 35mm deep, 19mm inner width, tubeless ready
• Spokes

  HollowGram, 2.0/1.8/2.0, straight-pull
• Tires

  Vittoria Rubino Pro Bright Black, 700x25c, reflective strip
• Tire Size

  25
• Wheel Size

  700
• Hubs

  (F) HollowGram, sealed bearing 12x100mm centerlock / (R) HollowGram 3-pawl, sealed bearing, 12x142mm centerlock

COMPONENTS

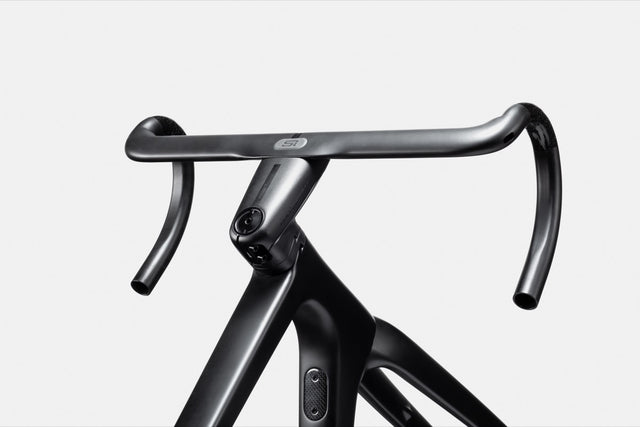

• Handlebar

  HollowGram SAVE SystemBar, Carbon, 8 deg. pitch adjust
• Stem

  HollowGram KNØT, Alloy w/ cable cover, -6°
• Grips

  Cannondale Bar Tape, 3.5mm
• Saddle

  Prologo Nago RS STN
• Seatpost

  HollowGram 27 SL, Carbon, 2 bolt clamp, 330mm, 0mm offset (44-48cm), 15mm offset (51-62cm)

CONNECTIVITY

• Wheel Sensor

  Cannondale Wheel Sensor
