REASON AIR CRB 00 2027
· Avinox M2S Motor -150Nm 1300W (Boost mode) / 130Nm 1300W
· Integrated 800 Wh LI-ION battery
· Reason Full Carbon frame, Boost, 140mm Wheel travel
· Fox 36 Float SL Factory fork with 140 mm travel
· Fox Float Factory shock
· Sram XX AXS T-Type 12-speed drivetrain
· XTR 4 Piston disc brakes 203 / 203
· DT Swiss HXC 1200 Carbon Wheels
Adapted to your style
Designed to offer a perfect balance between reduced weight and high-level performance. Choose between the solidity of aluminum or the reactive lightness of carbon. Its adjustable geometry and optimized kinematics ensure agility, control and efficiency in any type of terrain. Thanks to the Avinox system from DJI, you will enjoy powerful and smooth assistance, ideal for demanding ascents as well as technical descents. A lightweight, precise and adaptable e-bike for every rider.
Leverage ratio
The Reason incorporates a progressive kinematics with a leverage ratio of 21%, which guarantees a sensitive suspension at the beginning of the travel and progressively more firm towards the end. This behavior improves traction, comfort and avoids bottoming out on jumps or large impacts. Additionally, it allows for fine adjustment through tokens or volume spacers in the shock absorber, adapting to different riding styles. A smooth, controlled and balanced curve, ideal for Trail, Enduro and e-bikes.
Anti-Squat
The Reason presents an optimized and balanced anti-squat curve, firm when you pedal, sensitive when the terrain requires it. With values from 108 % to 104 % in the SAG, it eliminates bobbing while pedaling and maintains a stable and efficient suspension during climbs. Its progressive descent up to 65 % improves traction on large compressions, achieving a perfect balance between performance and sensitivity.
Anti Drive
The Reason features a progressive anti-dive curve around 55 %, which allows maintaining control during intense braking without excessively stiffening the front suspension. This value falls within the optimal range (50–70 %) for Trail and Enduro, ensuring stable handling, an active fork and a natural feel in technical sections where the balance between absorption and control is crucial.
Kick-Back
The Reason presents a progressive Kick-Back curve with a moderate value of up to −20°, perfectly balanced for a trail/enduro e-bike. This figure is within the ideal range, minimizing interference in technical pedaling without compromising sensitivity on descents. The result is an active, predictable suspension with excellent traction, ideal for maximizing motor assistance on any
Motor DJI Avinox

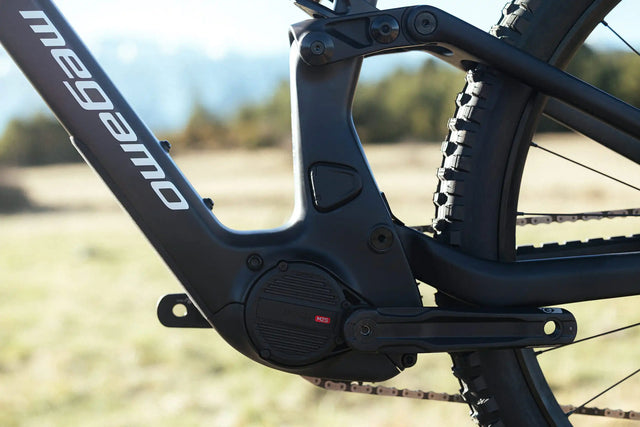

The DJI Avinox M1 motor, integrated into the Megamo REASON, blends cutting-edge technology with relentless performance. Its compact design, palm-sized and weighing just 2.52 kg, delivers an impressive 105 Nm of torque. Thanks to its innovative planetary gear, it achieves a high transmission ratio in minimal space, striking a remarkable balance between size, lightness, and power. Ideal for tackling the toughest terrain with maximum efficiency and control.
Boost: Maximum continuous torque
Boost: Power peak
Maximum continuous torque
Power peak
Lightweight motor
Optimized to dynamically adapt to changing conditions, Auto mode uses advanced sensor fusion to adjust assistance automatically and continuously based on pedaling effort. Ideal for long rides and varied terrain.
The REASON features the 2” OLED touchscreen from the DJI Avinox system, fully integrated into the frame. This advanced interface allows you to manage the drive unit and connect to the app. With automatic brightness up to 800 nits, it remains readable in all conditions and resistant to water, dust, and wet fingers.
2 inches
Screen size
800 nits
Maximum screen brightness
326ppi
Screen resolution
Connectivity
Intuitive and configurable interface
Thanks to the integrated Avinox drive system, the Reason allows users to easily record all ride data. With advanced sensors that collect nearly 50 metrics, the control screen can be customized via the Avinox app, including details such as ride duration, range, average speed, and real-time power output.
Wireless controllers
DJI has developed dual wireless controllers that connect to the main screen via Bluetooth. This eliminates the need for cables, simplifies maintenance, and enables fast switching between assist modes with quick access to various functions and commands.
Smartphone integration for enhanced security
The Avinox mobile app unlocks the full potential of the system. Once paired via Bluetooth, it allows users to protect the bike, manage ride data, customize assist levels, and monitor the e-bike’s status in real time. It also sends alerts in case of unusual movement and provides other smart features.
Tailored parameters
After syncing with the Avinox app, riders can customize the display parameters to their preferences and riding styles. Settings can also be adjusted directly from the phone depending on the needs of each ride.
Smart bike protection
When the bike is connected to the smartphone via Bluetooth, it can be unlocked automatically as the user approaches. The system also includes safety features that send alerts to the phone if suspicious movement is detected, helping users stay informed about the bike’s location and status.
Smart diagnostic system
If an issue is detected in the drive system, a visual and audible alert will appear on the screen. The app allows users to identify, locate, and quickly resolve any errors to keep the bike functioning properly.
Technical information
 |

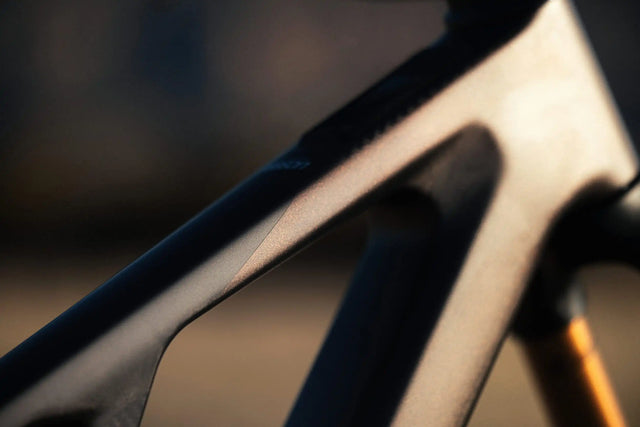

Frame | Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 140 mm |
 |
Fork | Fox 36 Float SL Factory, 140mm Travel, Grip X, HSC, LSC, HSR, LSR, Kabolt SL Axle x 110, 1.5 Tapered, 68HT, 44mm Offset |
 |
Shock | FOX Float Factory Kashima, 210x47,5 mm, Evol LV, Low Speed Rebound, 2 Position |
 |
Headset | Acros AZX-589 ZS56 blocklock 150º |
 |
Motor | DJI Avinox M1, 120Nm 1000W (Boost mode) / 105Nm 1000W, 5 assistance modes, 150rpm |
 |
Battery | DJI Avinox 800 Wh, 35,9V, IP56 |
 |
Display | DJI Avinox DP100, pantalla táctil OLED a todo color de 2 pulgadas, 800nits, 326ppi |
 |
Rear Derailleur | Sram XX Eagle AXS T-Type 12s |
 |
Shifters | Sram XX AXS controller |
 |
Crankset | 34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black |
 |
Cassette | Sram XX Eagle T-type 10-52T |
 |
Brakes | Shimano XTR BR-M9920, hydraulic disc 4-Piston, 203/203mm |
 |
Tires | Front: Pirelli Scorpion 29x2.4 MTB scM Trail ProWALL SmartGRIP / Rear: Pirelli Scorpion 29x2.4 MTB scR Trail ProWALL SmartGRIP |
 |
Hubs | DT Swiss HXC 1200 Carbon e-bike SP 29 CL 30 |
 |
Wheels | DT Swiss HXC 1200 Carbon e-bike SP 29 CL 30 |
 |
Handlebar | Full Integrated Carbon Handlebar / S, M size 60 x 760 mm / L, XL size 80 x 760 mm |
 |

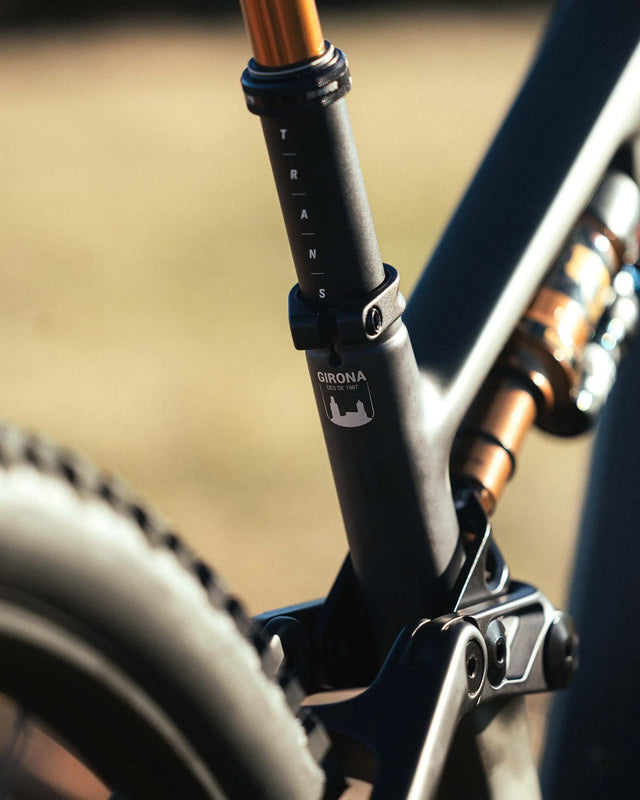

Seatpost | Fox Transfer Kashima SL 31,6mm telescopic seat post, remote adjustment S size 100 mm Drop / M, L size 125 mm Drop / L size 150 mm Drop |
 |
Seat | Fizik Ridon X1 |
|
* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice. |
Geometry REASON AIR CRB 00 (26)
