Free Yourself

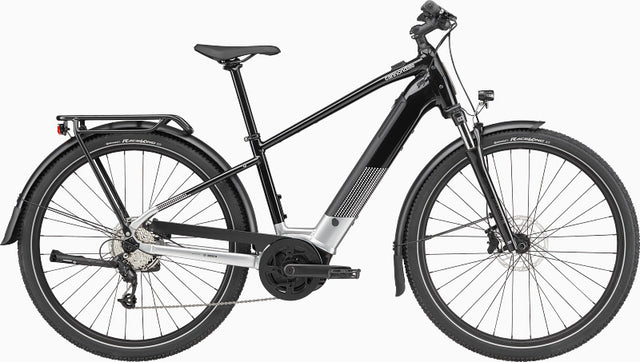

Inside this sporty commuter lies the wild and rugged heart of an explorer. With huge range, robust components and grippy mixed-surface tires, the all-new Tesoro X is built to get you to it all week, and away from it all on the weekend.
Where it thrives
City streets and adventurous backroads
What it's built for
Commuting, touring, exploring
Highlights
- Step-thru SmartForm C2 Alloy frame / bump-smoothing 63mm travel suspension fork
- Shimano CUES 9-speed shifting & hydraulic disc brakes
- Bosch Smart System - Active Line Plus drive-unit / 500Wh battery / Range: up to 113 km
Free Yourself
Off-road ready
With its stout 63mm travel fork, rattle-free fenders, high-capacity rear rack (Racktime 25kg compatible), bright front and rear lights, wide handlebars and low gearing – the new Tesoro X lives to load up and hit the road… any road, anywhere.
Urban steady
Potholes? Gravel? Tram tracks? No worries. All the features that make Tesoro X so capable off-road translate into a comfortable, confident experience on-road.
Fast and Fun
The upright sportive riding position and impressively precise handling make riding this e-bike a blast, whether you’re dicing it up with city traffic, or carving turns through the mountains, on-road or off.
Features
Intellimount Stem
Lets you mount your phone easily and securely on the stem with an SP-Connect adapter

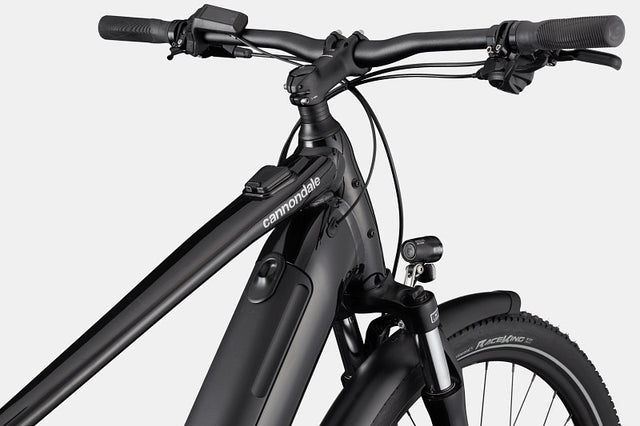

Convenient Charge Port
The charge port on the toptube lets you charge your battery on the bike, or you can easily remove it for charging indoors.
Bosch Smart System
The fully networked Bosch drive system can be controlled and customized via their eBike Flow app, and is regularly updated 'over the air' for a totally connected and personalized ride experience.
Specs
Details
-
Platform
-
Model NameTesoro X 3 StepThru
-
Model CodeC66363U
Frameset
-
FrameSmartForm C2 Alloy, step-thru, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
-
ForkSR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
-
HeadsetSemi-Integrated, Tapered; 1-1/8"-1-1/2"
E-System
-

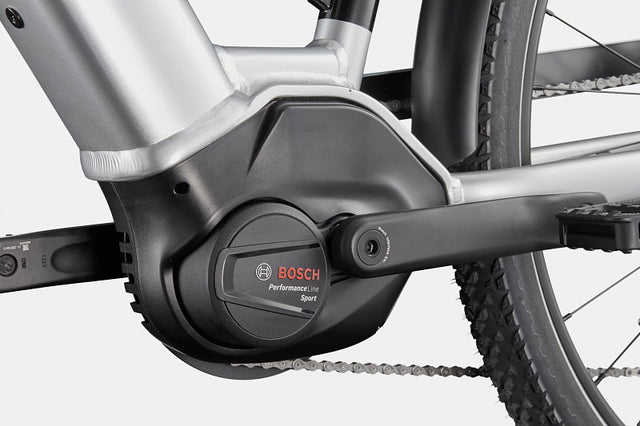

Drive UnitBosch Active Line Plus, Smart System
-
BatteryBosch PowerTube, 500Wh
-
ChargerBosch 2A
-

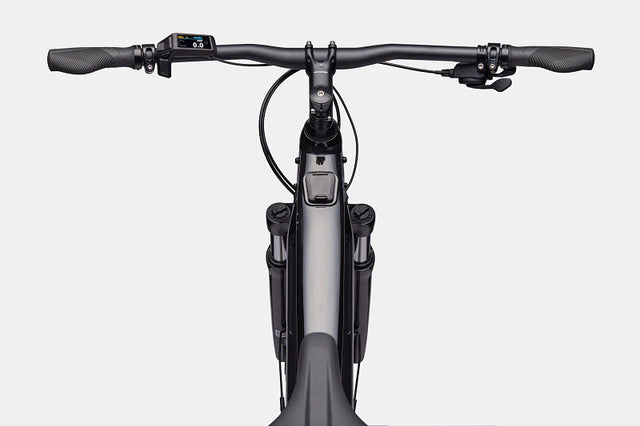

DisplayBosch Purion 200
Drivetrain
-

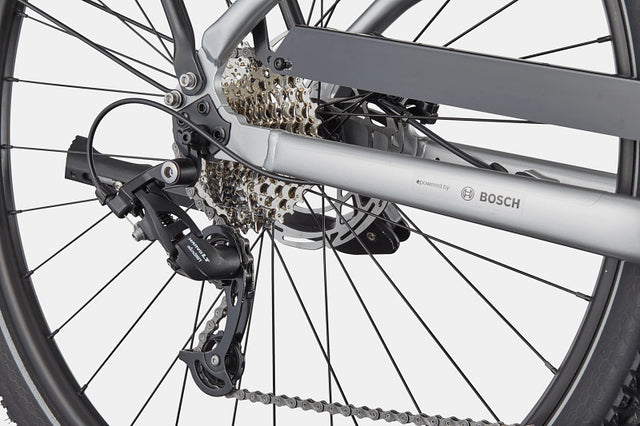

Rear DerailleurShimano CUES 4020
-
ShiftersShimano CUES 4000, 9-speed
-
ChainKMC E500
-
CrankFSA for Bosch
-
Rear CogsShimano CUES 400, 11-36, 9-speed
Brakes
-
BrakesShimano MT200 hydraulic disc, 180/180mm RT30 rotors
-
Brake LeversShimano MT200 hydraulic disc
Wheels
-
RimsAlloy, double wall, 32 hole, 25mm internal width, disc-specific
-
SpokesStainless Steel, 14g
-
Tire Size2.2
-
Wheel Size29
-
Hubs(F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano UR600, 135QR
-
TiresContinental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG)
Components
-
HandlebarCannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
-
StemCannondale 3, Alloy, 31.8mm clamp
-
GripsCannondale Ergo Fitness Dual Density, Lock-on
-

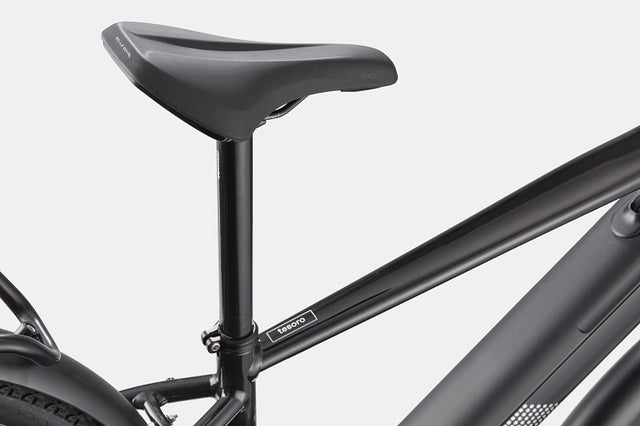

SaddleSelle Royal Vivo Active
-
SeatpostCannondale 3, 6061 Alloy, 31.6
Extra
-

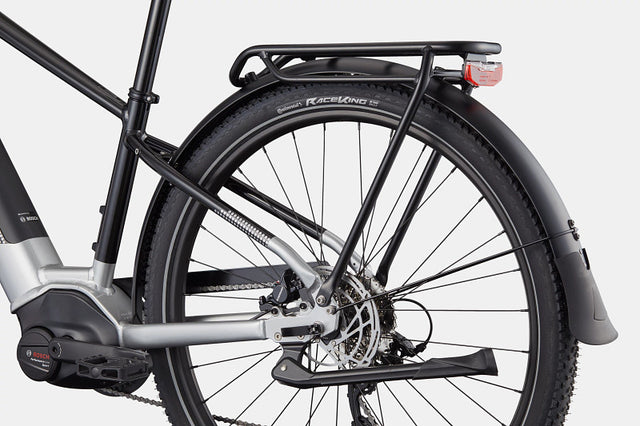

Extra 1Integrated headtube reflector, Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fender
