Two-piece floating rotor

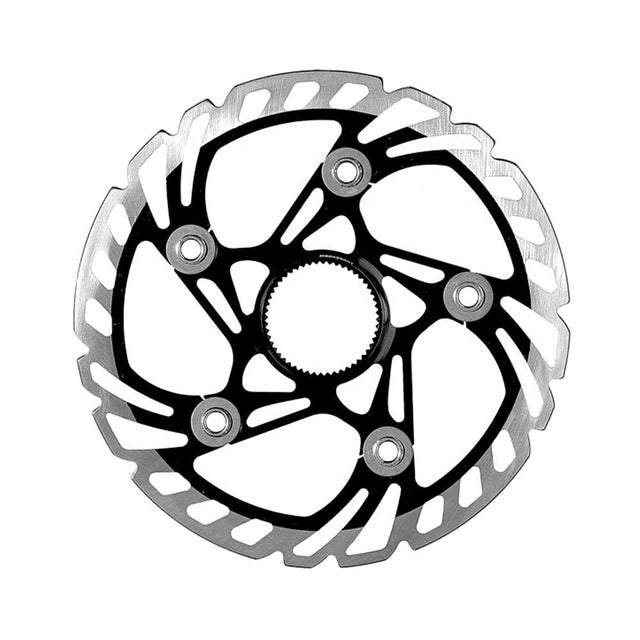

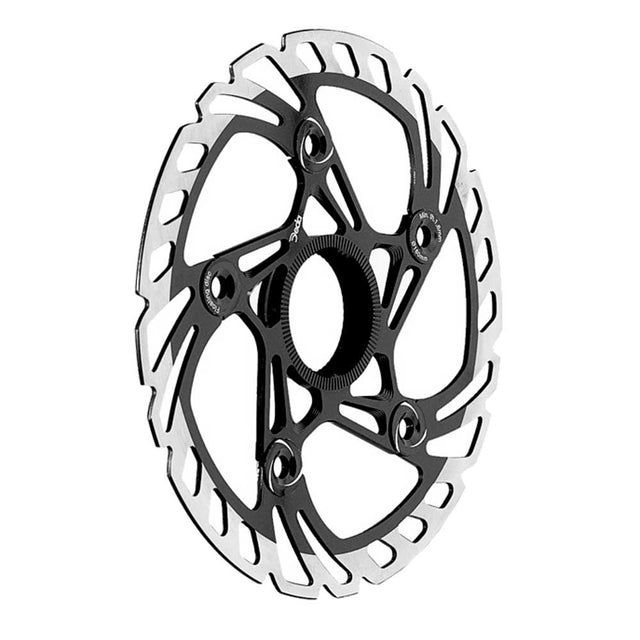

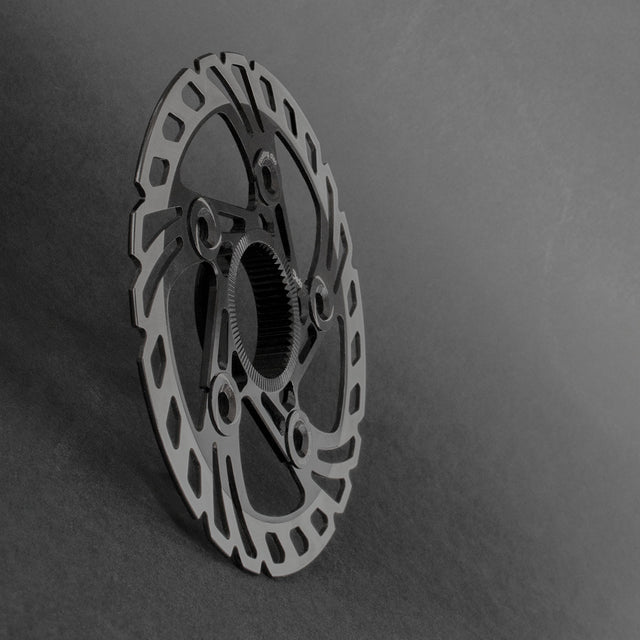

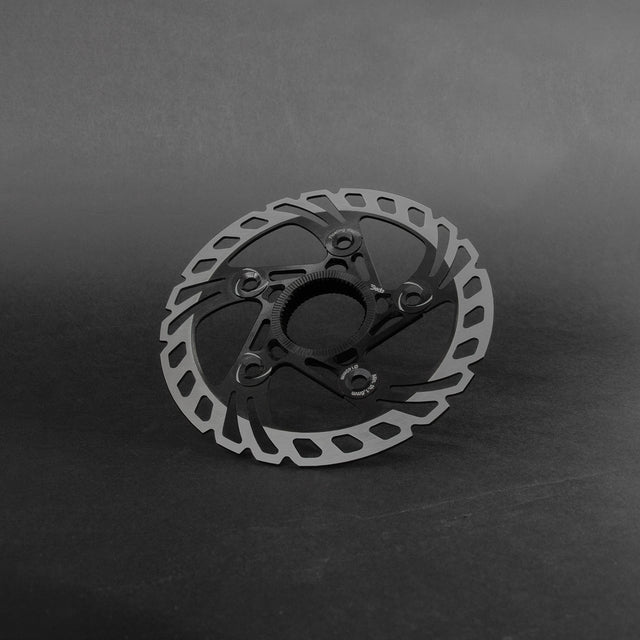

Deda Centre Lock Disc Brake Rotor
A premium two-piece floating rotor with a stainless steel braking track and 7075 aluminium spider, developed with FEM analysis and over a year of testing with professional riders.
Highlights
Why we rate it
Alloy heat sink
The aluminium spider draws heat away, and the floating track can expand under hard braking without permanent deformation.

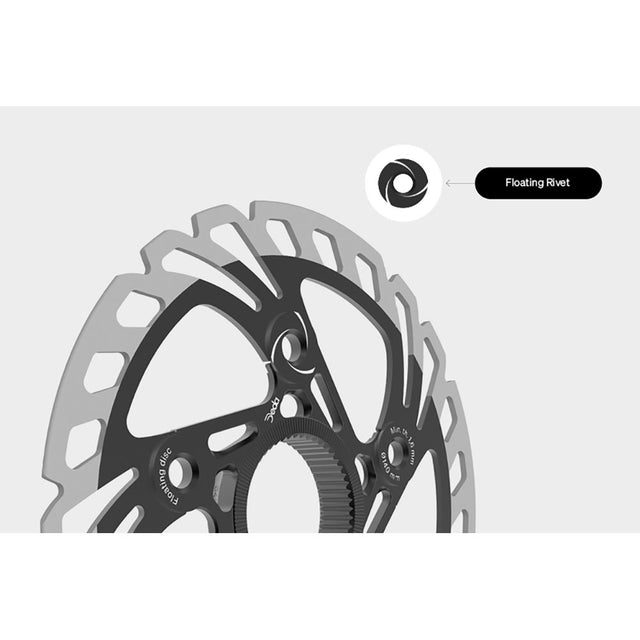

Floating design
Five floating rivets with conical spring washers let the disc self-align with the pads for consistent, powerful braking and less overheating.
Tested hard
Lab testing took the rotor past 500 degrees before any deformation appeared, after a year of road testing in all weathers.
Rounded edges
A rounded-edge profile on the braking track.
Fitting
Compatibility
Fits hubs with a Shimano Centre Lock interface; replace once the braking track wears to 1.6mm. Check your frame and fork are set up for 140mm rotors.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Construction
- Two-piece floating
- Braking track
- Stainless steel
- Spider
- 7075 aluminium
- Rivets
- 5 floating, with conical spring washers
- Thickness
- 1.8mm (minimum 1.6mm)
- Mount
- Shimano Centre Lock
- Diameter
- 140mm
- Weight
- 110g (140mm)
In the box
- Includes
- Deda Centre Lock disc brake rotor
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
