Integrated aero cockpit

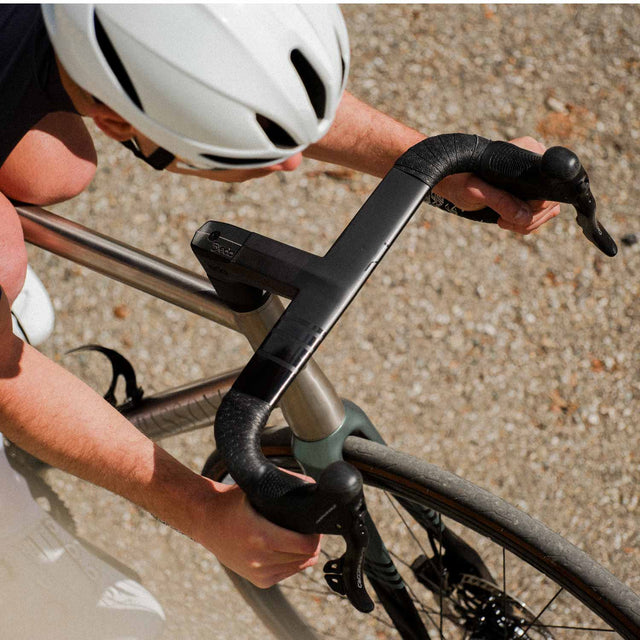

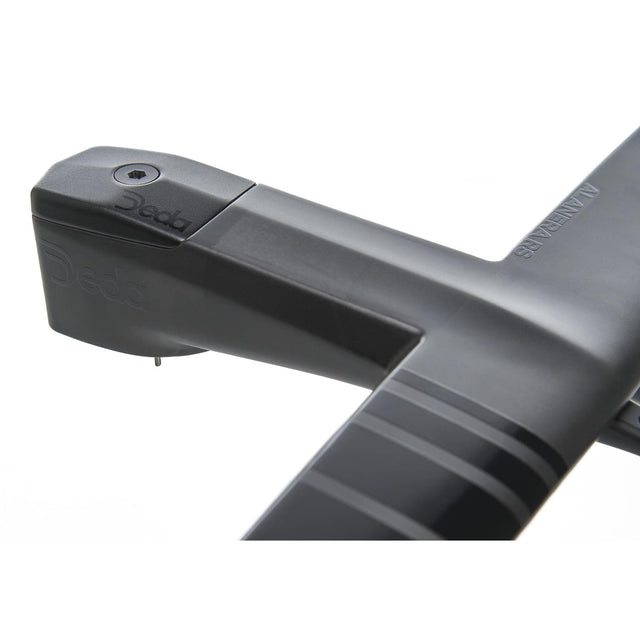

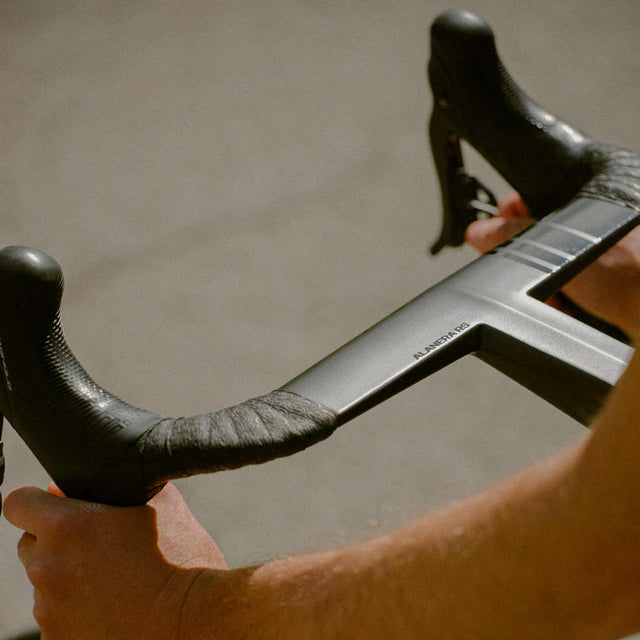

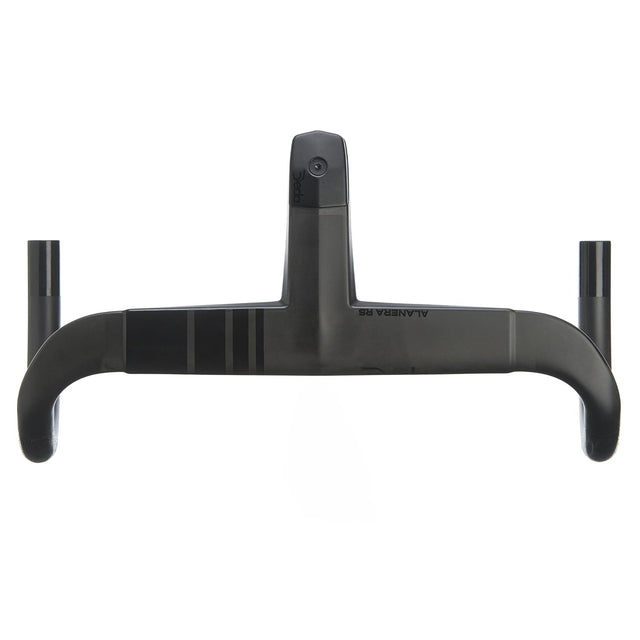

Deda Alanera RS Integrated Carbon Handlebar
Deda's one-piece carbon bar and stem, with fully hidden cabling, a compact RHM-EVO bend and a host of integration touches for a clean, fast front end.
Highlights
Why we rate it
Race-bred integration
The Alanera line descends from Deda's first integrated bars to win at the Tour de France, and the RS refines that formula in monocoque UD/3K carbon.
Fully internal routing
DCR routing hides both brake hoses and the electronic shifting wire, and the split headset spacers let you adjust stack height without disconnecting anything.

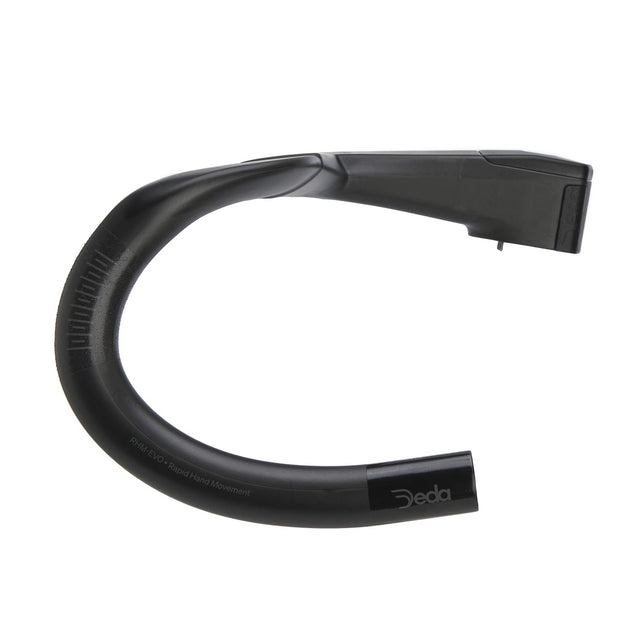

Compact RHM-EVO shape
75mm reach and 120mm drop keep the drops usable for longer, while a 6° flare adds control and forearm clearance.
Finishing details
Aero top cap, spacers and DCR top cover are supplied, alongside an out-front computer mount for Garmin, Wahoo, Bryton and GoPro.
Authenticity built in
An RFID tag lets you verify the bar is genuine and activate the warranty.
Fitting
Compatibility
Requires full internal routing with hydraulic brakes and electronic shifting, on a D-shape fork or DCR-compatible frame with a 1 1/8in steerer. Some frames (including certain Bottecchia, Dare, Merida, Standert, Bianchi, Focus and Rose models) need a specific compression ring, and Ridley and Colnago V3 (MY23) need a separate D-shape top cap; check before ordering.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Shape
- RHM-EVO
- Material
- Monocoque UD/3K carbon
- Hardware
- Titanium, black PVD
- Steerer
- 1 1/8in (28.6mm)
- Stem angle
- 82°
- Clamp height
- 43.5mm
- Reach
- 75mm
- Drop
- 120mm
- Flare
- 6° (+2.5cm)
- Width
- 38, 40, 42, 44cm (outside to outside)
- Stem length
- 80 to 140mm
- Cable routing
- Full internal only (2 brake hoses and electronic shifting wire)
- Weight
- 340g (110mm x 42cm)
In the box
- Includes
- Alanera RS handlebar
- Includes
- Aero top cap
- Includes
- Headset spacers (46mm and 56mm head tube)
- Includes
- DCR top cover
- Includes
- Computer mount
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
