Integrated-routing alloy stem

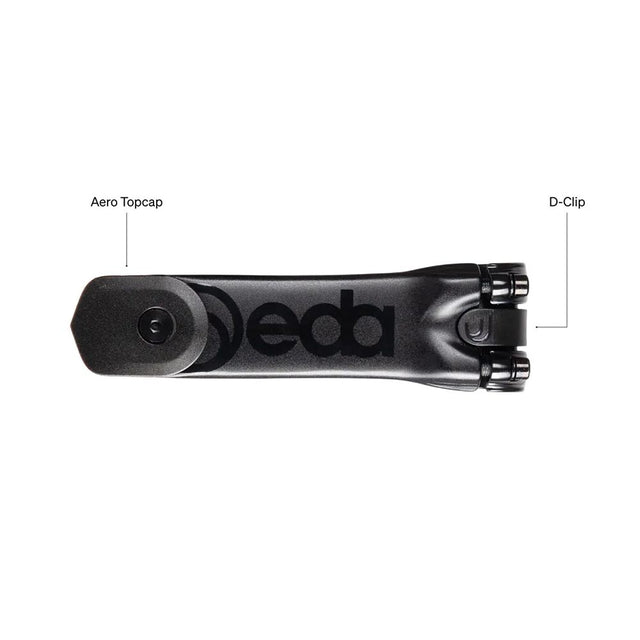

Deda Superbox DCR Stem
Developed from Deda's Superzero stem, the Superbox lets you route cables fully internally through a DCR handlebar and stem, or semi-internally through the stem alone.
Highlights
Why we rate it
Two routing options
Choose fully internal DCR routing through bar and stem, or semi-internal S-DCR routing through the stem only.
Pairs with DCR bars
Works with Deda's Superzero DCR road bar, Gera DCR gravel bar and Alanera DCR one-piece cockpit.
Complete fitting kit

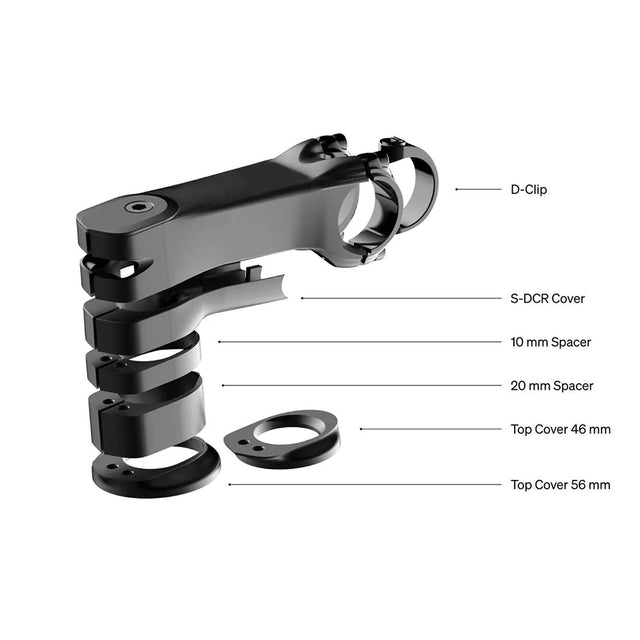

Comes with an integrated top cap, headset spacers and top covers for 46mm and 56mm head tubes.
Fitting
Compatibility
Fits 1-1/8in steerers and 31.7mm bars. If you run cables in the full DCR configuration, the fork must have a D-shaped steerer tube.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Material
- 6061 aluminium
- Angle
- 82°
- Handlebar clamp
- 31.7mm
- Steerer
- 1-1/8in
- Clamp height
- 31mm (40mm including cover)
- Weight
- 175g (110mm)
- Routing
- DCR or S-DCR
- Length
- 130mm
- Finish
- Polish on Black
In the box
- Includes
- Superbox DCR stem
- Includes
- Integrated top cap
- Includes
- Headset spacers
- Includes
- Top covers for 46mm and 56mm head tubes
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
