DCR integrated road stem

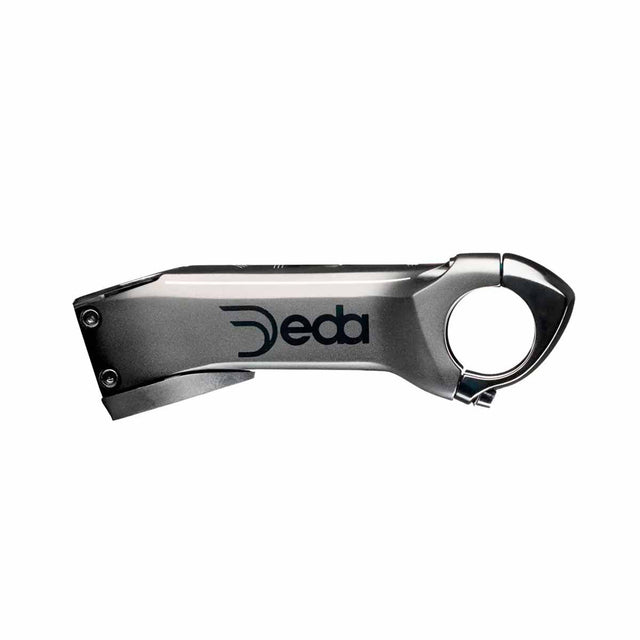

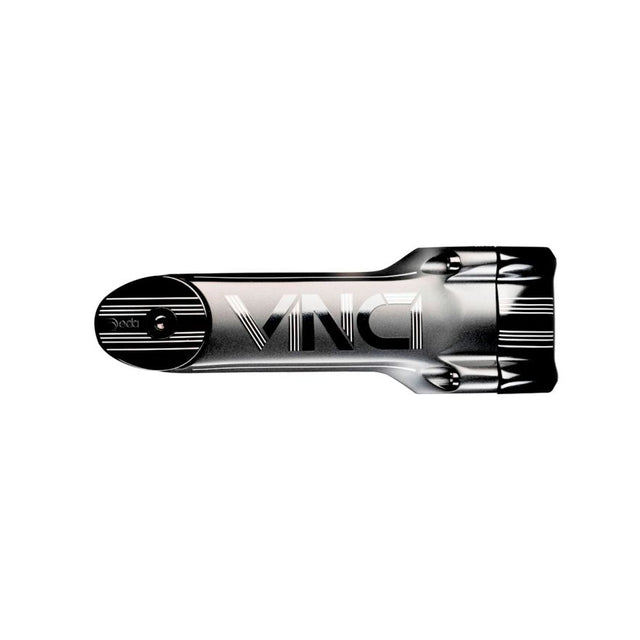

Deda Vinci DCR Stem
Deda's first stem designed for fully internal cable routing with DCR handlebars, using a flat, 3D-forged 2014 alloy body and split spacers that make cockpit changes far less of a chore.
Highlights
Why we rate it
Fully internal routing

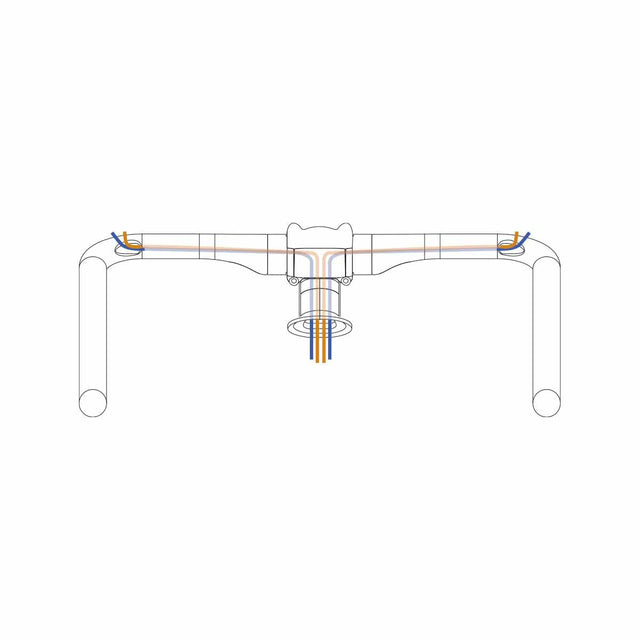

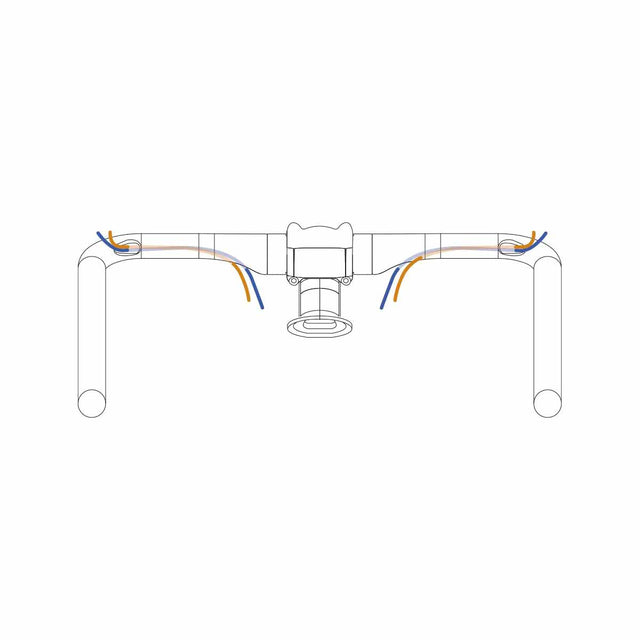

Designed around Deda's DCR system, routing up to four cables from the bar, through the stem and down past the headset bearing into the frame.
Split spacers
Slotted nylon spacers have channels for the housings and can be added or removed without disconnecting the cables.
Forged and flat
3D forging and a flat profile help the front end look clean and cut through the air.
Two steerer sizes
Made for 1-1/4in steerers, with an alloy sleeve included so it also fits 1-1/8in forks.
Fitting
Compatibility

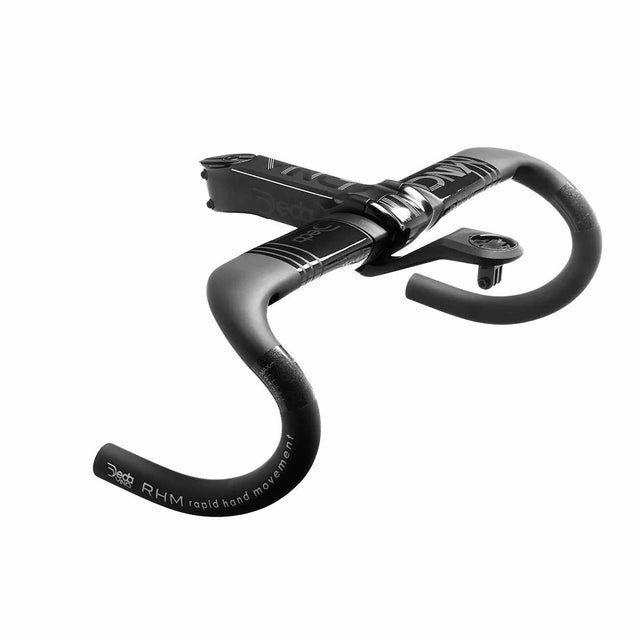

Requires a Deda DCR headset; DCR works with a tapered steerer of 1-1/8in upper diameter but needs a 52mm upper bearing outside diameter. Pair with a DCR handlebar such as the Deda Vinci for fully hidden cables. Optional top cover for 52mm head tubes and computer/GoPro mount sold separately.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Material
- 2014 aluminium, 3D forged
- Angle
- 73°
- Handlebar clamp
- 31.7mm
- Steerer
- 1-1/4in (31.75mm); 1-1/8in adapter included
- Clamp height
- 40mm (including upper headset spacer)
- Bolts
- Black steel
- Weight
- 260g (110mm)
- Routing
- Full internal, up to 4 cables
- Finish
- Polish on Black (POB)
In the box
- Includes
- Vinci stem
- Includes
- Aero top cap
- Includes
- Headset spacers
- Includes
- Top covers for 46mm and 56mm head tubes
- Includes
- Alloy sleeve for 1-1/8in steerers
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
