Orbea Orca
Orca OMR Frameset
A racing frameset from Orbea's Orca range.
Colours
Colour options
Available in 4 factory colours. Orbea MyO custom colours are available on request – ask in store.
Iris White (Gloss) - Lilac (Matt)

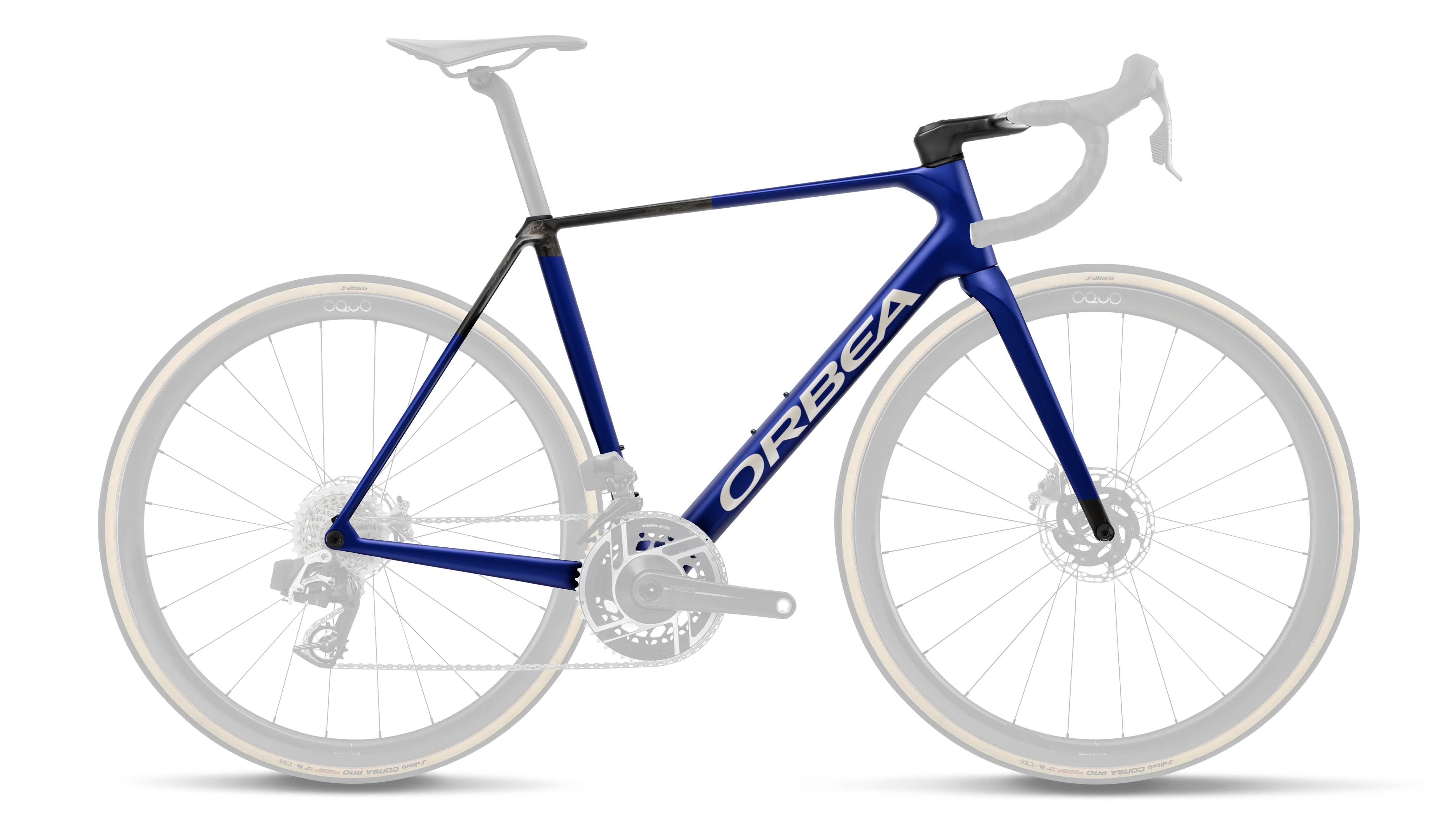

Cobalt Blue - Carbon Raw (Matt)

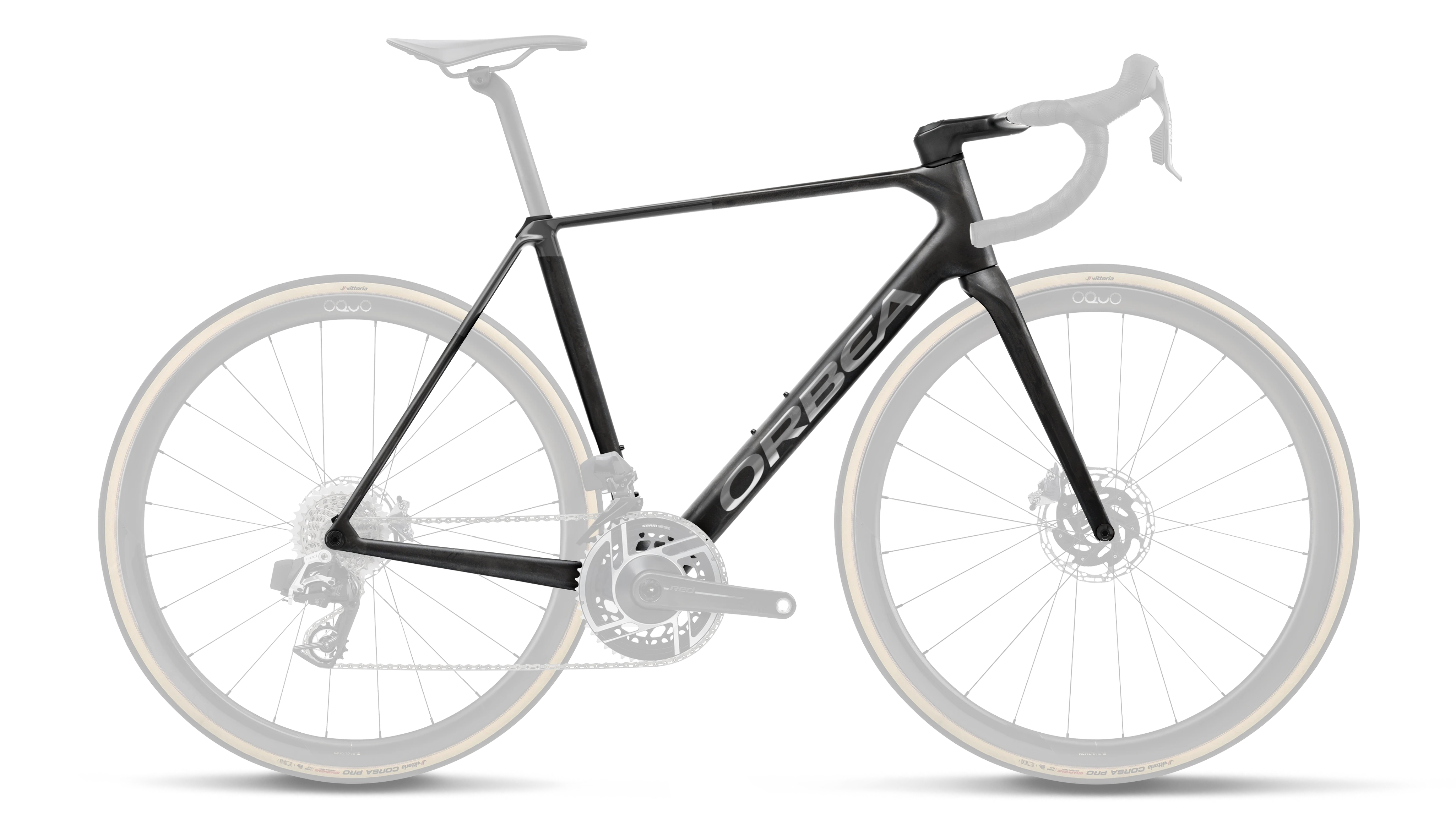

Diamond Carbon View (Matt) - Titan Grey (Gloss)
Escape Green - Carbon View Matt
Orbea Orca
Praise the light
Orca is Orbea's lightweight carbon climbing bike. Orbea quotes 6.7kg for the M10i LTD build, and says the frame is light where it can be and stiff where it needs to be.
Pure light
Weight comes down through attention to detail. Orbea quotes about 745g for an OMX frame and 1,030g for an OMR frame, with 15g of coating, 25g of paint and 40g of hardware.
OMX carbon
Orbea's lightest, stiffest layup, used only on its top performance racing frames.
OMR carbon
The second level of carbon: much of the rigidity and strength of OMX for riders who do not need the ultimate in low weight.
Minimal design
A minimalist seat clamp and derailleur hangers save weight and look clean.
Focus on the shapes
Tube junctions are shaped to remove sharp corners where excess epoxy would collect, cutting weight.
Fewer overlaps
The OMX frame uses fewer carbon pieces and fewer overlaps, which Orbea says saves almost 300g with no change in rigidity.
Aero in the details
The fork and seatpost clamp are shaped to reduce drag without adding weight.
Components
Lightweight components
Parts are chosen for the way they ride as well as their weight.
OC SH-RA10 integrated cockpit
Light, aerodynamic and fully internally routed. Orbea quotes 313g.
OC RP11 handlebar
A stiff, strong carbon bar. Orbea quotes 190g.
OQUO RA57 LTD wheels
A 57mm carbon rim for an aero, lightweight balance, with the Q10 hub.
OQUO RP45 LTD wheels
A 45mm carbon rim balancing aerodynamics and weight.
OQUO RP35 LTD wheels
A 35mm carbon rim, the lightest and stiffest option for climbers.
OQUO Q10 hub
45-tooth, 8° engagement ratchet with ceramic treatment, available on selected LTD wheelsets.
Stiffness and ride
Stiff where it counts, light where it matters
Orbea set a target rigidity first, then made the frame as light as possible without going below it.
Size-tuned stiffness
The carbon layup changes with frame size so every Orca feels the same to ride.
Powerspine
The lower spine of the frame carries most of the twisting and lateral loads and passes power to the rear wheel.
Compliant but efficient
Slim round tubes give compliance on rough roads while the Powerspine keeps pedalling efficient.
Versatile tyre clearance
Clearance for 32C tyres.
Balanced handling
A shorter wheelbase for responsiveness, size-specific fork trail for control, and racing ergonomics.
Base configuration highlights
Base configuration
Orca OMR Frameset build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Orca carbon OMR 2026, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
- Fork
- Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
Cockpit
- Stem
- OC Road Performance RP10, -8º
Wheels & tyres
- Front hub
- Orbea Thru Axle 12x100mm M12x2 P1 Lite
- Rear hub
- Orbea Thru Axle 12x142mm M12x2 P1 Lite
Accessories
- Storage
- OC Toolbox TB02PP
- Side bag
- OC Toolbox TB02PP
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
