Spare freehub body
Deda DB 4-Pawl Freehub Body
A replacement 4-pawl freehub body for Deda's disc brake road and gravel wheels. Change cassette standard or renew a worn body without replacing the hub.
Highlights
Why we rate it
4-pawl engagement
Built for the four-pawl freehub used in Deda's disc brake wheel hubs.
Road and gravel wheels
Fits a wide spread of Deda disc wheels, from the SL carbon range to the Zero2 DB and Gera gravel wheels.
Four standards
Available for Shimano, SRAM XDR 12-speed, Campagnolo 9-12 speed and Campagnolo 13-speed cassettes.
Genuine spare
A Deda part, so it drops straight into the matching hub.
Fitting
Compatibility
For Deda SL45DB, SL62DB, SL30TDB, SL45TDB, SL88TDB, Zero2 DB, Zero2 DB LTD, Gera Carbon and Gera Alloy wheels. When converting to a different freehub standard you may also need the matching axle end cap. Deda's RS and SL 20T ratchet wheels use a different body.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Engagement
- 4 pawls
- Compatible wheels
- Deda SL45DB, SL62DB, SL30TDB, SL45TDB, SL88TDB, Zero2 DB, Zero2 DB LTD, Gera Carbon, Gera Alloy
- Shimano HG

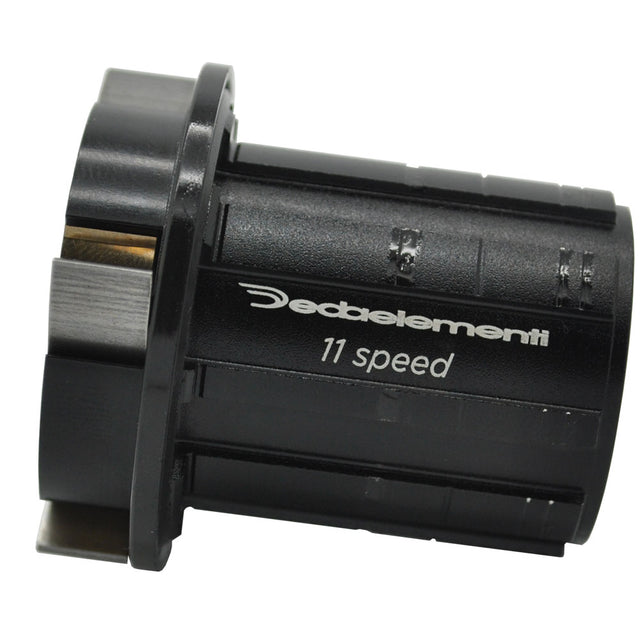

- DWS34 - Shimano 11-speed, or 9/10-speed with spacers
- SRAM XDR
- DWS37 - SRAM 12-speed road
- Campagnolo

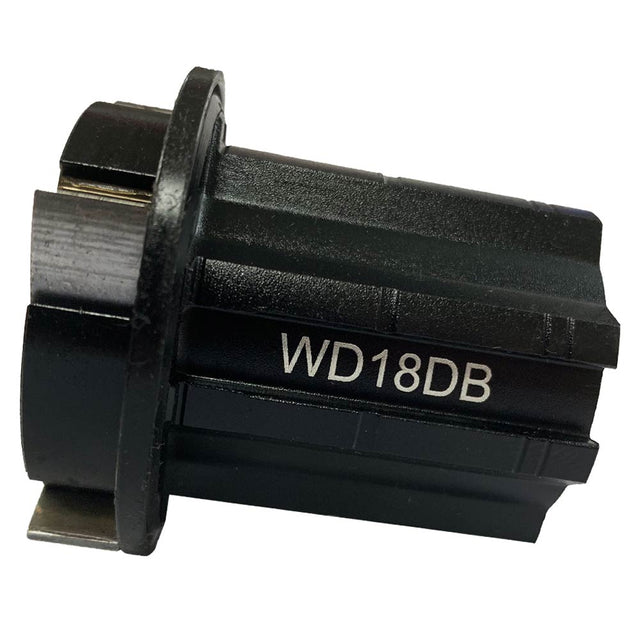

- DWS34A - Campagnolo 9/10/11/12-speed
- Campagnolo 13-speed

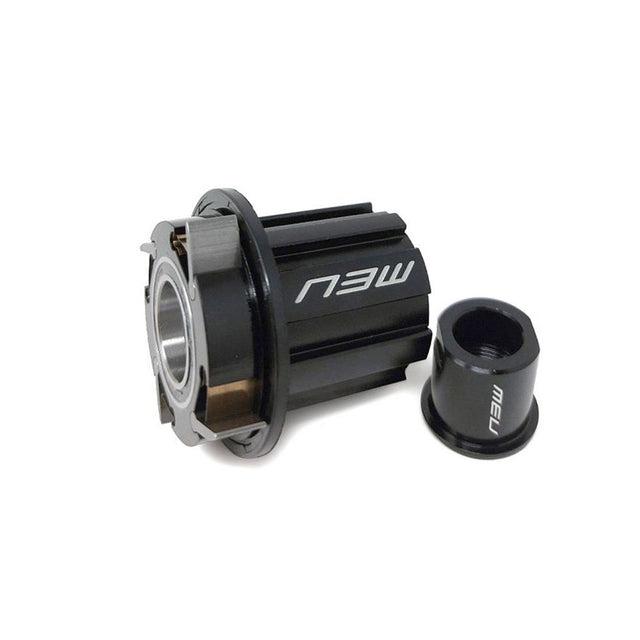

- DWS38 - Campagnolo 13-speed
- Axle end caps (sold separately)
- WD75DB12: Shimano 10-11, SRAM XDR 12, Campagnolo 12; WD75DB12N3W: Campagnolo 13; WD75DBQR: standard QR
In the box
- Includes
- Freehub body
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
