Integrated-routing alloy stem

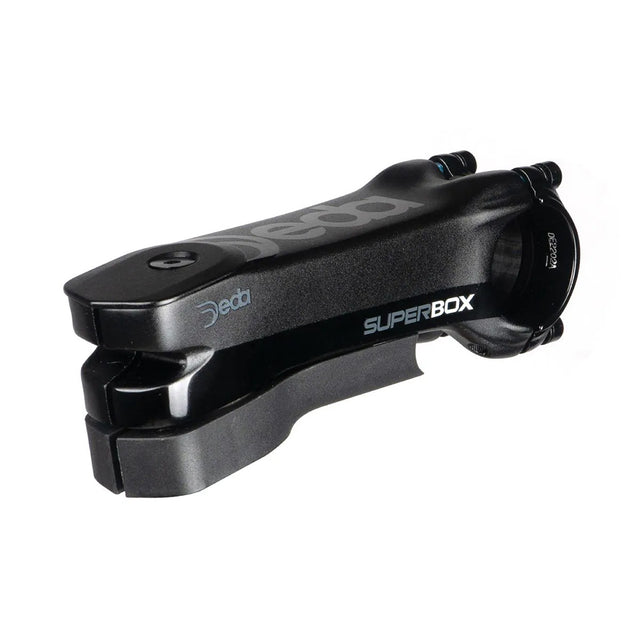

Deda Superbox V2 DCR Stem
The second-generation Superbox is a 6061 alloy stem built for tidy cockpits, supporting DCR, S-DCR, direct and external cable routing and fitting both 46mm and 56mm upper head tubes.
Highlights
Why we rate it
Four routing layouts
Run cables fully internal with DCR (electronic groupsets, up to three cables), semi-integrated with S-DCR (any groupset, up to four cables), direct or fully external.
RS spacer system
Uses the updated RS spacers shared with the Alanera RS cockpit, plus an integrated top cap and top covers for neat stack adjustment.
Fits two head tube sizes
Top covers for 46mm (1-1/8in) and 56mm (1.5in) upper head tubes are included, so it suits a wide range of frames.
Long-lasting hardware
Black steel bolts with a GST coating resist corrosion and scratching.
Fitting
Compatibility
Fits 1-1/8in steerers and 31.7mm bars. Some frames need an extra Deda part (sold separately): a plug spacer for Colnago C64 Disc and V3RS Disc, an insert for BMC, Cervélo and Factor, a specific compression ring for frames such as Merida Scultura or Bottecchia Emme4, or the D-shape top cap (HDSBXTP-4DX) for Ridley and Colnago V3 (MY23) internal routing.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Material
- 6061 aluminium
- Angle
- 82°
- Handlebar clamp
- 31.7mm
- Steerer
- 1-1/8in (28.6mm)
- Clamp height
- 32mm (47mm with top cover)
- Bolts
- Black steel, GST coated
- Weight
- 175g (110mm)
- Routing
- DCR, S-DCR, Direct, External
- Head tube top covers
- 46mm and 56mm
- Finish
- Polish on Black (POB)
In the box
- Includes
- Superbox V2 stem
- Includes
- Integrated top cap
- Includes
- Headset spacers
- Includes
- Top covers for 46mm and 56mm head tubes
- Includes
- D-clip insert
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
