Orbea Kemen ADV
Kemen ADV 20
An electric all terrain bike powered by the Shimano EP600 motor and the Orbea Internal 630Wh battery.
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

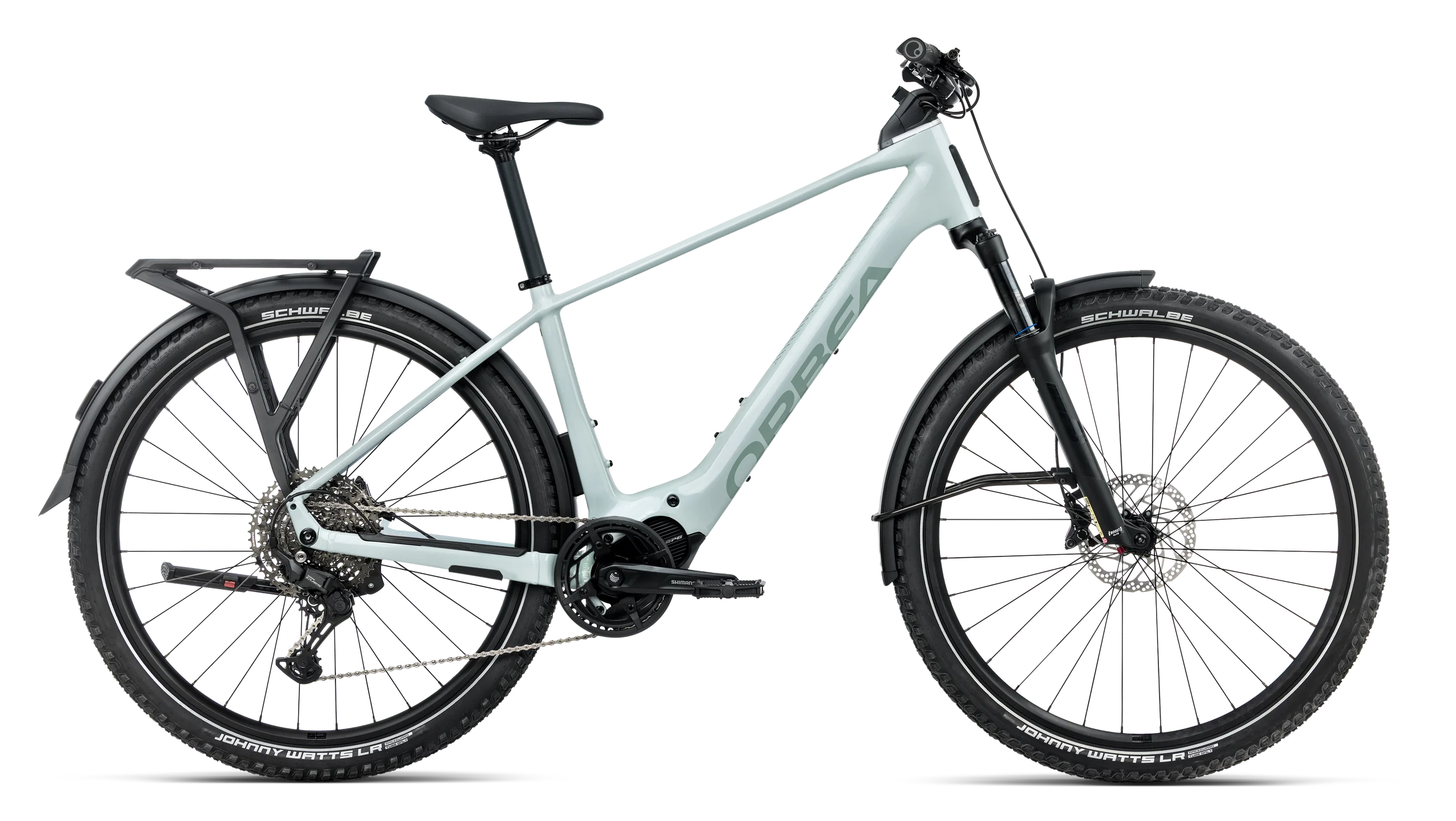

Frozen Concrete- Blue Stone (Gloss)

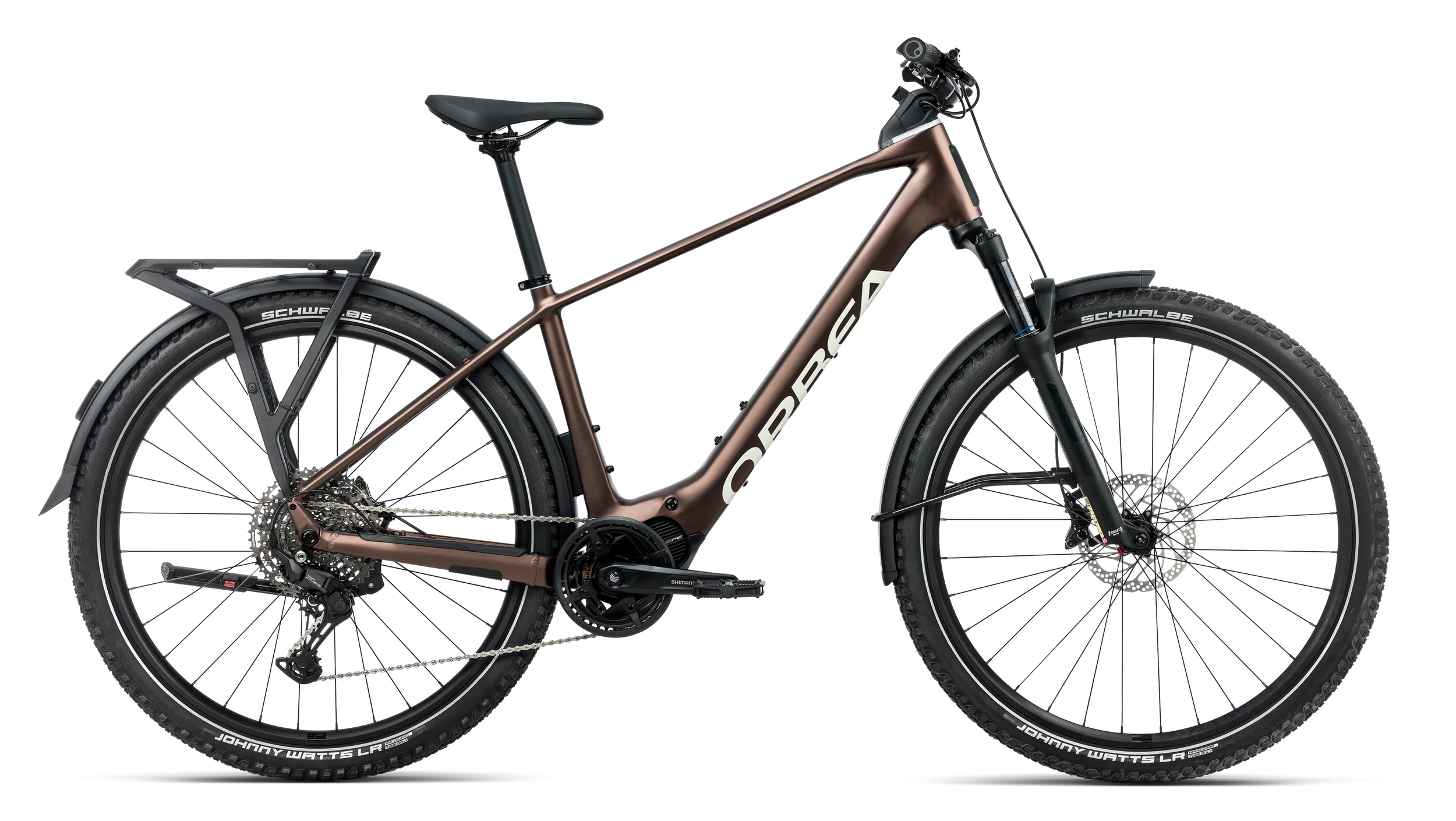

Metallic Rust(Matt) - Ivory White (Gloss)

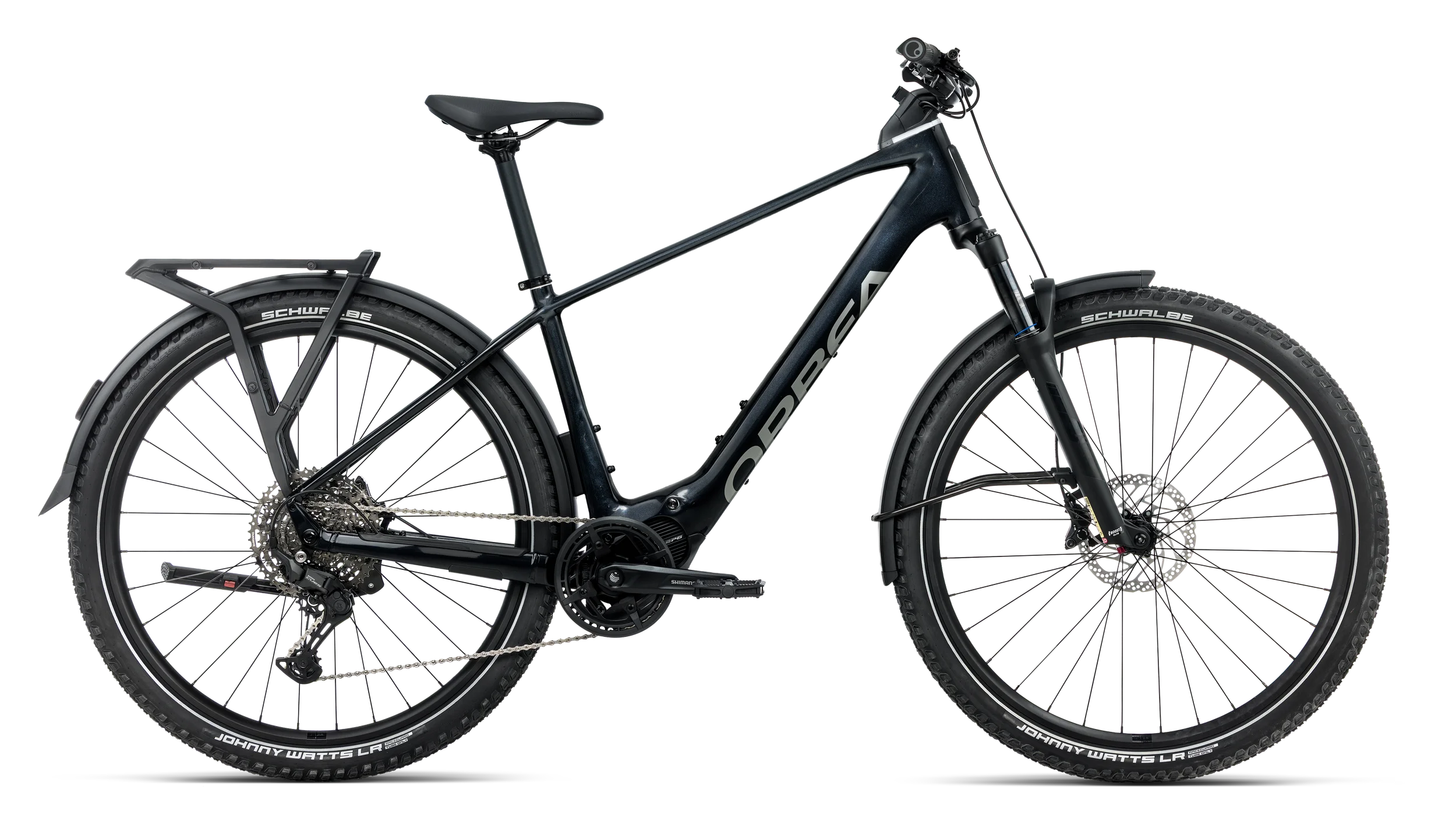

Fuel Black - Titan Grey (Gloss)
Orbea Kemen ADV
Escape the everyday
Kemen ADV is Orbea's equipped adventure e-bike, with a suspension fork, a Shimano EP6 motor and a large integrated battery for long days and loaded rides.
Controlled in any situation
Built to be ready wherever the adventure goes, with a suspension fork and a dropper-ready, comfort-focused geometry.
Powerful EP6 motor
The Shimano EP motor gives 85Nm of assistance for steep climbs and heavy loads, with assistance modes from minimal effort to doing most of the work yourself.
Integrated battery
The battery sits in the downtube. The 10 and 20 builds have 630Wh and the 30 has 540Wh. A 252Wh range extender slots into the bottle cage for extra charge.
Assist switch
A handlebar remote changes the assistance level, with LEDs showing charge and mode.
Built-in lighting
Orbea says every Kemen has an intelligent integrated lighting system that switches on automatically.
Base configuration highlights
Base configuration
Kemen ADV 20 build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Kemen Top bar 2026, Hydroformed Alloy 6061, High Polished, OLD 148, Belt drive compatible, Orbea cockpit and equipment ecosystem, w/ Kickstand, Trailer compatible.
- Fork
- SR Suntour XCR34 100mm Air Q15x110
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
E-bike system
- Motor
- Shimano EP600
- Battery
- Orbea Internal 630Wh
- Display
- Shimano EN500
- Charger
- Orbea 2.Generation eBike Smart charger 42V/2-4A
Drivetrain
- Crank
- Shimano Steps EM600
- Shifters
- Shimano Cues SL-U6000
- Cassette
- Shimano CS-LG400 11-50t 11-Speed
- Chain
- KMC eGlide
- Rear derailleur
- Shimano Cues U6000 GS Shadow
- Pedals
- VP-892 Black with reflectors
Cockpit
- Handlebar
- Orbea Urban, Integ. light, Backsweep 9, Rise 50, Width 720
Brakes
- Brakes
- Shimano MT420 Hydraulic Disc
Wheels & tyres
- Wheels
- Alloy, 26c, 32H
- Tyres
- Schwalbe Johnny Watts LR, 60-622, Reflective Tape
Components
- Saddle
- Selle Royal Vivo Ergo
- Seatpost
- SP03, Alloy, 31.6mm, Setback 0
Accessories
- Mudguards
- Curana Apollo Orbit 70mm
- Front light
- Supernova Starstream Pure, Low Beam
- Front light 2
- Orbea integrated, USB-C charging point
- Rear light
- Supernova TL3 Z
- Rear carrier
- Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
- Kickstand
- Massload rear adjustable
- Computer mount
- Smartphone mount SP Connect SPC+
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
