Orbea Kemen Tour
Kemen Tour 10
An electric touring bike powered by the Shimano EP600 motor and the Orbea Internal 630Wh battery.
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

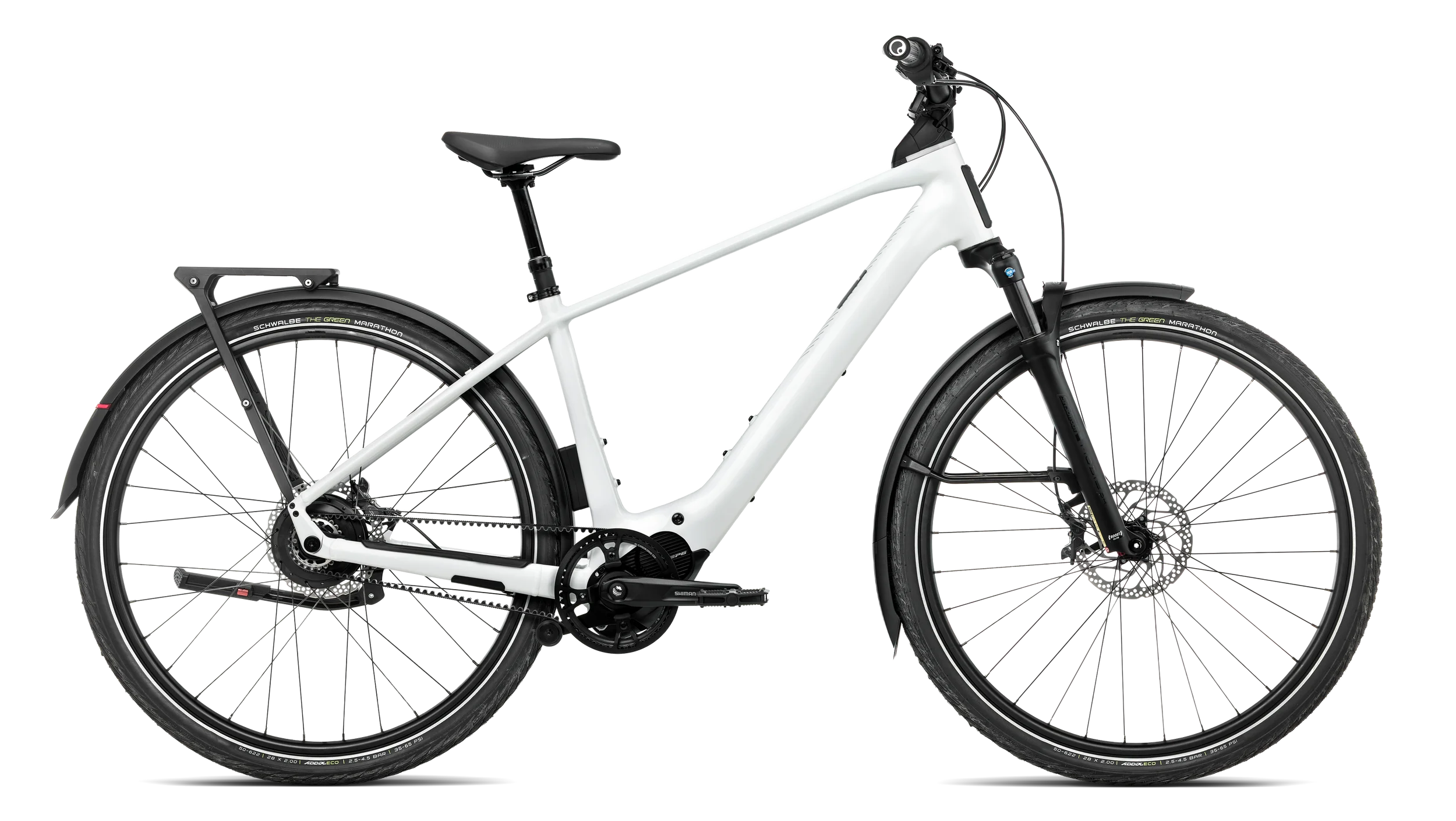

White Chic (Gloss)

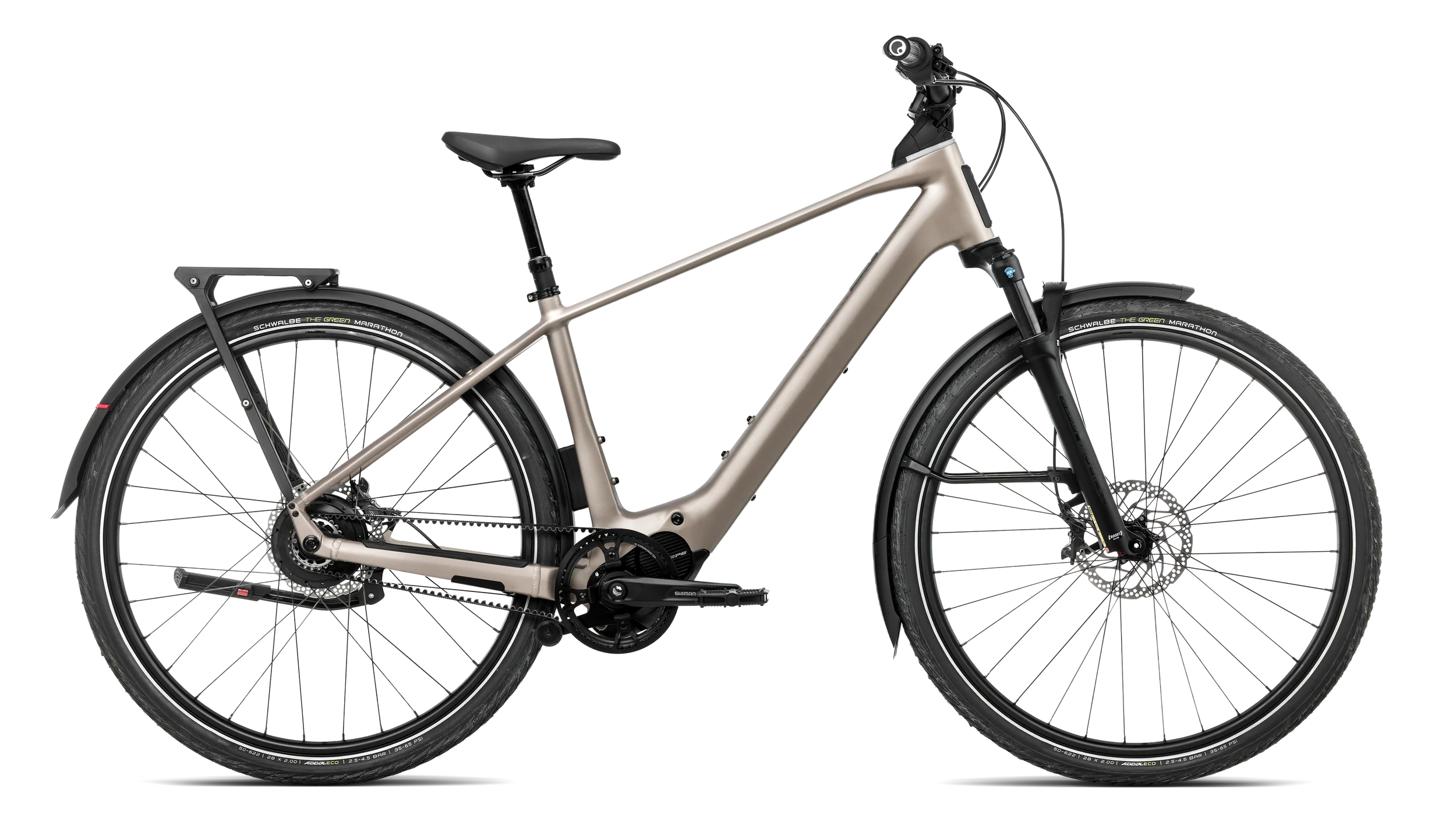

Nickel (Matt)

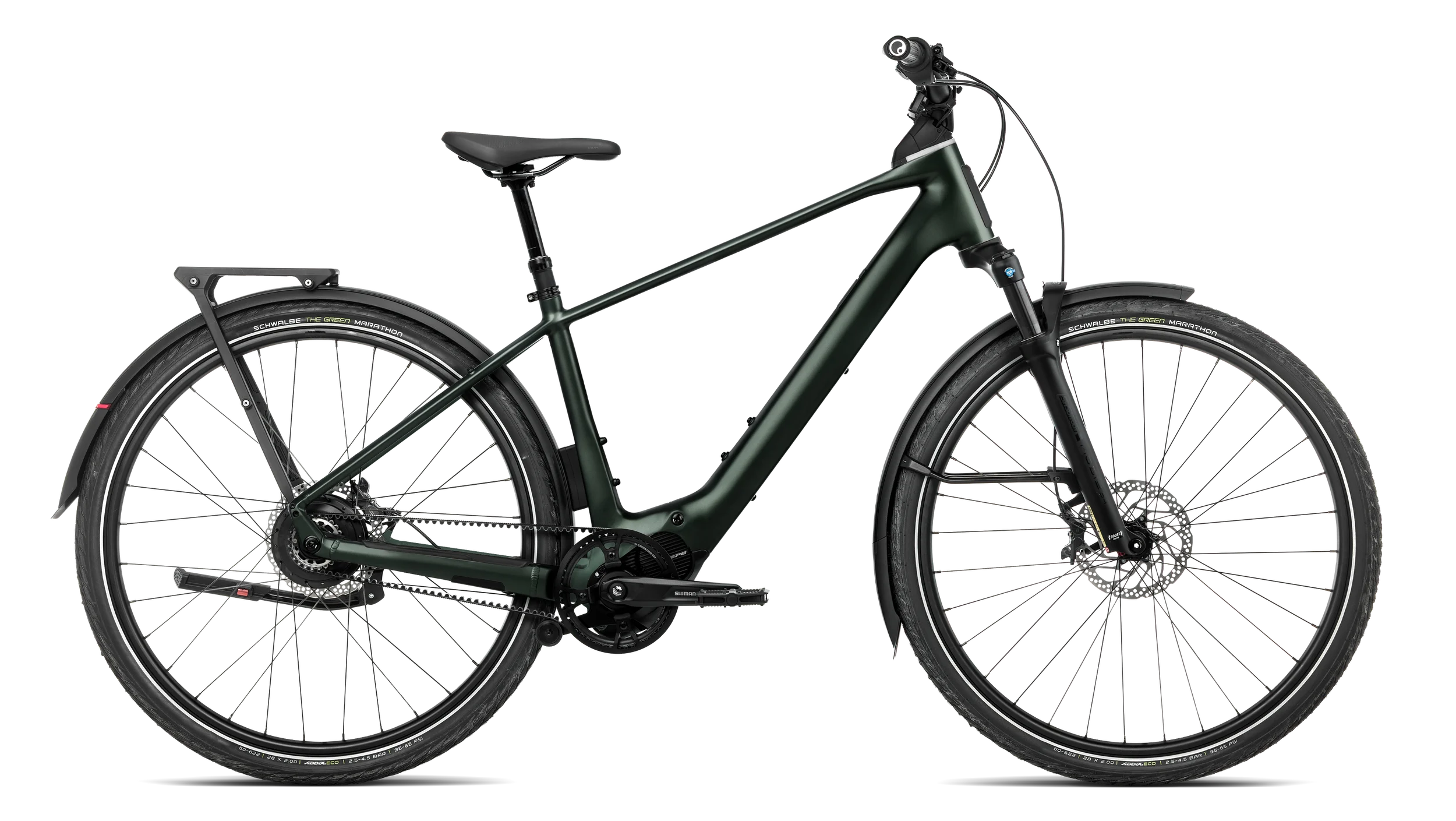

Racing Green (Matt)
Orbea Kemen Tour
Choose to be free
Kemen Tour is Orbea's equipped city e-bike, built for speed, comfort and versatility with a suspension fork, a Shimano EP6 motor and a large integrated battery.
Powerful EP6 motor
The Shimano EP motor offers 85Nm of assistance for a worry-free commute, with different assistance modes to save effort or battery.
Battery and range
The battery is integrated into the frame: 630Wh on the 10 and 20, 540Wh on the 30. A 252Wh range extender slots into the bottle cage.
Comfort
A suspension fork and a suspension seatpost keep you comfortable on rougher surfaces.
Assist switch
A handlebar remote controls the assistance level, with LEDs showing charge and mode.
Lighting and accessories
An integrated lighting system switches on automatically, and a wide range of accessories is available for loads and daily use.
Base configuration highlights
Base configuration
Kemen Tour 10 build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Kemen Top bar 2026, Hydroformed Alloy 6061, High Polished, OLD 148, Belt drive compatible, Orbea cockpit and equipment ecosystem, w/ Kickstand, Trailer compatible.
- Fork
- SR Suntour Mobie34 80mm Air Q15x110
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
E-bike system
- Motor
- Shimano EP600
- Battery
- Orbea Internal 630Wh
- Display
- Shimano EN600
- Remote / controller
- EN600-L
- Charger
- Orbea 2.Generation eBike Smart charger 42V/2-4A
Drivetrain
- Crank
- Shimano Steps EM600
- Shifters
- Enviolo Twist Pro manual controller
- Cassette
- Gates CDX 24t for Enviolo
- Chain
- Gates CDX Belt
- Chain guard
- Gates CDS
- Pedals
- VP-892 Black with reflectors
Cockpit
- Handlebar
- Orbea Urban, Integ. light, Backsweep 9, Rise 50, Width 720
Brakes
- Brakes
- Shimano MT200 Hydraulic Disc
Wheels & tyres
- Wheels
- Alloy, 25c, 32H
- Tyres
- Schwalbe Marathon, 50-622, Reflective Tape
Components
- Saddle
- Selle Royal Vivo Ergo
- Seatpost remote
- Shimano SL-MT500
Accessories
- Mudguards
- Curana Apollo Orbit 60mm
- Front light
- Supernova Starstream Pro, High Beam
- Front light 2
- Orbea integrated, USB-C charging point
- Rear light
- Orbea Fender integrated, with alert light
- Rear carrier
- Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
- Kickstand
- Massload rear adjustable
- Bell
- Knog Oi Small Flat
- Computer mount
- Smartphone mount SP Connect SPC+
