Orbea Muga
Muga 10
An electric all terrain bike powered by the Bosch Performance Line CX BDU3843 motor and the Bosch Powertube 750Wh Horizontal BBP3770 battery.
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

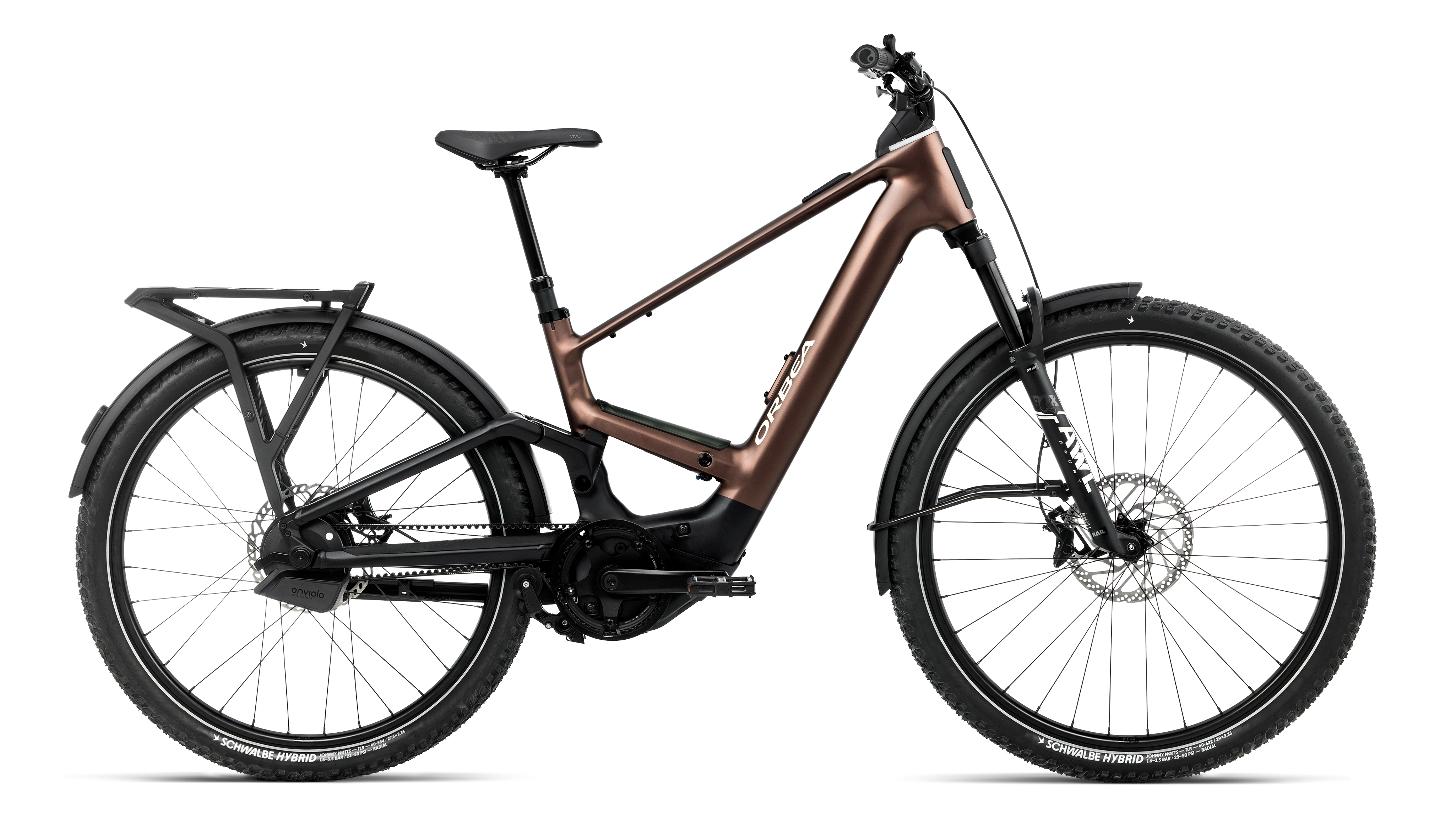

Metallic Rust - Diamond Black (Matt)
Ivory White - Black (Gloss)

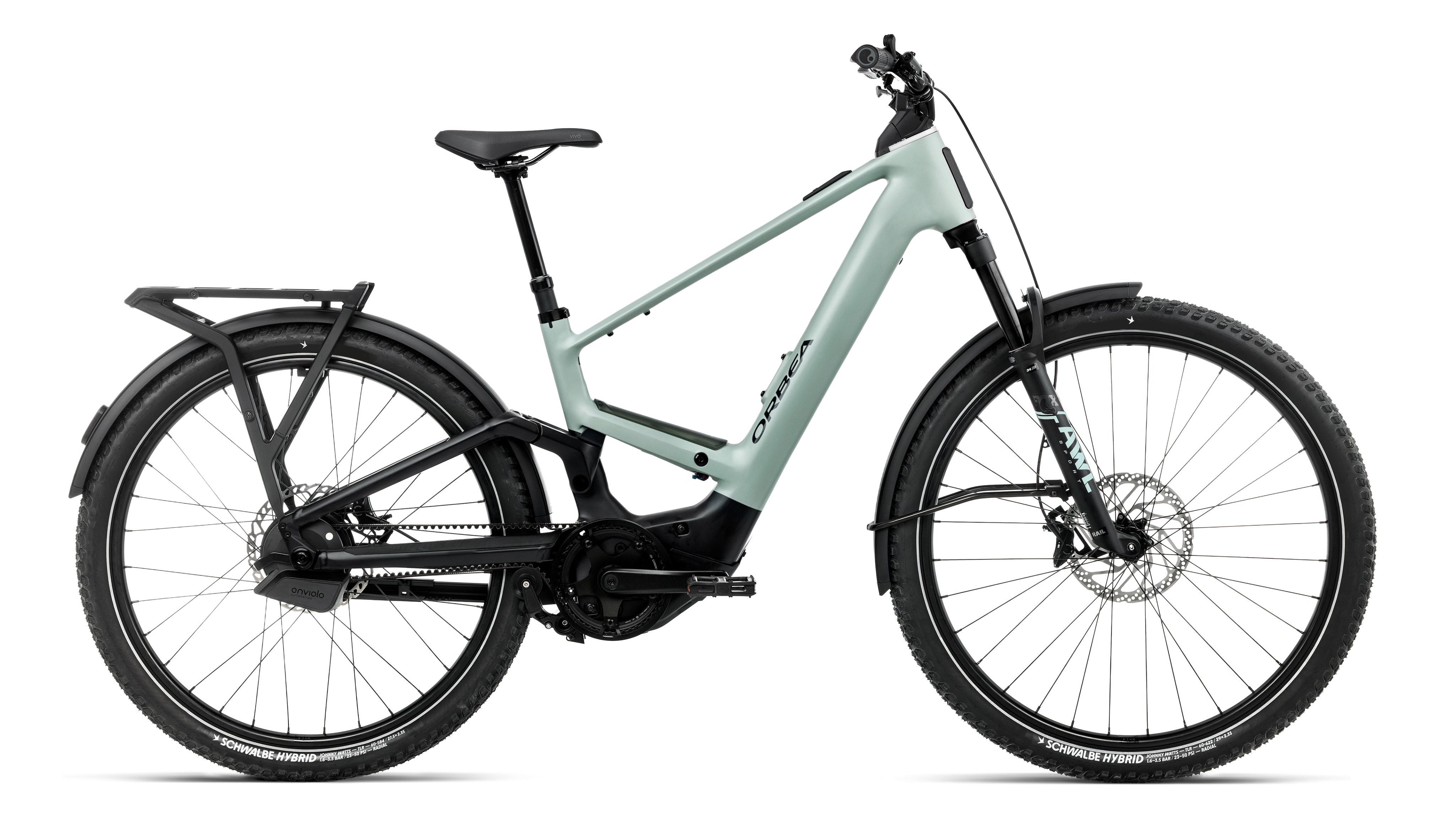

Blue Stone - Diamond Black (Matt)
Orbea Muga
Expand what moves you
Muga is Orbea's all-terrain urban e-bike, built on mountain-bike thinking: full suspension, mullet wheels and a powerful Bosch CX motor. It won a Eurobike Award in 2025.
Bosch Performance Line CX
The Bosch CX motor gives smooth, responsive support with four assistance levels, and the system is tuned through the Bosch app. Choose a 750Wh battery, or the lighter 600Wh battery on the Muga 30.
Capable suspension
Orbea quotes 115mm of rear travel tuned with its mountain-bike expertise, plus a 120mm fork, for a balance of comfort, control and efficiency.
Mullet wheels
A 29-inch front and 27.5-inch rear wheel keep handling nimble and confident, even when the bike is fully loaded.
Active geometry and adjustable cockpit
The riding position places the rider between the wheels for balance and control. A patented adjustable cockpit and shorter or longer position options let you fine-tune the fit.
Safety built in
Smart lighting, powerful brakes, integrated theft protection and tracker-ready mounts are part of the design from the start.
Clear display
A simple Bosch display shows the assistance level and remaining battery.
Base configuration highlights
Base configuration
Muga 10 build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Belt drive compatible, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Carrier compatible.
- Fork
- Fox 34 Float AWL Sport 120 Rail 2.0, Kabolt 15x110, Fender and ABS Mts
- Shock
- Fox Float Performance Trunnion 2-Pos custom tune 165x42.5mm
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
E-bike system
- Motor
- Bosch Performance Line CX BDU3843
- Battery
- Bosch Powertube 750Wh Horizontal BBP3770
- Display
- Bosch System Controller BRC3100
- Remote / controller
- Bosch Mini Remote BRC3300
- Charger
- Bosch Charger 4A (230V) BPC3400
Drivetrain
- Crank
- Prowheel EB03 alloy
- Cassette
- Gates CDX 24t for Enviolo
- Chain
- Gates CDX Belt
- Rear derailleur
- Enviolo Automatiq, BT
- Pedals
- VP-892 Black with reflectors
Cockpit
- Handlebar
- Orbea Urban, Integ. light, Backsweep 9, Rise 30, Width 760
Brakes
- Brakes
- Shimano MT520 Hydraulic Disc
Wheels & tyres
- Wheels
- Alloy, 25c, 32H
- Tyres
- Schwalbe Johnny Watts Hybrid Radial TLR, 60-622, Radial, Addix Green, Reflective Tape
Components
- Saddle
- Selle Royal Vivo Ergo
- Seatpost remote
- OC Dropper Remote for Sram Matchmaker
Accessories
- Mudguards
- Curana Apollo Orbit 70mm
- Front light
- Supernova Starstream Pro, High Beam
- Front light 2
- Orbea integrated, USB-C charging point
- Rear light
- Supernova TL3 Z
- Rear carrier
- Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
- Kickstand
- Orbea Integrated
- Computer mount
- Smartphone mount SP Connect SPC+
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
