Orbea Wild LT
Wild LT M-TEAM RS Mullet
A full-suspension electric mountain bike (enduro) powered by the DJI Avinox M2S motor and the DJI Avinox 800Wh battery.
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

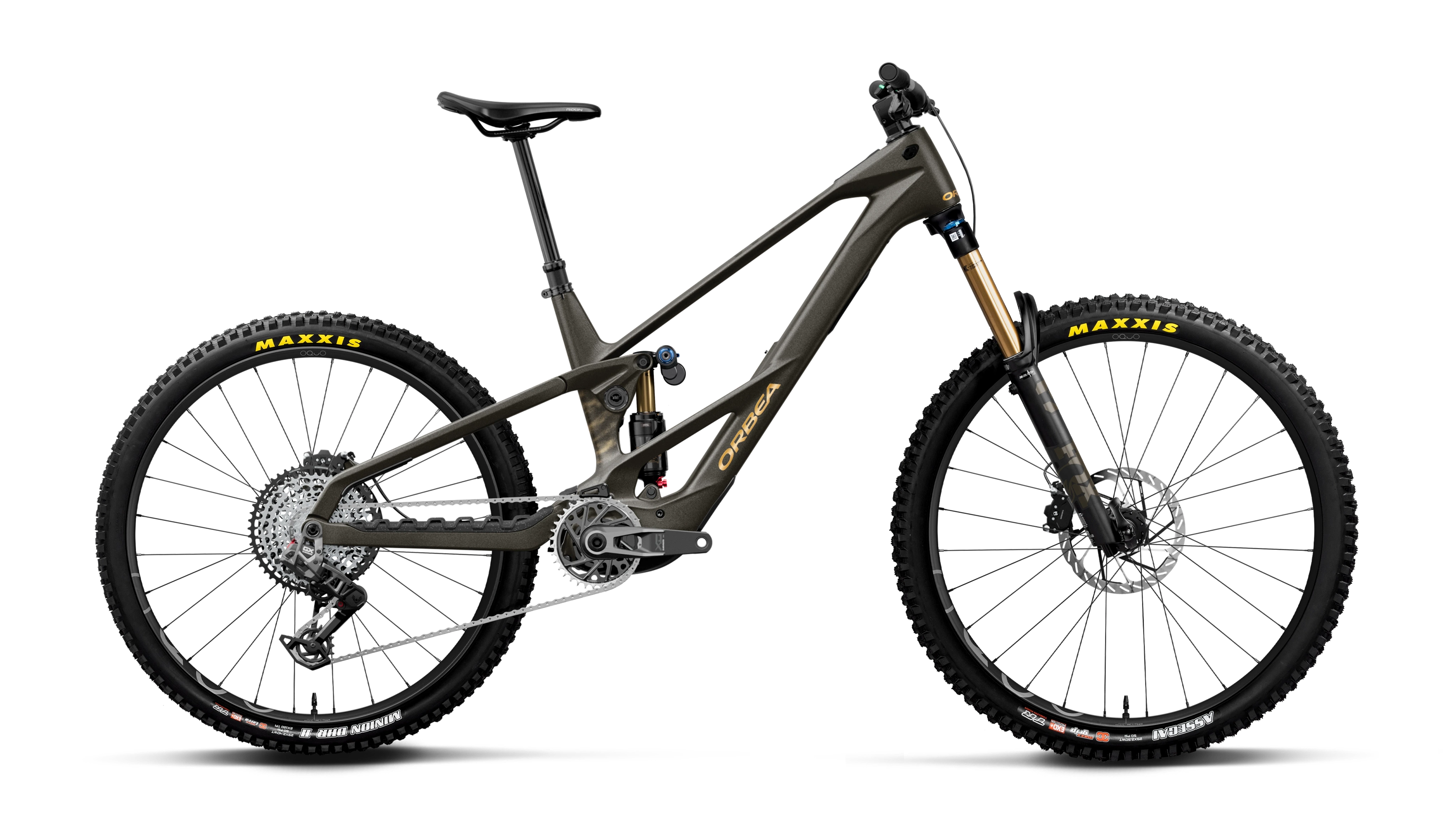

Magic Gold C. View (Matt) - Titan Gold (Gloss)

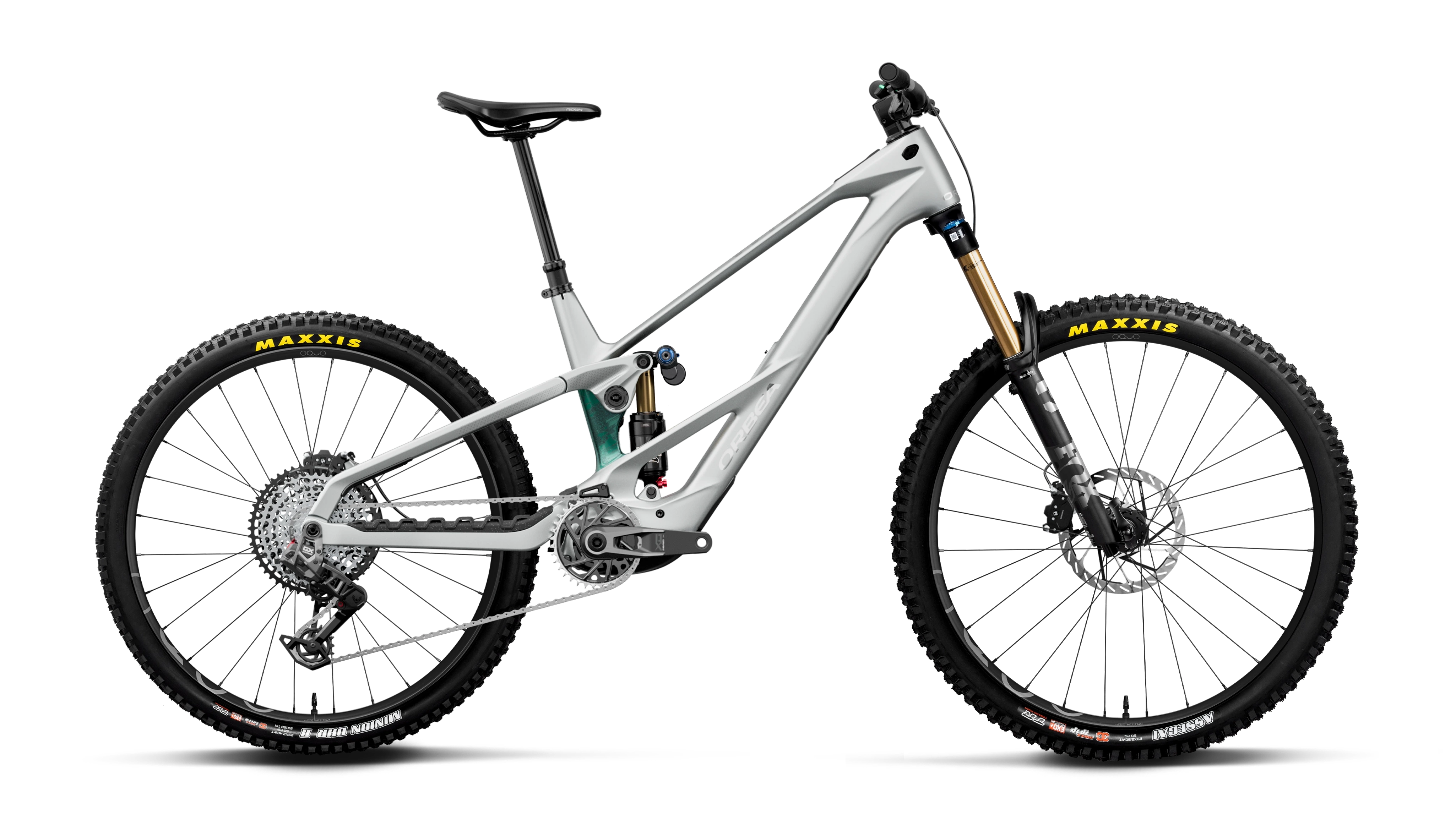

Smooth Silver (Matt) - Escape Green C. View (Gloss)

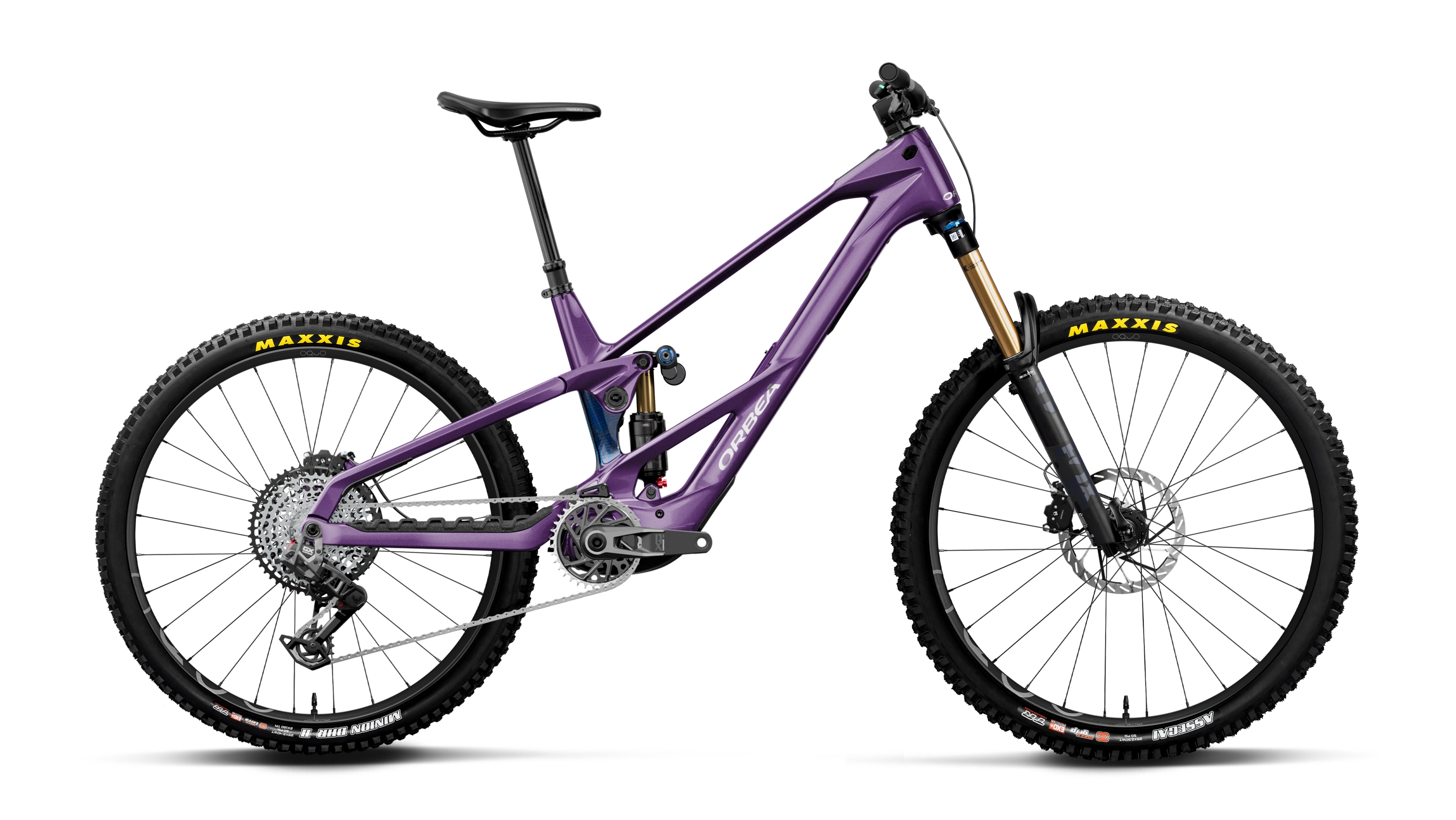

Royal Plum-Noctiluca C.View (Gloss)
Orbea Wild LT
The Yes Machine
Wild LT is Orbea's 170mm, full-power enduro e-MTB, sharing its race DNA with the Rallon. Orbea says builds start from below 21kg, and the frame is offered in carbon and aluminium.
Downhill-developed suspension
The kinematics are the same ones the Rallon uses to race at the highest level, with a progressive curve that builds support smoothly through the travel.
A more active suspension
Lower pedal kickback keeps the rear end working under power, and sealed pivot points protect against dirt so it stays smooth ride after ride.
Race-ready geometry
A low centre of gravity and geometry with a lot of adjustability let you tune the bike for different trails.
Tuned motor
Orbea tunes the DJI Avinox motor with its own RS tune so assistance is more reactive, which makes restarting on steep climbs easier.
Simple controls
Suspension modes can be adjusted from the RS HMI controller, without extra remotes.
Built to be ridden hard
Long-travel droppers, big brake rotors and robust wheels and tyres are part of the spec.
Base configuration highlights
Base configuration
Wild LT M-TEAM RS Mullet build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Wild OMR 2027, Mullet wheels, Concentric Boost 12x148
- Fork
- Fox 38 Float Factory 170, Grip X2, 15x110, Kashima
- Shock
- Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm
- Headset
- Acros ZS56
E-bike system
- Motor
- DJI Avinox M2S
- Battery
- DJI Avinox 800Wh
- Display
- DJI Avinox DP100
- Remote / controller
- Orbea System Controller with eDropper Remote
- Charger
- DJI Avinox Charger 4A
Drivetrain
- Crank
- Sram X0
- Shifters
- Sram AXS Pod
- Cassette
- Sram GX-1275 Eagle 10-52t 12-Speed
- Chain
- Sram GX Eagle 12-Speed
- Rear derailleur
- Sram GX Eagle AXS
- Chain guide
- Orbea eBike chainguide
Cockpit
- Handlebar
- OC Mountain Control MC10 Carbon, Rise 35, Width 800
- Stem
- OC Mountain Control MC11 Alu SL, 0º
Brakes
- Brakes
- Sram Maven Silver 4 piston Hydraulic Disc
Wheels & tyres
- Wheels
- Oquo Mountain Control MC32TEAM POWER
- Tyres
- Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
Components
- Saddle
- Fizik Aidon 208x145mm manganese rail
Accessories
- Mudguards
- Fox Fork, Long
- Computer mount
- OC Computer Mount CM-05, Garmin/Sigma
- Tools
- MT-20 FLP Multitool 2/3/4/5mm hex
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
