Cannondale · E-bike

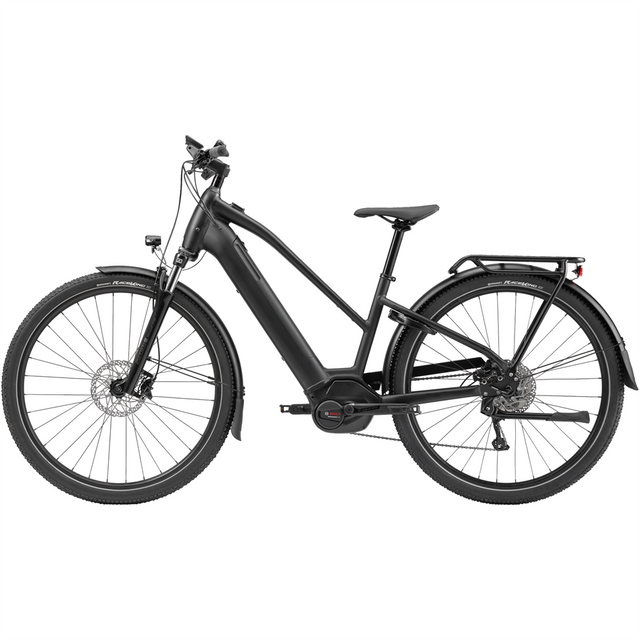

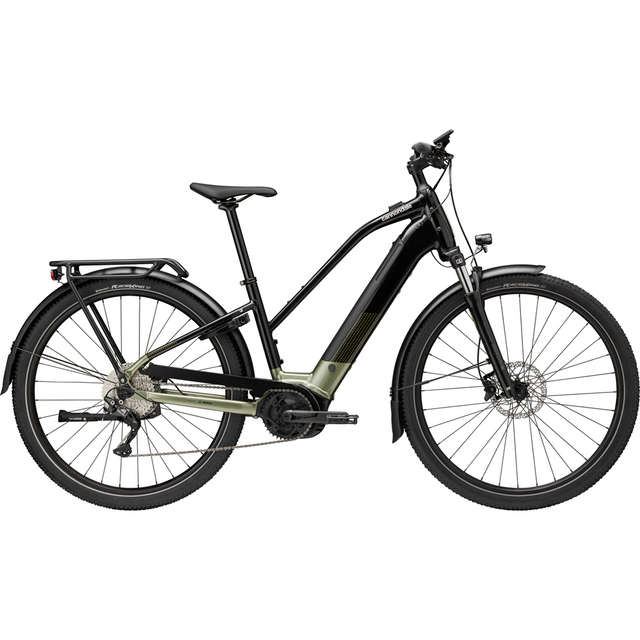

Tesoro Neo X2 StepThru Mantis
Inside this sporty commuter lies the wild and rugged heart of an explorer. With huge range, robust components and grippy mixed-surface tires, the all-new Tesoro Neo X is built to get you to it all week, and away from it all on the weekend.
Cannondale
Free Yourself
Inside this sporty commuter lies the wild and rugged heart of an explorer. With huge range, robust components and grippy mixed-surface tires, the all-new Tesoro Neo X is built to get you to it all week, and away from it all on the weekend.
Where it thrives
City streets and adventurous backroads
What it's built for
Commuting, touring, exploring
Off-road ready

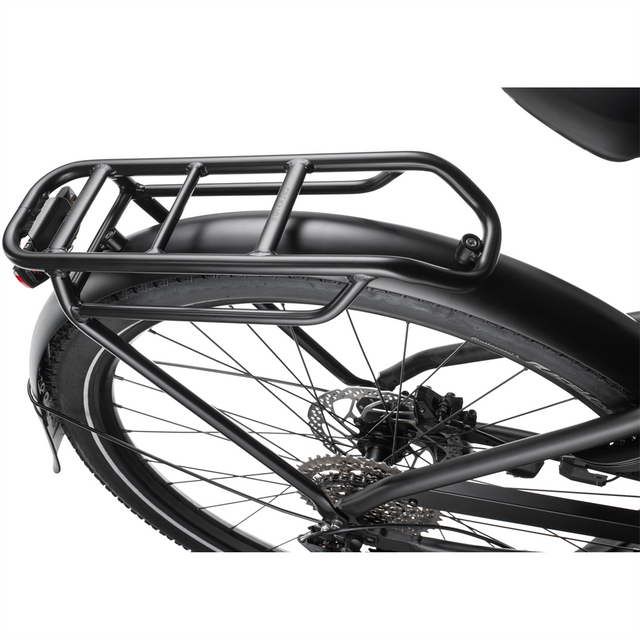

With its stout 63mm travel fork, rattle-free fenders, high-capacity rear rack (Racktime 25kg compatible), bright front and rear lights, wide handlebars and low gearing – the new Tesoro Neo X lives to load up and hit the road… any road, anywhere.
Urban steady
Potholes? Gravel? Tram tracks? No worries. All the features that make Tesoro Neo X so capable off-road translate into a comfortable, confident experience on-road.
Fast and fun
The upright sportive riding position and impressively precise handling make riding this e-bike a blast, whether you’re dicing it up with city traffic, or carving turns through the mountains, on-road or off.
Highlights
Build highlights
Specification
Tesoro Neo X2 StepThru Mantis specification
Specification as supplied by Cannondale. Components may change subject to availability.
Frameset
- Frame
- SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
- Fork
- SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
- Headset
- Semi-Integrated, Tapered; 1-1/8"-1-1/2"
Electric system
- Drive Unit
- Bosch Performance Line, Smart System, 25km/h
- Battery
- Bosch PowerTube, 625Wh
- Charger
- Bosch 4A
- Display
- Bosch Intuvia w/LED remote
Drivetrain
- Rear Derailleur
- Shimano Deore M4120, 10-speed
- Shifters
- Shimano Deore M4100, 10-speed
- Chain
- Shimano HG54, 10-speed
- Crank
- FSA for Bosch
- Rear Cogs
- Shimano Deore M4100, 11-42, 10-speed
Brakes
- Brakes
- Shimano MT400 hydraulic disc, 180/180mm RT30 rotors
- Brake Levers
- Shimano MT400 hydraulic disc
Wheels & tyres
- Rims
- Alloy, double wall, 32 hole, 25mm internal width, disc-specific
- Spokes
- Stainless Steel, 14g
- Tire Size
- 29x2.2
- Wheel Size
- 27.5/29
- Hubs
- (F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano UR600, 135QR
- Tires
- Continental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-XL)
Cockpit & contact points
- Handlebar
- Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
- Stem
- Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
- Grips
- Cannondale Ergo Fitness Dual Density, Lock-on
- Saddle
- Selle Royal Vivo Active Ergo with reflective accents
- Seatpost
- Cannondale 4, 6061 Alloy, 31.6
Extras
- Specification
- SPECIFICATION
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
