Superlight carbon disc fork

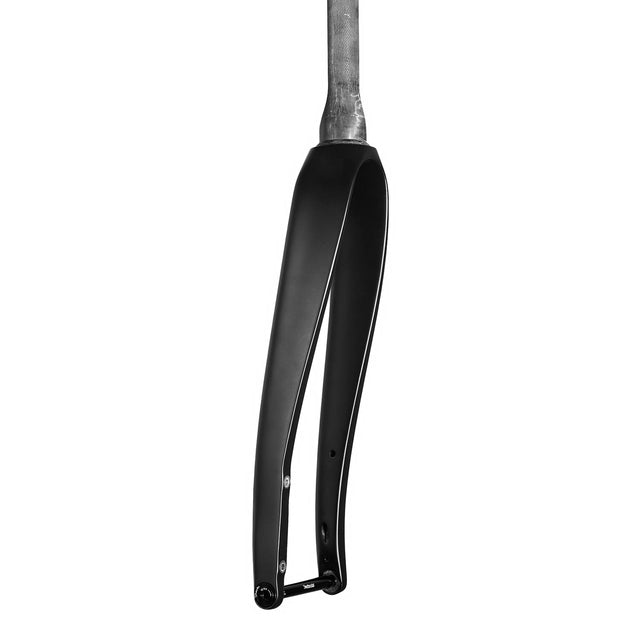

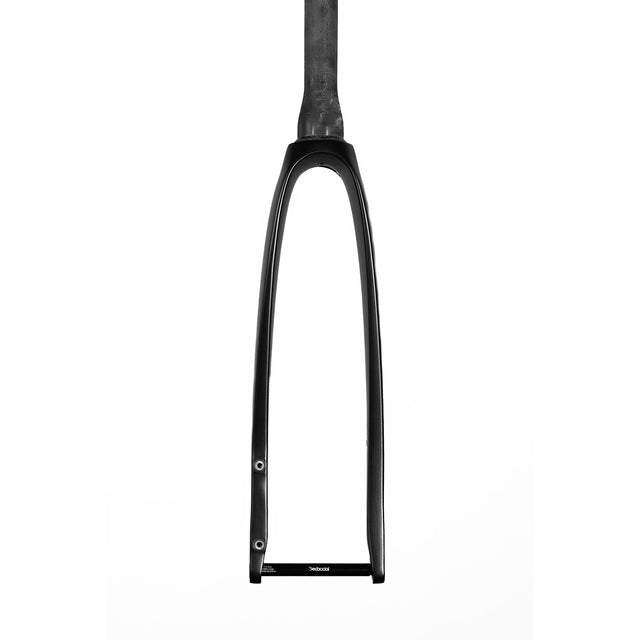

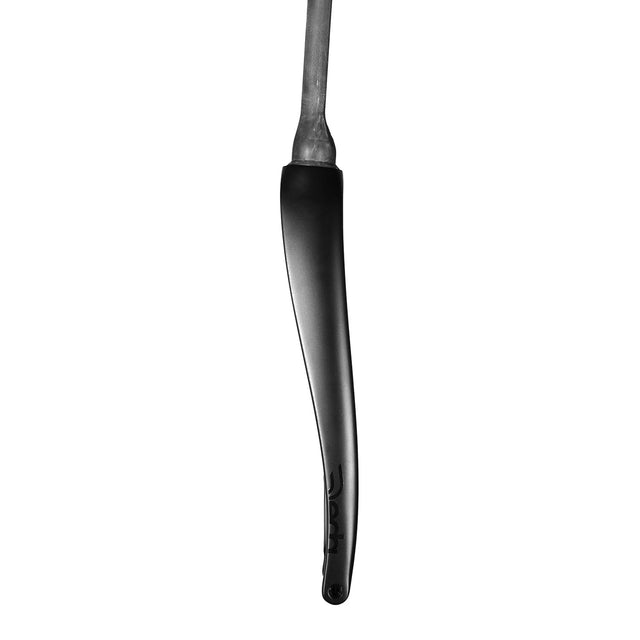

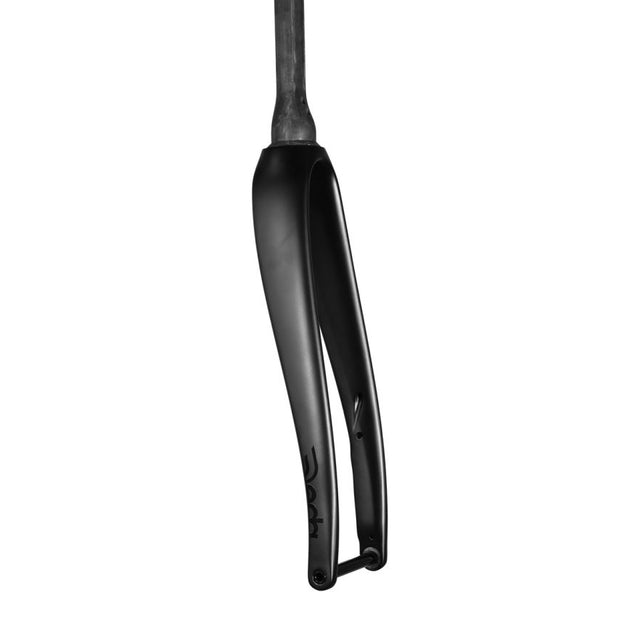

Deda Allroad Carbon Disc Fork
A 420g carbon disc fork for road and light gravel, with internal routing through a D-shape steerer, mudguard mounts and dynamo-hub compatibility.
Highlights
Why we rate it
Featherweight
Monocoque carbon construction keeps the fork to just 420g, a meaningful saving on many stock disc forks.
Clean routing
The D-shape steerer accepts up to three cables with a standard stem or four with a DCR stem, keeping the front of the bike tidy.
Road geometry
45mm rake and 370mm axle-to-crown suit road and endurance frames, with clearance for 700 x 35mm tyres.
Versatile mounts
Mudguard eyelets and SON dynamo-hub readiness make it a smart choice for year-round and audax builds.
Fitting
Compatibility
Fits most carbon or metal frames with internal routing and a Deda DCR, Classic 1, or tapered 1 1/8in to 1.5in or 1 1/4in to 1.5in headset. For internal routing pair it with any Deda stem or a 1 1/8in stem with a large steerer opening.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Material
- Monocoque carbon, UD finish, polish logo
- Steerer
- D-shape, 1 1/8in to 1.5in tapered
- Steerer length
- 350mm
- Crown race
- Integrated 45°
- Axle to crown
- 370mm
- Rake
- 45mm
- Crown diameter
- 56mm
- Axle
- 12 x 100mm thru-axle
- Brake mount
- Flat mount, 140mm or 160mm rotor
- Tyre size
- 700 x 35mm (5mm min. blade clearance)
- Mounts
- Mudguard mounts, SON dynamo ready
- Weight
- 420g
In the box
- Includes
- Allroad fork
- Includes
- Thru-axle (M12 x P1.5 x 115.5)
- Includes
- D-shape expander
- Includes
- Top cap
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
