Full-carbon gravel fork

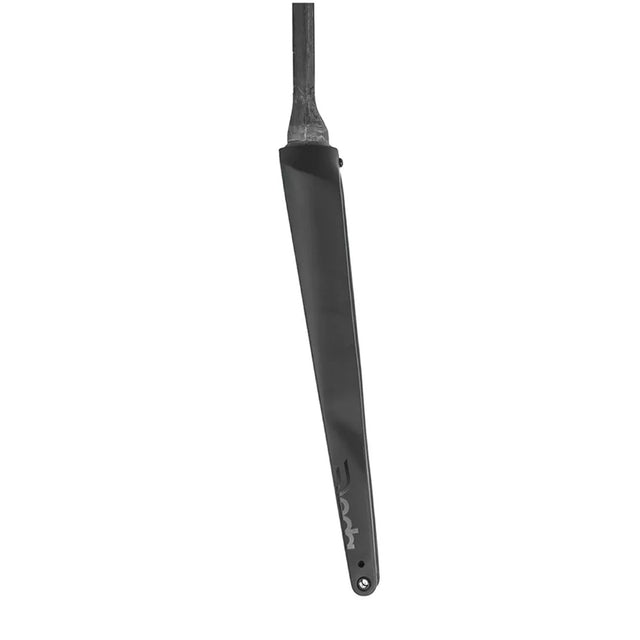

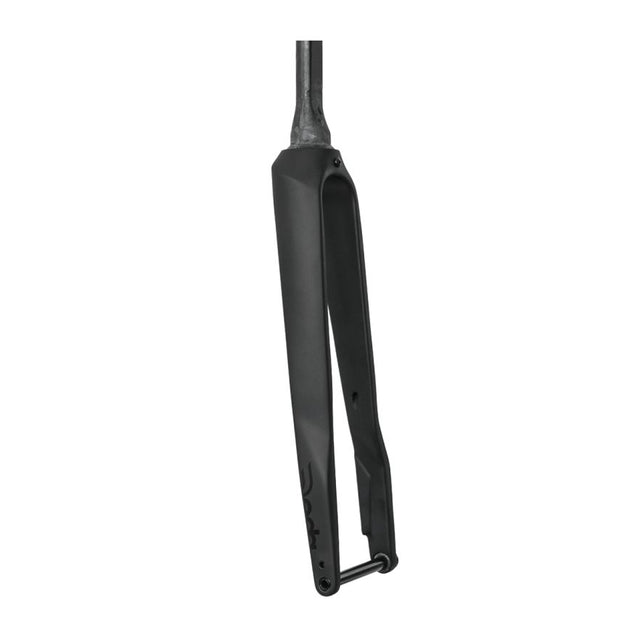

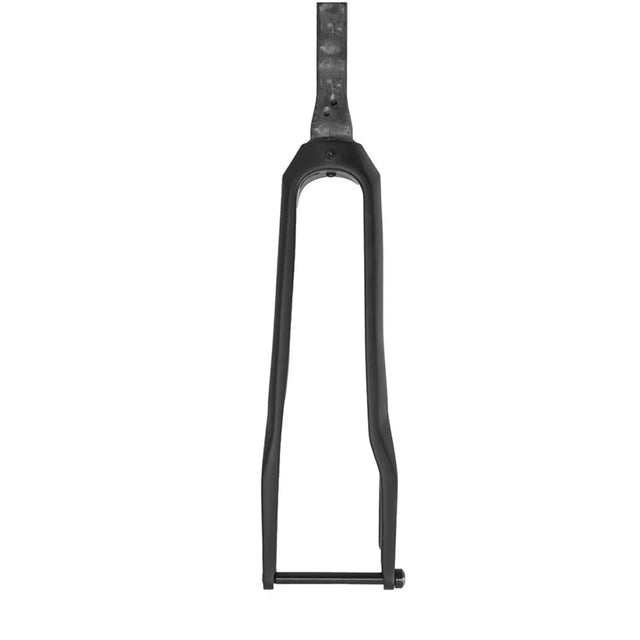

Deda Gera EDG Carbon Gravel Fork
A sub-500g straight-blade carbon fork for gravel and road, with hidden cable routing through a D-shape steerer, room for 45mm tyres and dynamo-hub readiness.
Highlights
Why we rate it
Light and stiff
Full carbon construction brings the weight in at 498g, with straight blades for precise steering on loose surfaces.
Hidden cabling
The D-shape 1 1/8in steerer works with Deda's DCR system, taking up to four cables with a DCR stem or three with a standard stem.
Generous clearance
Room for 700 x 45mm or 650b x 50mm tyres covers everything from fast gravel to rougher adventure riding.
Ready for touring
Mudguard mounts and compatibility with SON dynamo hubs make it a good base for all-season or bikepacking builds.
Fitting
Compatibility
Suits most carbon and metal frames with a tapered 1 1/8in to 1.5in head tube (also DCR, Classic 1, 1 1/4in to 1.5in and 1.5in headset set-ups). For internal routing use a Deda stem or one with a large steerer opening.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Material
- Full carbon, UD finish, polish logo
- Steerer
- D-shape, 1 1/8in to 1.5in tapered
- Steerer length
- 350mm
- Crown race
- Integrated 45°
- Axle to crown
- 398mm
- Rake
- 50mm
- Axle
- 12 x 100mm thru-axle
- Brake mount
- Flat mount, 160mm or 180mm rotor
- Tyre clearance
- 700 x 45mm or 650b x 50mm
- Mounts
- Mudguard mounts, SON dynamo ready
- Max load
- 15kg per side (5kg per eyelet)
- Cable routing
- Up to 3 cables (standard stem), up to 4 (DCR stem)
- Weight
- 498g
In the box
- Includes
- Gera EDG fork
- Includes
- Thru-axle (M12 x P1.5 x 120)
- Includes
- D-shape expander
- Includes
- Top cap
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
