Orbea Terra
Terra OMR Frameset
A gravel frameset from Orbea's Terra range.
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.
Nickel - Met Cinnamon (Matt)

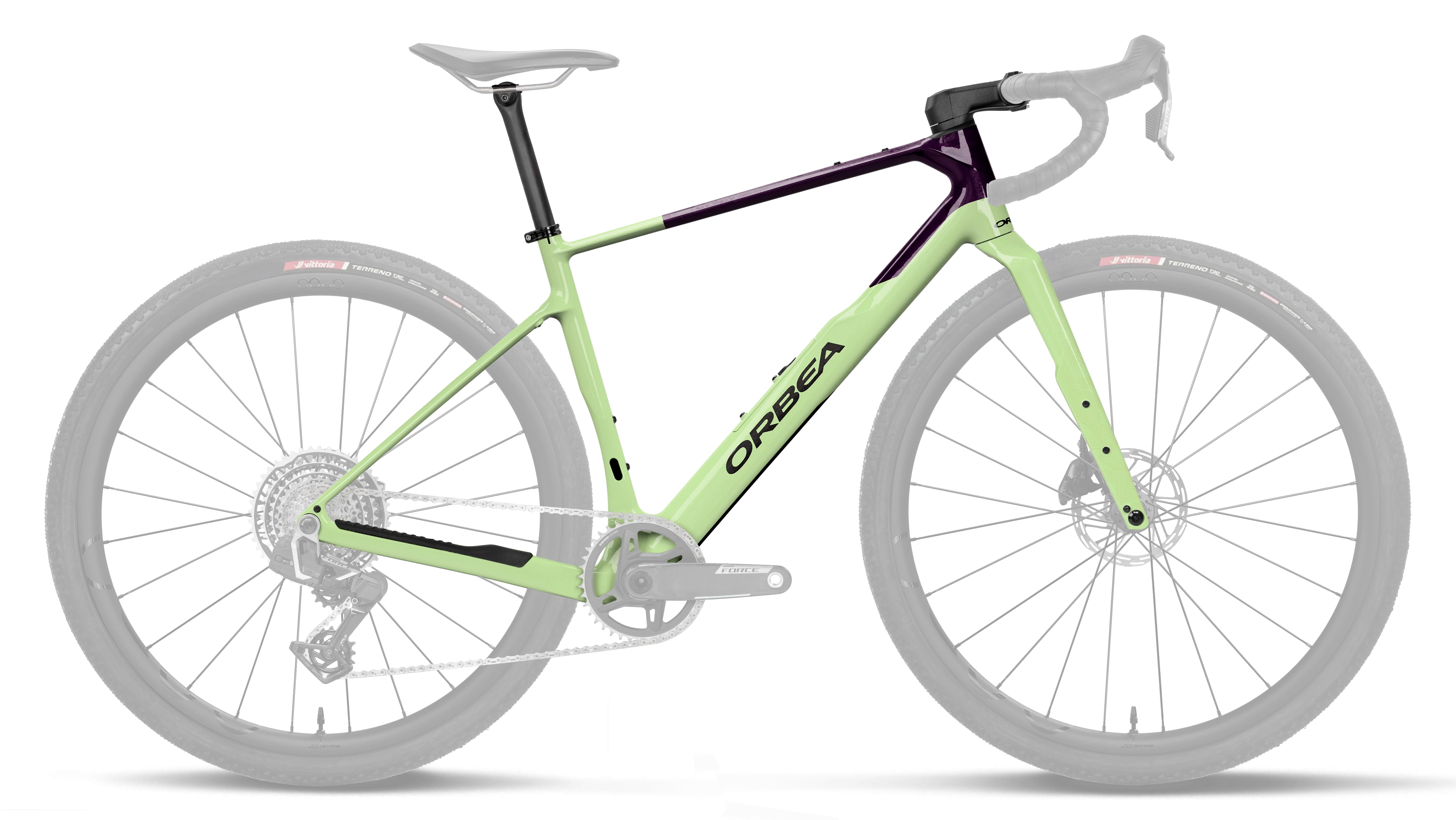

Acid Gum - Fantasy Purple Carbon View (Gloss)

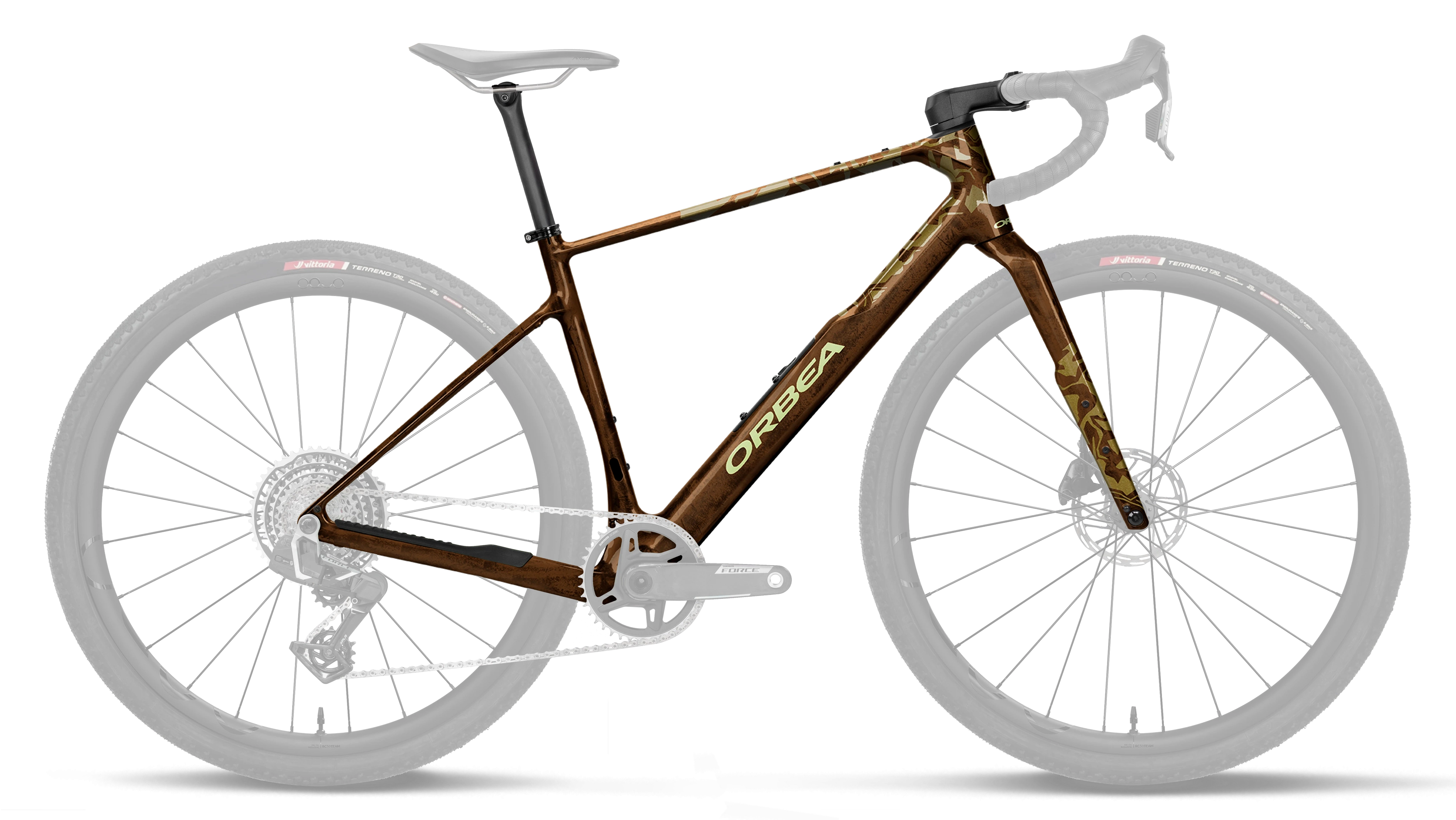

Caramel Carbon View (Gloss)
Orbea Terra
Boundless
Terra is Orbea's long-distance gravel bike: generous tyre clearance, a vibration-damping frame and plenty of mounting points for racing or bikepacking.
Gravel geometry
A long reach and higher stack pair with a shorter stem for precise steering. A longer wheelbase adds stability and comfort, and size-specific fork trail balances the steering feel.
Balanced OMR carbon
Orbea's OMR layup balances strength with compliance to filter out harsh vibrations. Orbea quotes 1,040g for the unpainted frame.
OMR carbon fork
Long legs and sculpted cutouts add bump compliance. Room for 50C tyres, with 5mm to spare each side. Orbea quotes 440g.
Vibration-damping design
A shorter seat tube with a slightly relaxed angle lets the 27.2mm seatpost flex, while a slim top tube and cutouts in the fork and chainstays take the edge off rough ground.
OQUO wheel options
Choose from RP50LTD (50mm carbon, aero), RC30TEAM (30mm carbon, built for endurance and gravel) or RC25PRO (25mm alloy, robust and comfortable).
Compatibility
Built for the long haul
Wide compatibility and storage options to take everything you need.
50C tyre clearance
Room for up to 50C tyres, or 45C with mudguards.
1x or 2x drivetrain
Works with single or double chainsets.
UDH and dropper compatible
Universal Derailleur Hanger compatibility, and a standard 27.2mm external seatpost clamp that works with a dropper post.
Fully loaded mounting points
Mounts on the seat tube, top tube, downtube and fork for bags and bottle cages.
Fender mounts
Front and rear fender mounts on every model; mudguards can be added as a MyO option.
LOCKR XXL storage
Frame storage with about 35% more volume than before, for clothing, tools or snacks.
Fit
Tuned to you
Fit, wheels and components can be adjusted to suit.
HB-GR10 carbon handlebar
Lightweight and vibration-damping, in four sizes with a 12° flare and 70mm reach.
Adaptable ergonomics
A range of bar widths and heights including a 15mm riser, plus stem and crank length options, and a choice of integrated aero cockpit or flared gravel bar and stem.
Base configuration highlights
Base configuration
Terra OMR Frameset build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.
- Fork
- Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
Cockpit
- Stem
- OC Road Performance RP23, -5º
Wheels & tyres
- Front hub
- Orbea Thru Axle 12x100mm M12xP1 Hollow
- Rear hub
- Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Components
- Seatpost
- OC Performance XP10 Carbon, 27.2mm, Setback 0
Accessories
- Storage
- Accesories Containers
- Side bag
- Accesories Containers
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
