Orbea Alma
Alma H20
A hardtail mountain bike (xc).
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.
Frozen Concrete - Titanium (Gloss)

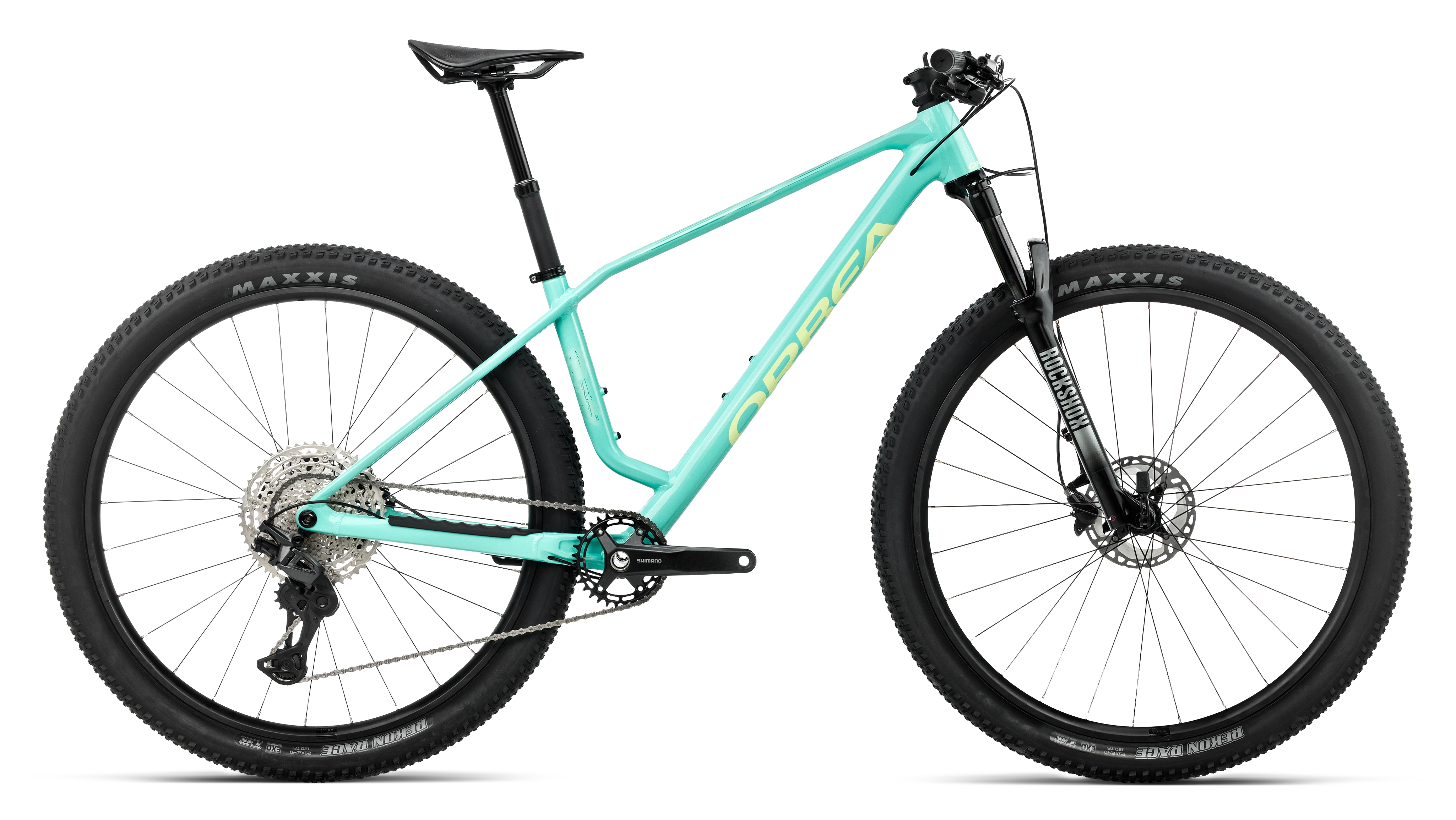

Aloha Green - Acid Gum (Gloss)

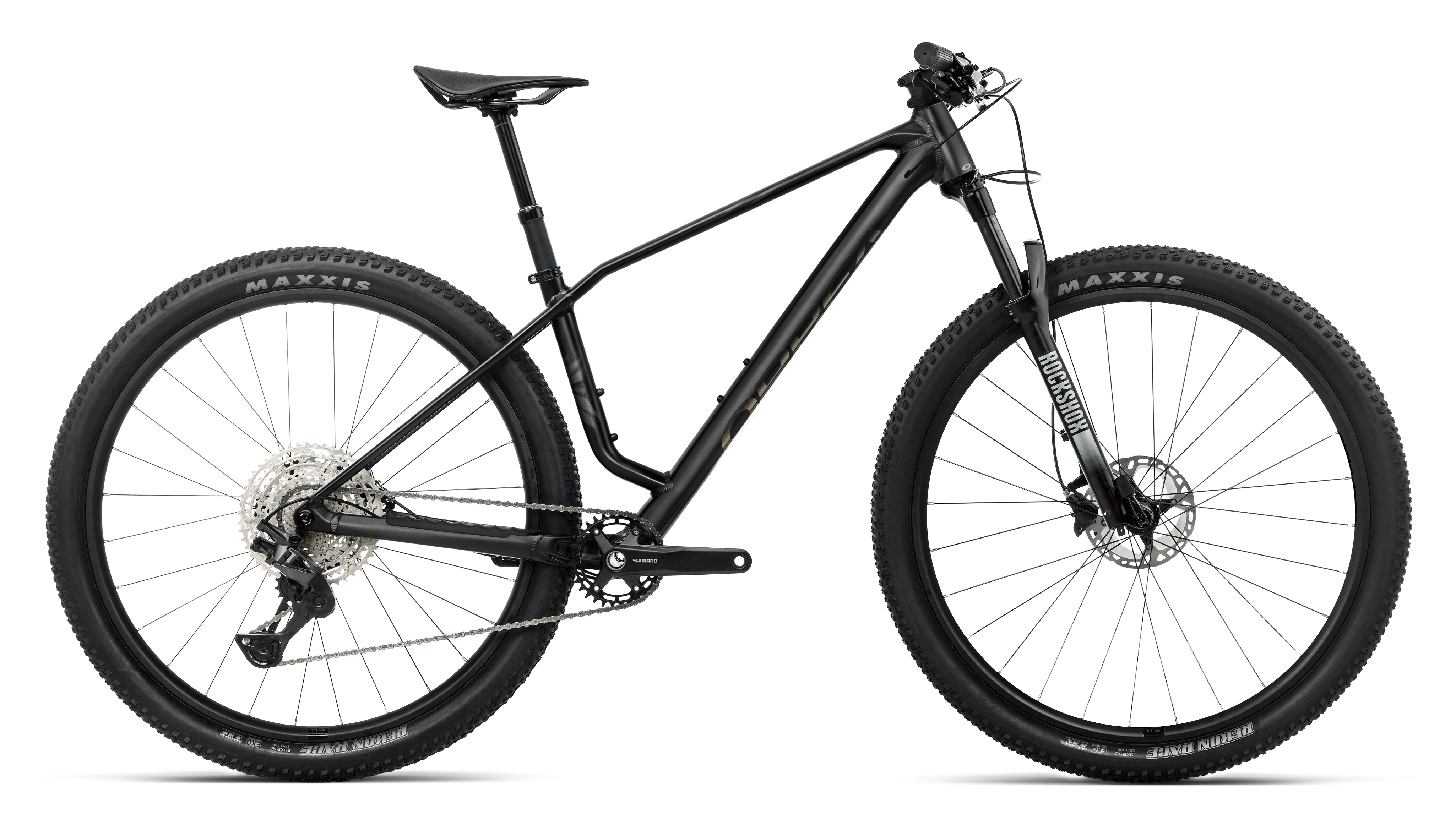

Diamond Black (Matt) - Titan Black (Gloss)
Orbea Alma
Performance as an obsession
Alma is Orbea's cross-country hardtail, available in carbon and hydroformed alloy and tuned for XC and marathon racing.
X-Fader seat tube
On the carbon frames, Orbea's X-Fader design acts as a micro-damper in the seat tube, absorbing vibration and impacts without costing rigidity.
Lightweight carbon
The latest Alma carbon frame is claimed to weigh around 1,080g in size M without hardware.
Integration
Internal cable routing, a Boost rear end and clean, integrated lines give the Alma a race-ready look.
Race-tuned handling
On the carbon frame Orbea quotes a 67° head angle and 425mm chainstays, keeping the bike sharp and quick on the climbs.
Practical details
Smart Clips let you mount a bottle cage without bolts poking into the seat tube, so a dropper post can be used.
Base configuration highlights
Base configuration
Alma H20 build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Alma Hydro Alloy, Boost 12x148, BSA BB, Internal cable routing.
- Fork
- RockShox Judy Silver TK 110 Remote 15x110 Boost
- Headset
- 1-1/2" Integrated
Drivetrain
- Crankset
- Shimano MT520 32t
- Shifters
- Shimano Deore M6200
- Cassette
- Shimano CS-M6200 10-51t 12-Speed
- Chain
- Shimano M6100
- Rear derailleur
- Shimano XT M8200 SGS Shadow Plus
Cockpit
- Handlebar
- Alloy, 31.8mm, Flat, 740mm, Sweep 9
- Stem
- ST 0.2 Alloy 60mm, -3º
Brakes
- Brakes
- Shimano MT201 Hydraulic Disc
Wheels & tyres
- Wheels
- Alloy, 26c, 28H, TLR
- Tyres
- Maxxis Rekon Race 2.25" 60TPI Wire Exo TR
Components
- Saddle
- Selle Italia Model A Greentech
- Seatpost remote
- Shimano SL-MT500
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
