Orbea Laufey
Laufey H30
A hardtail mountain bike (trail).
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

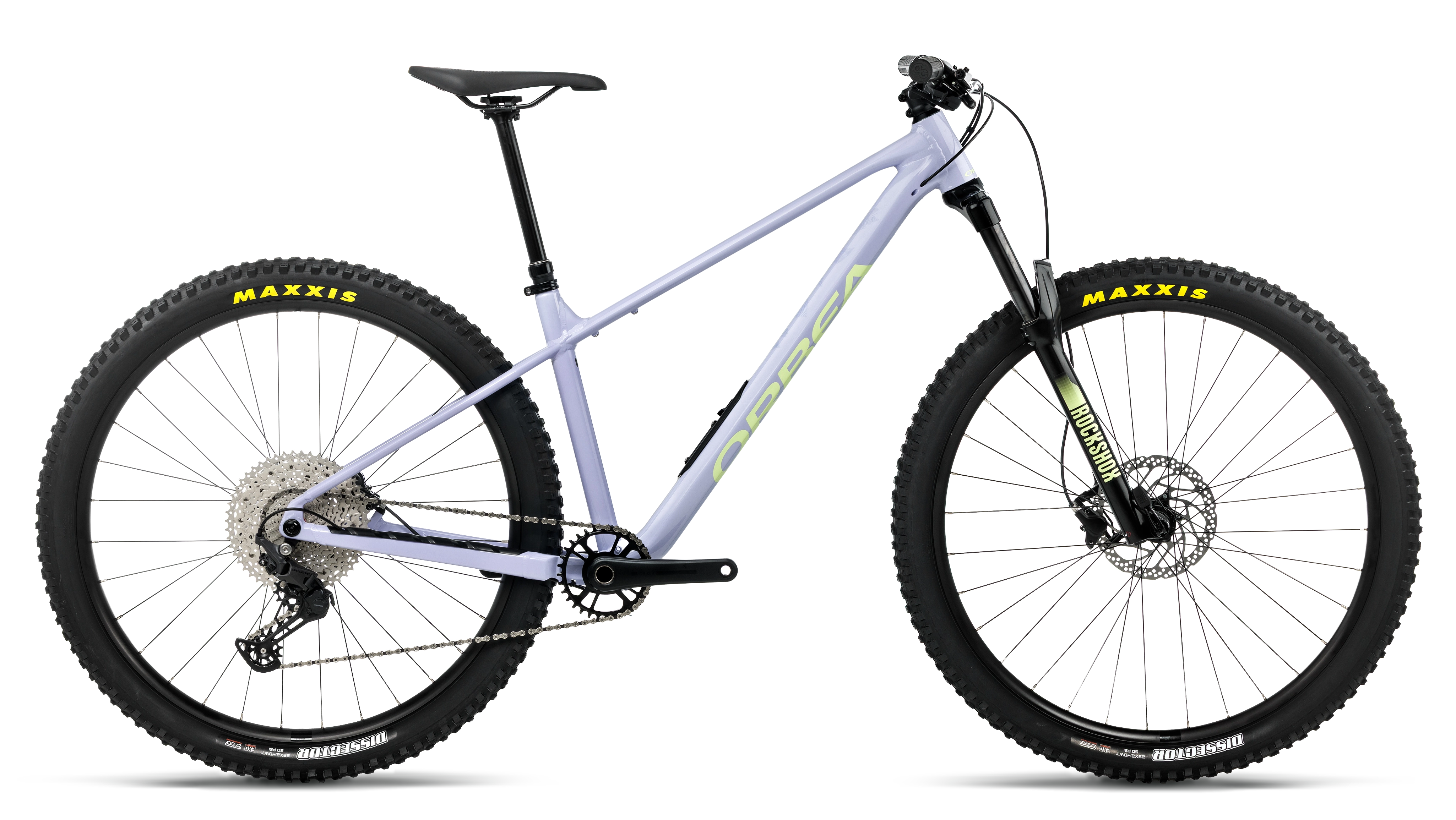

Digital Lavender - Acid Gum (Gloss)

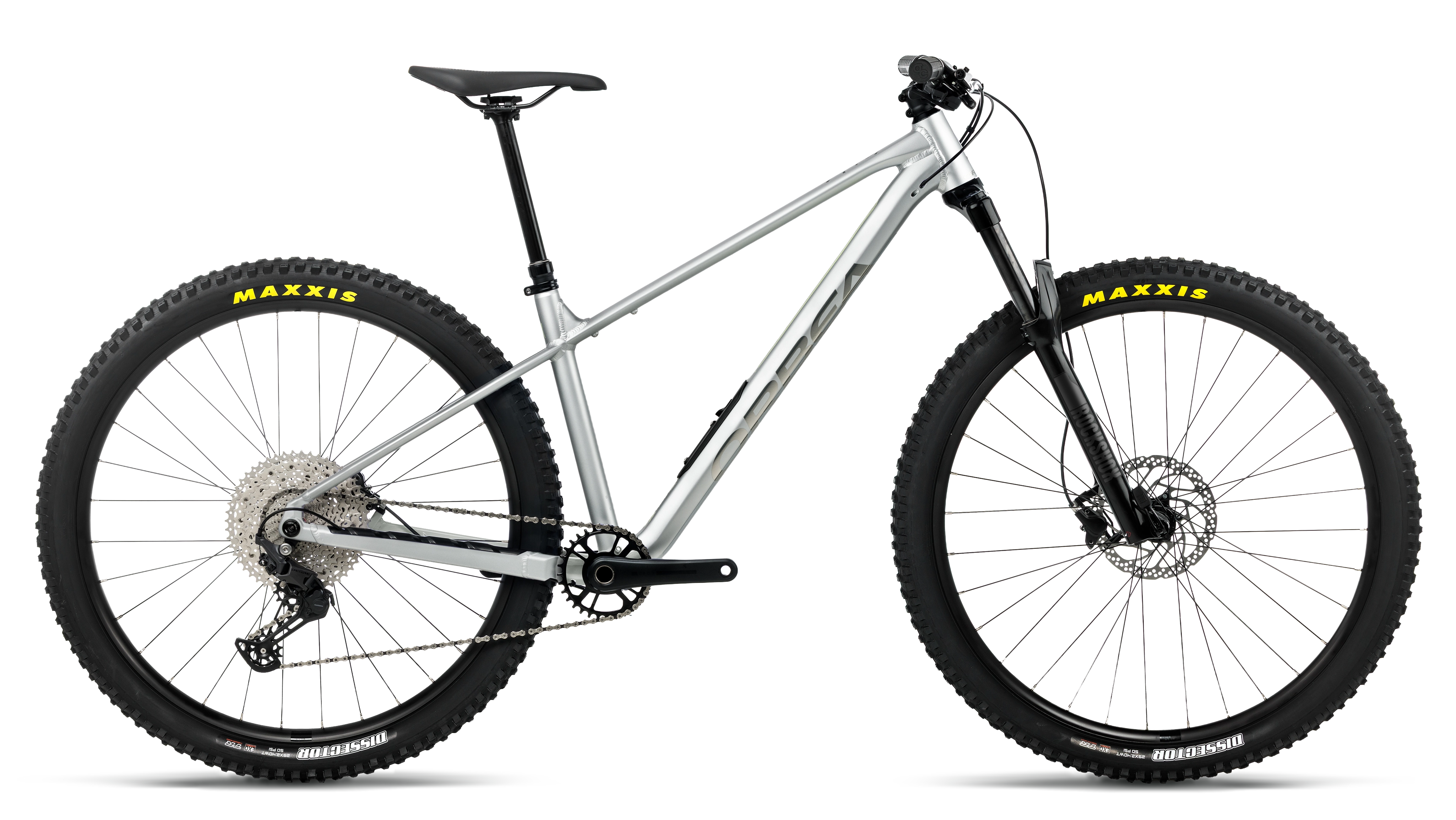

Smooth Silver (Matt) - Titanium (Gloss)
Metallic Cinnamon (Matt) - Black (Gloss)
Orbea Laufey
Master of fun
Laufey is Orbea's trail hardtail, designed around the idea that riding a hardtail is a choice rather than a compromise. It has a lightweight aluminium frame and modern trail geometry.
Trail geometry
Orbea quotes a 64.5° head angle, 77° seat angle and 440mm chainstays on every size, for stability and responsive handling.
Powerspine frame
The Powerspine stiffens the area around the downtube and head tube for precise handling, while the top tube and rear triangle add compliance for comfort over hits and vibration.
Steep and deep seat tube
A short, straight, uninterrupted seat tube lets riders on every size fit a long-travel dropper post, and the low top tube gives generous standover.
Built tough
Factory-fitted protection on the downtube, hidden internal cable routing with built-in guides, and an ISCG 05 mount for a chain guide are part of the frame.
Lockr storage
Orbea's Lockr downtube storage system, first seen on the Rallon, lets you carry essentials inside the frame.
Base configuration highlights
Base configuration
Laufey H30 build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05
- Fork
- RockShox Recon RL 15X110 Boost Solo Air 140mm
- Headset
- Acros Alloy 1-1/8 - 1-1/2" Integrated
Drivetrain
- Crankset
- Forged alloy, 32t
- Shifters
- Shimano Deore M6200
- Cassette
- Sun Race 11-51t 12-Speed
- Chain
- KMC X12
- Rear derailleur
- Shimano Deore M6200 SGS Shadow Plus
Cockpit
- Handlebar
- OC Mountain Control MC30, Rise20, Width 800
- Stem
- Alloy 3D forged, 35mm interface, -7º
- Grips
- OC Lock On
Brakes
- Brakes
- Shimano MT201 Hydraulic Disc
Wheels & tyres
- Wheels
- Alloy, Tubeless, 29", 29c, 32H
Components
- Saddle
- Selle Royal 2058 DRN
- Seatpost remote
- Shimano SL-MT500
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
