Orbea Occam
Occam SL H30
A full-suspension mountain bike (trail).
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

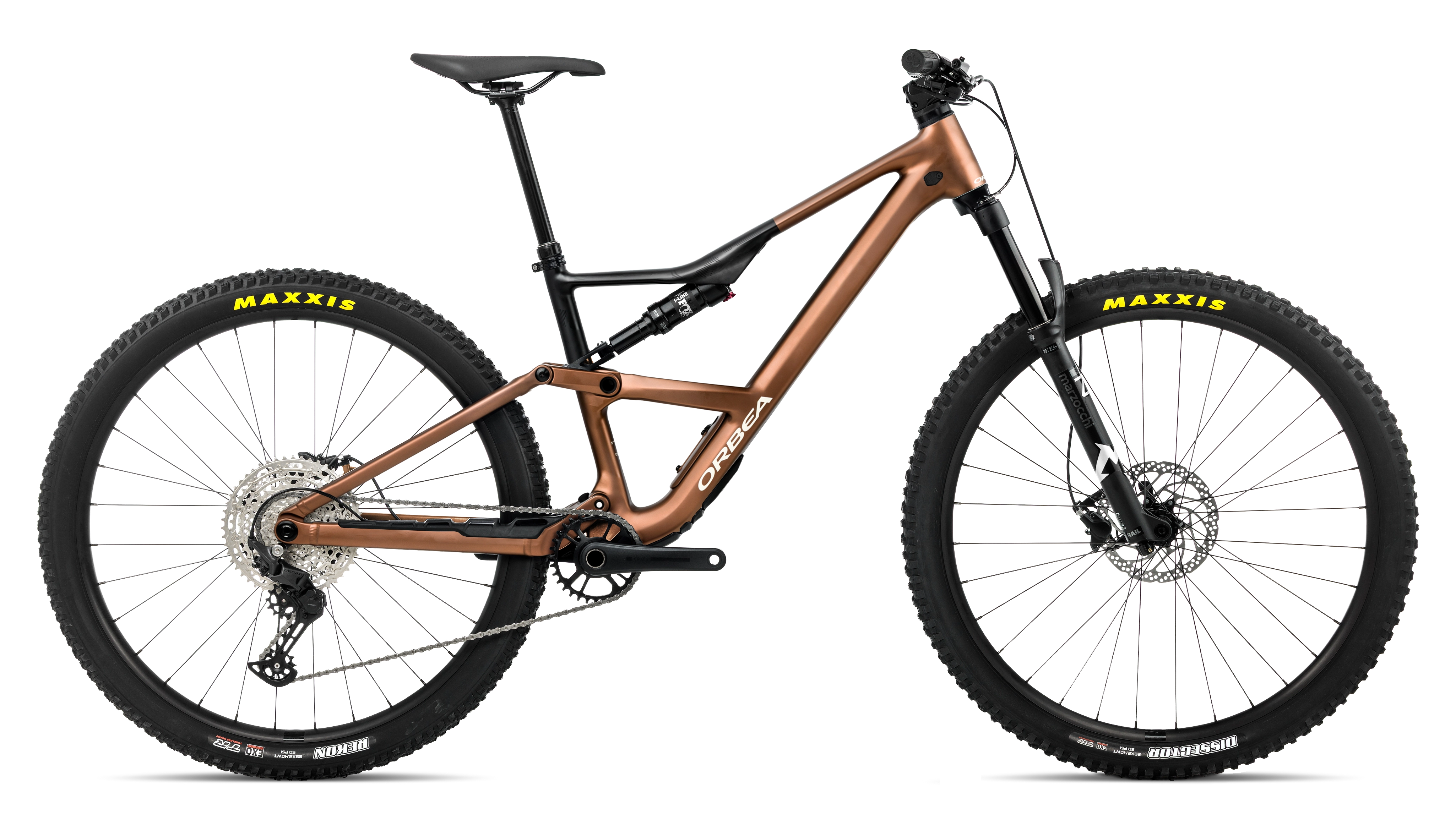

Metallic Cinnamon (Matt) - Black (Gloss)
Spaceship Green - Acid Gum (Gloss)

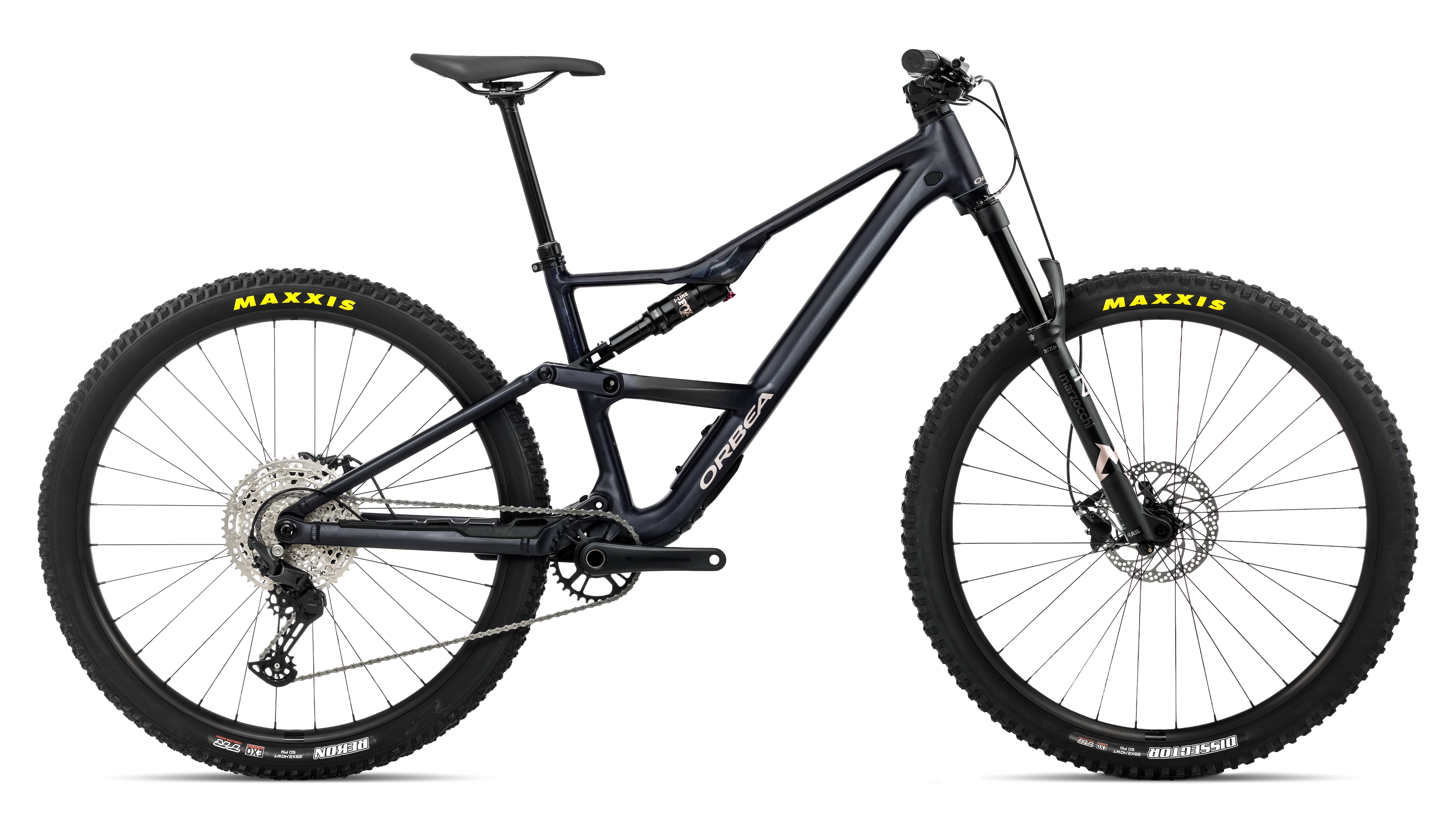

Tanzanite (Matt-Gloss)
Orbea Occam
Adventure²
Occam is Orbea's trail bike, offered as the SL and the longer-travel LT so you can pick the character you want. Both share the same frame platform and are offered in carbon and alloy.
Occam SL
Lightweight and efficient for riders who want to cover serious ground. 140mm of travel front and rear, fast trail geometry and a Squidlock remote lockout. Tuned anti-squat helps it climb well.
Occam LT
For riders who want to push harder. 160mm of travel at the front and 150mm at the rear, progressive trail geometry and a choice of coil or air shock.
Progressive suspension
Orbea says Occam has around 30% progressivity, finding grip while staying composed on bigger hits. Each bike has a purpose-matched shock extender: light carbon on the SL, adjustable alloy on the LT.
Steep and deep seat tube
An uninterrupted, steep seat tube lets riders on every size fully insert a 230mm dropper post.
Built for climbing
Occam has long been known for its climbing ability, and the tuned pedalling behaviour of the suspension keeps that going.
Base configuration highlights
Base configuration
Occam SL H30 build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Both Internal & External cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool
- Fork
- Marzocchi Bomber Z2 140 Rail Remote Push-Lock QR15x110
- Shock
- Fox Float Performance Remote Push-lock Evol custom tune 210x50mm
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
Drivetrain
- Crankset
- Forged alloy, 32t
- Shifters
- Shimano Deore M6200 I-Spec EV
- Cassette
- Shimano CS-M6200 10-51t 12-Speed
- Chain
- Shimano M6100
- Rear derailleur
- Shimano Deore M6200 SGS Shadow Plus
Cockpit
- Handlebar
- OC Mountain Control MC30, Rise20, Width 800
- Stem
- OC Mountain Control MC21, 0º
- Grips
- OC Lock On
Brakes
- Brakes
- Shimano MT201 Hydraulic Disc
Wheels & tyres
- Wheels
- Alloy, Tubeless, 29", 29c, 32H
- Tyres
- Maxxis Dissector 2.40" 60TPI Rigid EXO/TR
Components
- Saddle
- Selle Royal 2058 DRN
Accessories
- Storage
- Accesories Containers
- Side bag
- Accesories Containers
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
