Orbea Rallon
Rallon E10
A full-suspension mountain bike (enduro).
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

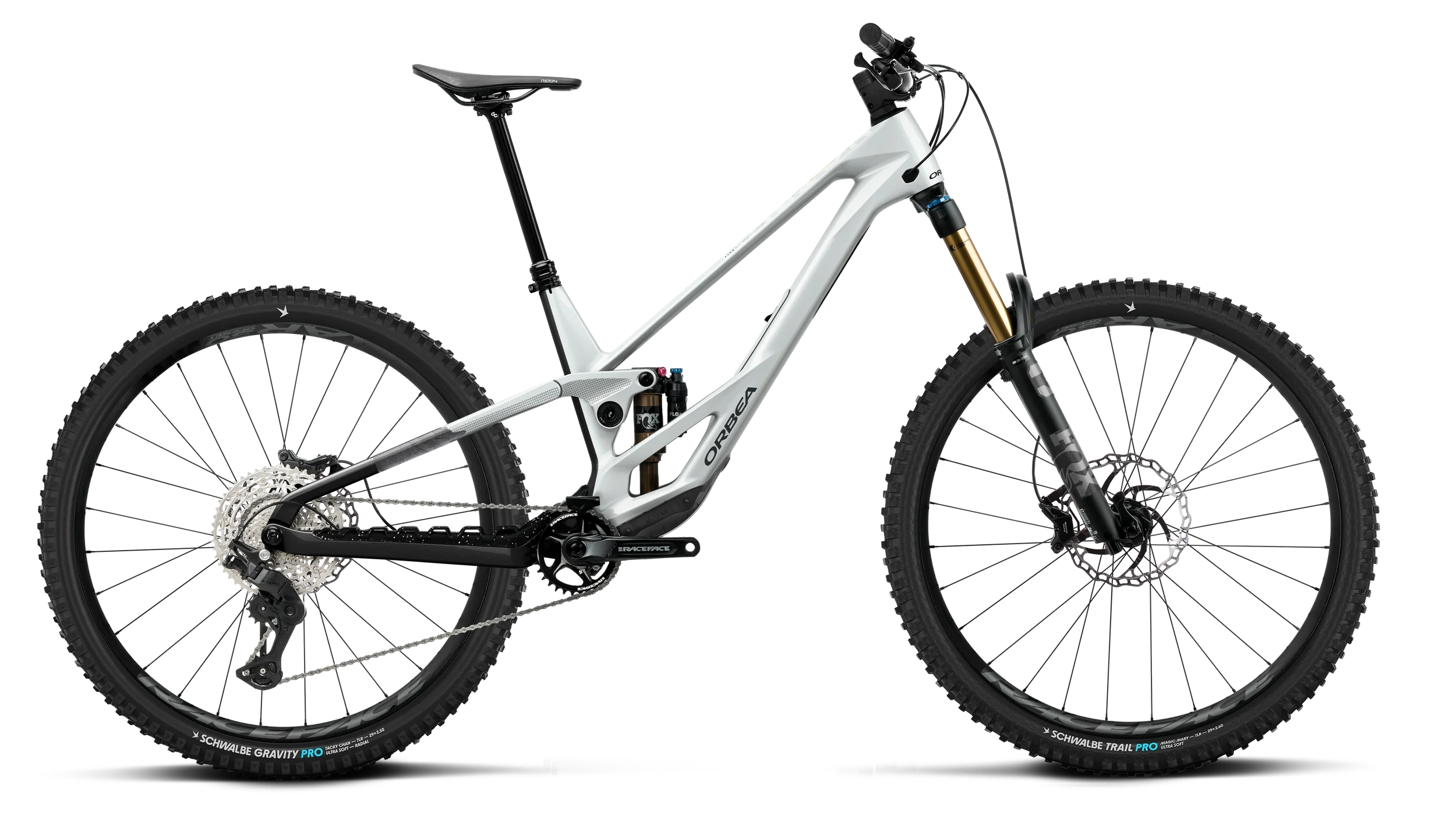

White Chich - Diamond Black (Gloss)

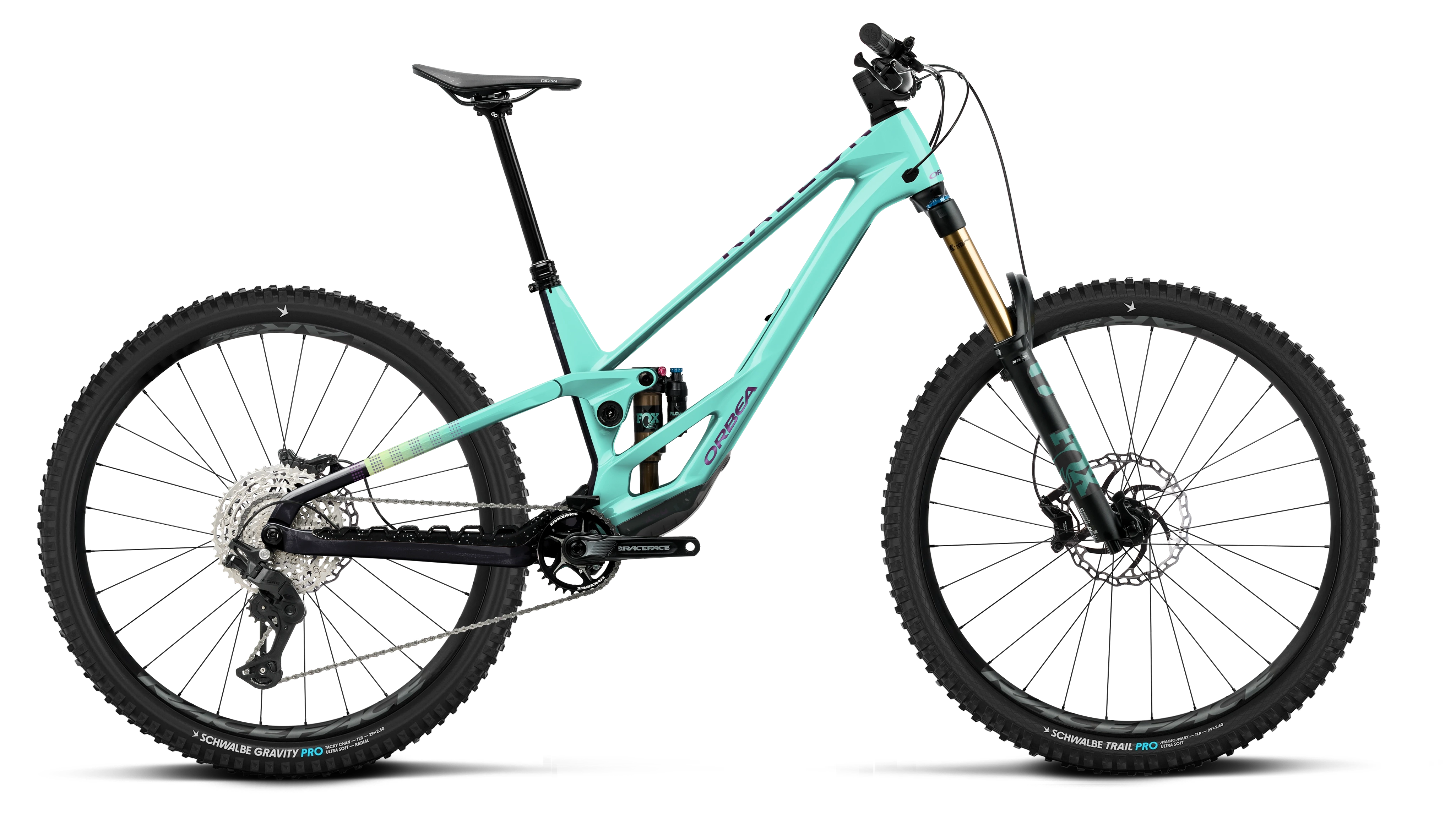

Aloha Green - Fantasy Purple Carbon View (Gloss)

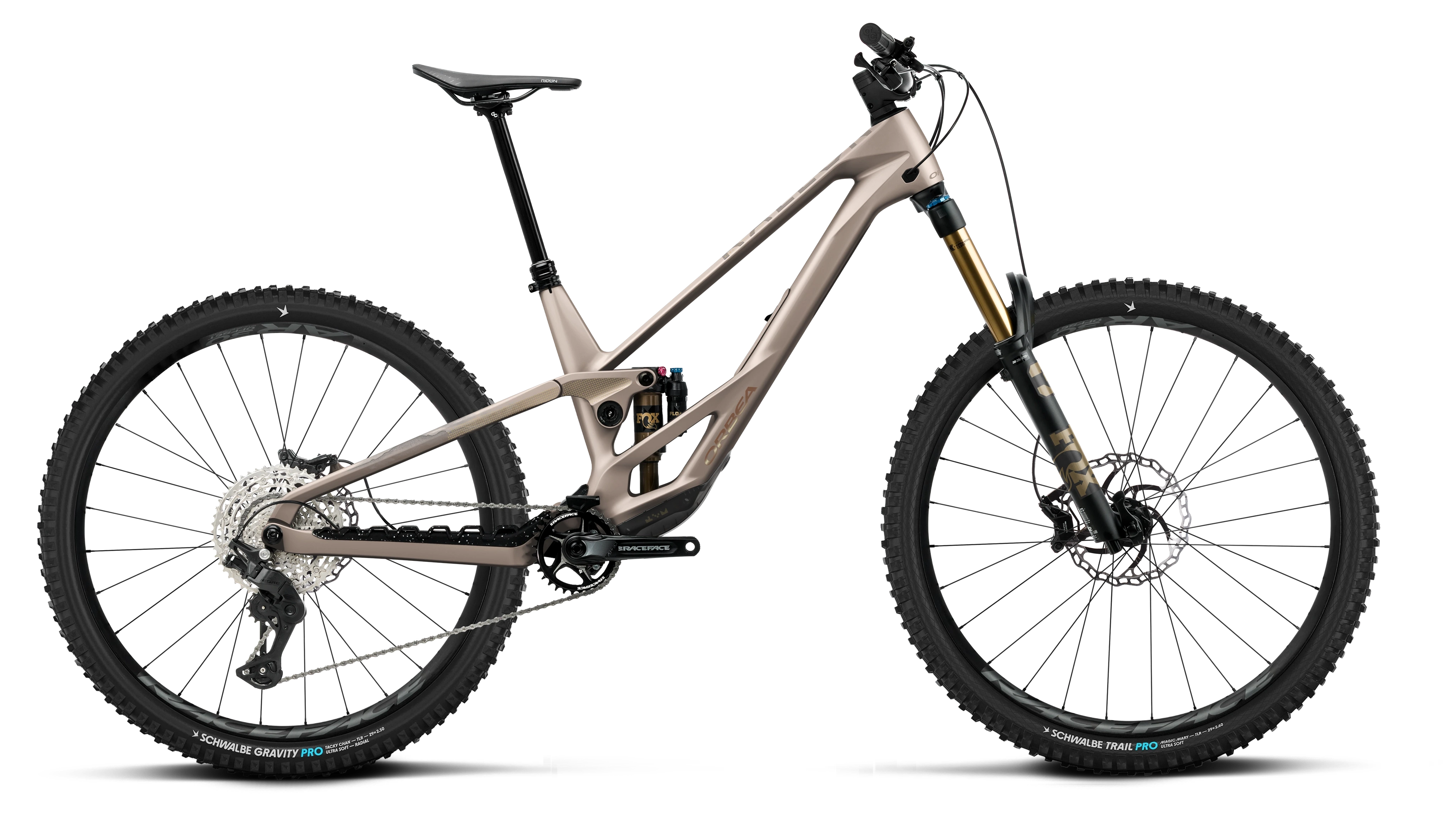

Nickel (Matt) - Nickel Chrome (Gloss)
Orbea Rallon
Gravity bred
Rallon is Orbea's gravity bike, a World Cup-proven platform built for enduro and downhill riding with a big emphasis on adjustability.
Downhill-developed suspension
Rallon uses the same active suspension kinematics in both its downhill and enduro versions, so enduro riders get DH-level performance to smooth the roughest tracks.
Progressive leverage ratio
The leverage curve stiffens as the bike moves deeper into its travel, giving predictable behaviour at all times. The curve is shaped by both the frame and the shock.
Electronic shock option
For enduro stages with short climbs mid-descent, an electronic shock that adjusts from trail data about 70 times a second is available through MyO.
Race-ready, adaptable geometry
Years of downhill testing shaped the geometry, which is more adaptable than before. Head angle and chainstay length can be adjusted.
Lockr storage
Orbea's in-frame Lockr storage lets you carry essentials inside the carbon downtube.
Tuned rigidity
Frame stiffness is tuned for the way a gravity bike loads up in corners and on landings.
Base configuration highlights
Base configuration
Rallon E10 build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Rallon OMR. 442mm chainstay length. Concentric Boost 12x148 rear axle. Pure Gravity geometry. Attitude Adjust. ISCG05
- Fork
- Fox 38 Float Factory 180, Grip X2, 15x110, Kashima
- Shock
- Fox Float X Factory Trunnion 2-Pos Evol LV Kashima custom tune 205x62.5mm
- Headset
- Alloy 1-1/2", Black Oxidated Bearing
Drivetrain
- Crankset
- Race Face Aeffect 32t
- Shifters
- Shimano Deore M6200 I-Spec EV
- Cassette
- Shimano CS-M6200 10-51t 12-Speed
- Chain
- Shimano M6100
- Rear derailleur
- Shimano Deore M7200 SGS Shadow Plus
- Chain guide
- e*thirteen CL55 30-36t black
Cockpit
- Handlebar
- OC Mountain Control MC20 Alu SL, Rise 35, Width 800
- Stem
- OC Mountain Control MC21, 0º
- Grips
- OC Lock On
Brakes
- Brakes
- Shimano MT620 Hydraulic Disc
Wheels & tyres
- Wheels
- Race Face AR 30c Tubeless Ready
- Tyres
- Schwalbe Magic Mary Radial TLR, 29x2.50, Gravity Pro, Ultra Soft
Components
- Saddle
- Fizik Terra Ridon X5 145mm
- Seatpost remote
- Shimano SL-MT500 I-Spec EV
Accessories
- Storage
- Accesories Containers
- Side bag
- Accesories Containers
- Computer mount
- OC Computer Mount CM-05, Garmin/Sigma
- Tools
- MT-20 FLP Multitool 2/3/4/5mm hex
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
