Orbea Rallon RS
Rallon RS-LTD Mullet
A full-suspension electric mountain bike (enduro) powered by the TQ-HPR40 motor and the TQ HPR 290Wh battery.
£12,499Recommended retail price
S / M / L / XLFrame sizes
2Colour options
TQ-HPR40Motor / TQ HPR 290Wh
Colours
Colour options
Available in 2 factory colours. Orbea MyO custom colours are available on request – ask in store.

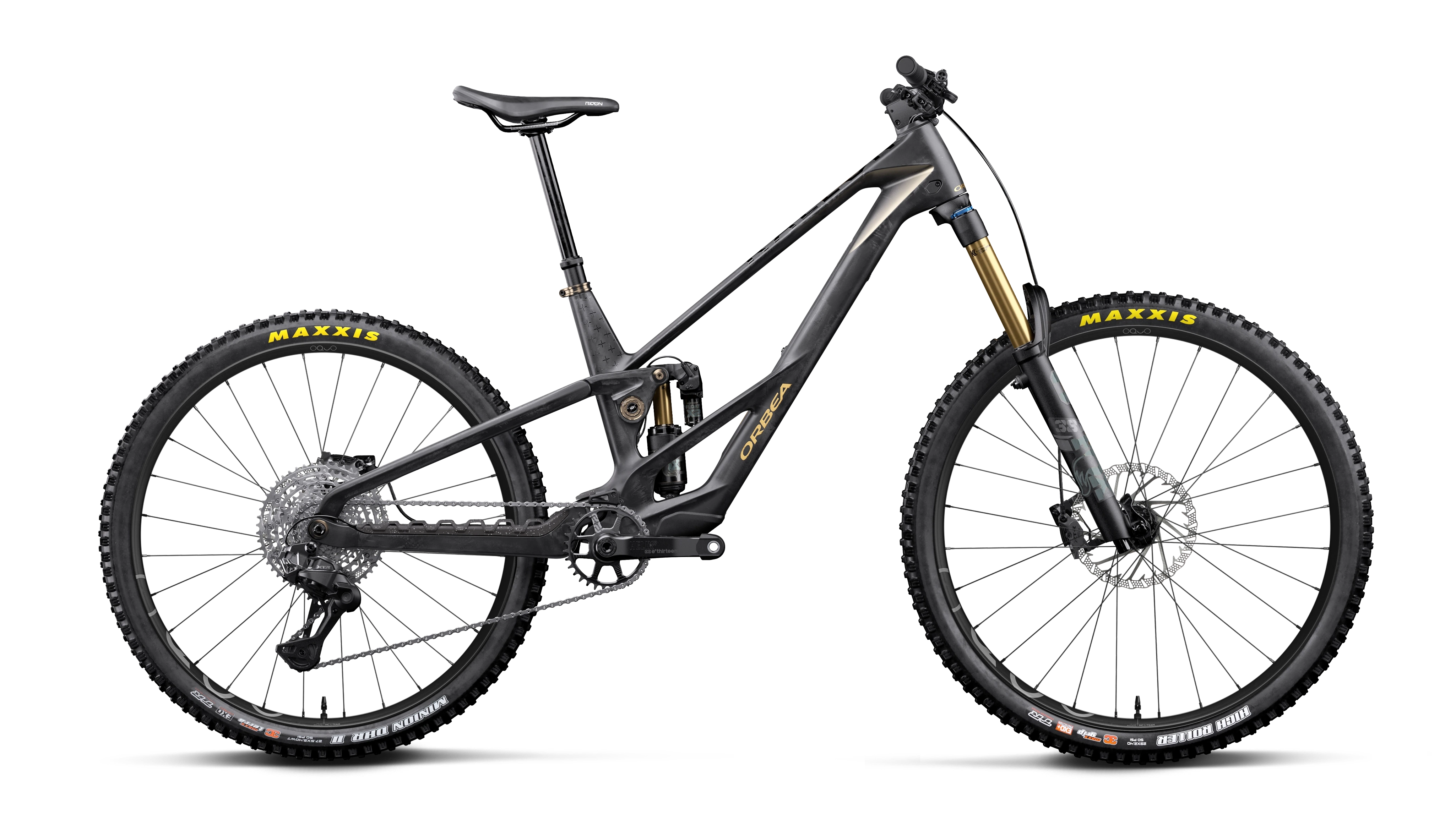

Fuel Carbon View - Magic Gold (Matt)

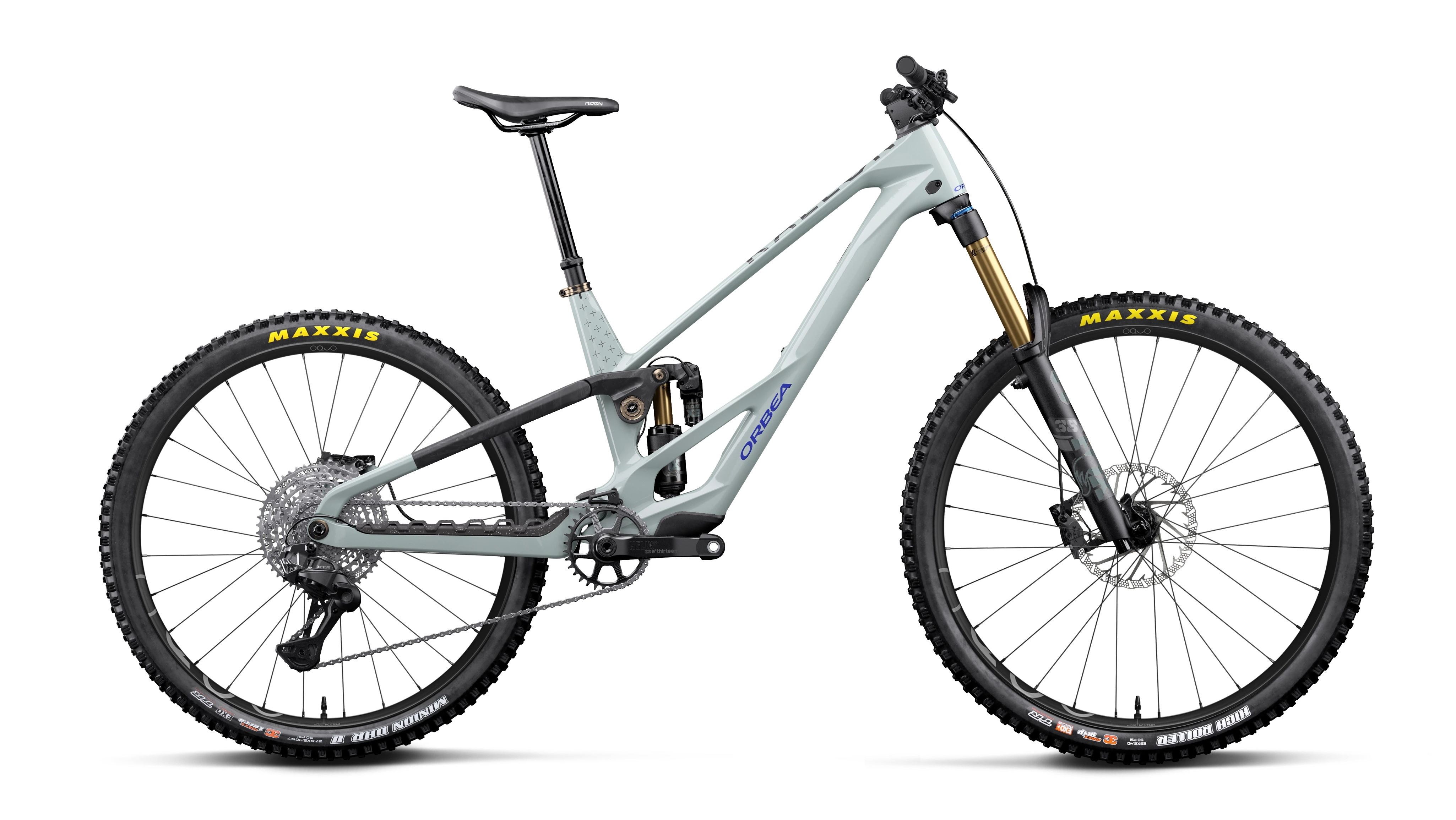

Frozen Concrete (Gloss) - Diamond C. View (Matt)
Base configuration highlights
FrameOrbea Rallon RS OMR. Mullet and 29" wheels compatible. Concentric Boost 12x148
ForkFox 38 Float Factory 180, Grip X2, QR15x110, Kashima
MotorTQ-HPR40
BatteryTQ HPR 290Wh
Rear derailleurShimano XTR M9260 12s
ShiftersShimano XTR M9250
Base configuration
Rallon RS-LTD Mullet build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Rallon RS OMR. Mullet and 29" wheels compatible. Concentric Boost 12x148
- Fork
- Fox 38 Float Factory 180, Grip X2, QR15x110, Kashima
- Shock
- Fox Float X2 Live Valve Neo Factory Trunnion Evol LV custom tune 205x62.5mm
- Headset
- Alloy 1-1/2", Black Oxidated Bearing
E-bike system
- Motor
- TQ-HPR40
- Battery
- TQ HPR 290Wh
- Remote / controller
- Orbea System Controller with eDropper Remote
- Charger
- TQ Charger 4A
Drivetrain
- Crank
- e*thirteen Helix Race alloy 32T
- Shifters
- Shimano XTR M9250
- Cassette
- Shimano CS-M9200 10-51t 12-Speed
- Chain
- Shimano CN-9100
- Rear derailleur
- Shimano XTR M9260 12s
- Chain guide
- Orbea eBike chainguide
Cockpit
- Handlebar
- OC Mountain Control MC10 Carbon, Rise 20, Width 800
- Stem
- OC Mountain Control MC11 Alu SL, 0º
Brakes
- Brakes
- Shimano XTR 9200 Hydraulic Disc
Wheels & tyres
- Wheels
- Oquo Mountain Control MC32TEAM
- Tyres
- Maxxis High Roller III 2.40" 60 TPI 3CG/EXO+/TR MaxxGripp
Components
- Saddle
- Fizik Terra Ridon X1 145mm
- Seatpost
- OC Mountain Control MC10, 31.6mm, Electronic Dropper
Accessories
- Computer mount
- OC Computer Mount CM-05, Garmin/Sigma
- Tools
- MT-20 FLP Multitool 2/3/4/5mm hex
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
