3T Racemax² Italia
For gravel racers: the super-reliable Shimano GRX Di2 2x electronic groupset and wide 3T aero Discus 45|40 LTD carbon wheels get you to the finish line first.
Speed, integration, versatility and fun — elevated.
The 3T Racemax² Italia is the latest evolution of 3T’s race-focused gravel platform, handmade in Italy using 3T’s Jazz Carbon manufacturing process. Built for fast gravel, mixed surfaces and riders who want road-bike speed with real-world tyre clearance, every detail has been refined for efficiency, control and integration.
Compared with the previous generation, the Racemax² Italia brings updated geometry, increased tyre clearance, integrated downtube storage and a rear light built directly into the seatpost. The frame is aerodynamically optimised around real gravel tyre widths, with clearance up to 51 mm WAM in 1x setups and up to 48 mm WAM in 2x setups.
Key Features
- Made in Italy using 3T Jazz Carbon construction
- Race-focused aero gravel geometry
- Tyre clearance up to 51 mm WAM with 1x drivetrains
- Up to 48 mm WAM clearance with 2x drivetrains
- Integrated downtube storage with Fidlock closure
- Integrated rear light in the seatpost
- CeramicSpeed SLT headset bearings
- Fully internal cable routing with 3T MORE Integrale technology
- UDH compatible
- Electronic groupset compatible only
- Aerodynamic updates delivering a claimed 1.5% gain over the previous generation
Why We Like It
The Racemax² Italia is built for riders who want a gravel bike that still feels fast, sharp and purposeful. It keeps the aerodynamic DNA of the original Racemax, but adds more clearance, cleaner integration and practical storage for modern gravel racing and fast all-road riding.
For riders looking for a premium Italian-made aero gravel bike with genuine race intent, the Racemax² Italia sits right at the sharp end of the category.
MADE IN ITALY, WITH JAZZ CARBON
TIRE CLEARANCE – UP TO 51 mm WAM
Since the launch of the first Racemax in 2020, tire trends have shifted towards wider profiles.
The Racemax² Italia now accommodates tires with a real width of up to 51 mm (Width-as-Measured) with 1x setups and up to 48 mm with 2x configurations.
INTERNAL STORAGE AND INTEGRATED REAR LIGHT
The clean design is enhanced by two new integration features:
The downtube houses a storage compartment that shields tools and tubes from the elements, with a wide opening and a secure and stable Fidlock closure.
The seatpost now integrates a practical rear light, perfectly aligned with the frame’s design.
1.5% FASTER THAN THE PREVIOUS GENERATION
Despite a slightly wider frontal area due to tyre size, simulations show that the Racemax² Italia is even more aerodynamic, with a measurable gain of 1.5%.
This improvement comes from even cleaner lines and details, such as front caliper bolts shielded by a cover plate.
Designed only for electronic groupsets.
Specs

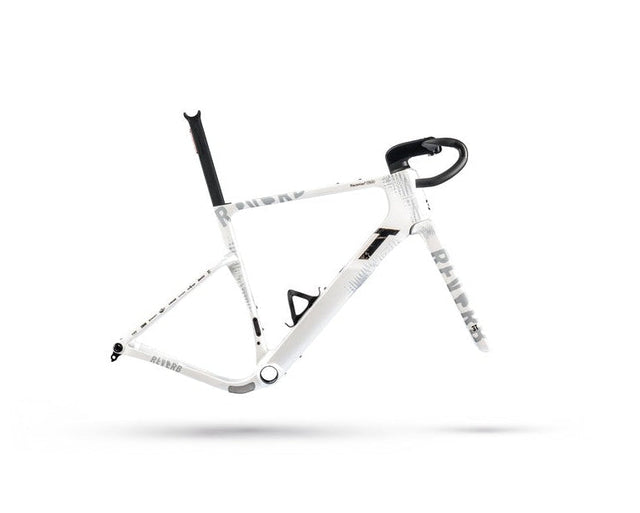

RACEMAX 2 ITALIA ~ FRAMESET
-

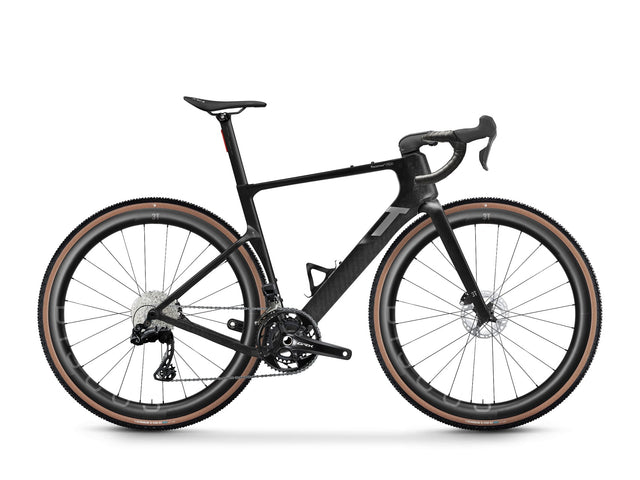

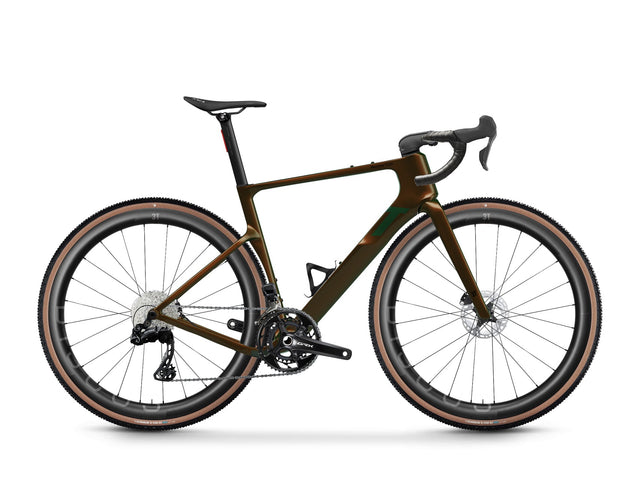

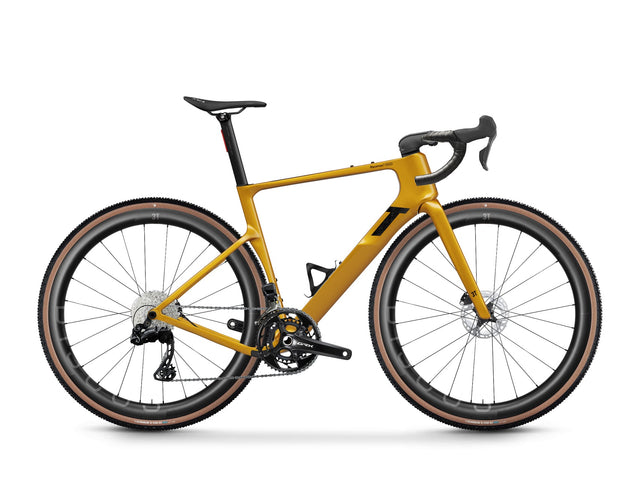

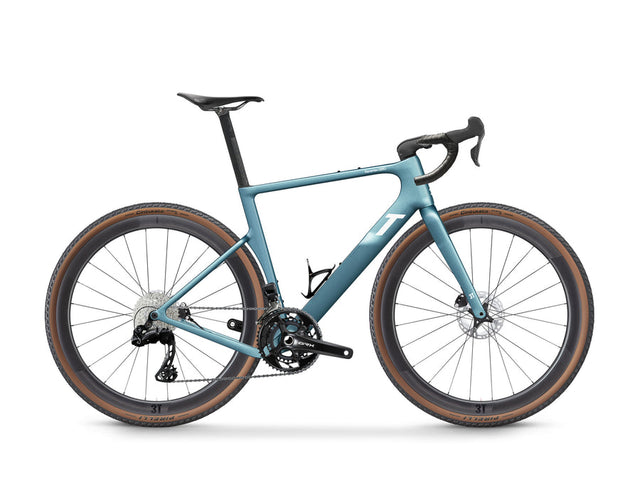

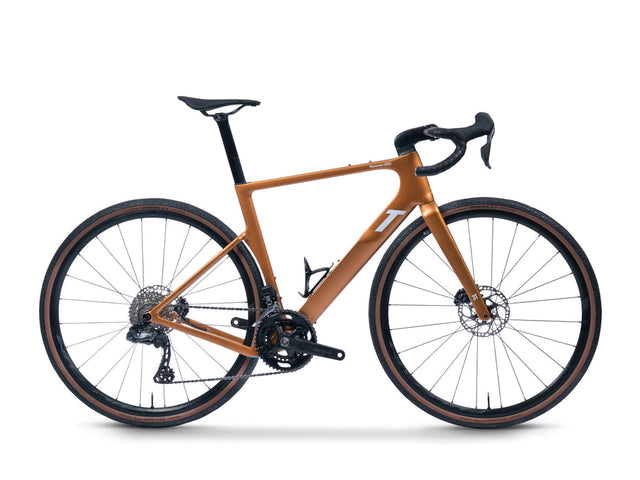

RACEMAX 2 ITALIA ~ GRX Di2 2X12 DISCUS 45|40
- FRAME
- Racemax2 ITALIA Integrale (UDH). Integrated storage with Fidlock closure system
- FRAME MATERIAL
- Jazz Carbon: 3T’s in-house filament-winding using a combination of high-strength/high-stiffness fibers, combined with RTM resin injection. Made in Italy
- FORK
- 3T Fango RaceMax2 Integrale w/ compact crown
- HEADSET
- Ceramic Speed SLT 44/33 (36/45deg) I 52/42 (45/45deg)
- THRU-AXLE
- 100x12 front - 142x12 rear
- HANDLEBAR
- 3T Aeroghiaia Integrale LTD (S&M: 40cm - L&XL: 42cm)
- BAR TAPE
- 3T Prendo Speed
- STEM
- 3T More (K-Edge GPS mount included) - (S: 80mm - M:90mm - L: 100mm - XL: 110mm )
- BOTTLE CAGE
- 3T Carbon front load water bottle cage
- REAR DERAILLEUR
- Shimano GRX Di2 RD-RX825 12s
- FRONT DERAILLEUR
- Shimano GRX Di2 FD-RX825 12s
- SHIFT/BRAKE LEVERS
- Shimano GRX Di2 ST-RX825 12s
- BRAKES
- Shimano GRX BR-RX820 w/ Shimano RT-CL800 160MM rotors
- CRANKSET
- Shimano GRX FC-RX820-2 12s 48/31( S&M: 170 mm - L&XL: 172,5 mm )
- CASSETTE
- Shimano Ultegra CS-R8101-12 11-34T
- WHEELSET
- 3T Discus 45|40 LTD
- TIRES
- Schwalbe G-One RS 700×45
- SEATPOST
- 3T Racemax/Racemax2 ITALIA seatpost for Ritchey clamp with integrated light system
- SADDLE
- Fizik Vento Argo R1 Light 140 mm
Geometries
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height* (cm) | 157-171 | 168-180 | 176-186 | 183-195 |
| Rider Height* (inches) | 5'2"-5'7" | 5'6"-5'11" | 5'9"-6'1" | 6'0" 6'5" |
| 01. Stack | 547 | 569 | 589 | 609 |
| 02. Reach | 367 | 377 | 385 | 393 |
| 03. Headtube angle | 70.5 | 71.5 | 71.5 | 71.5 |
| 04. Fork axle-crown | 383 | 383 | 383 | 383 |
| 05. Headtube length | 138 | 152 | 173 | 197 |
| 06. BB drop | 79 | 79 | 79 | 76 |
| 07. Seattube angle | 74 | 74 | 74 | 74 |
| 08. Seattube length | 463 | 491 | 510 | 537 |
| 09. Toptube length | 522 | 538 | 552 | 566 |
| 10. Front center | 609 | 607 | 622 | 636 |
| 11. Rear center | 420 | 420 | 420 | 420 |
| 12. Wheelbase | 1017 | 1015 | 1029 | 1045 |
*Rider heights are approximations. For more accuracy, compare stack/reach with your current bike or visit your 3T retailer.
