Alloy adventure drop bar

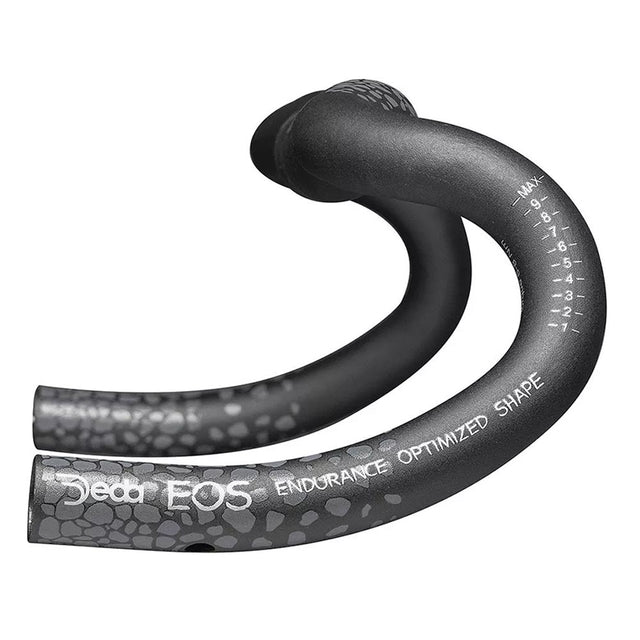

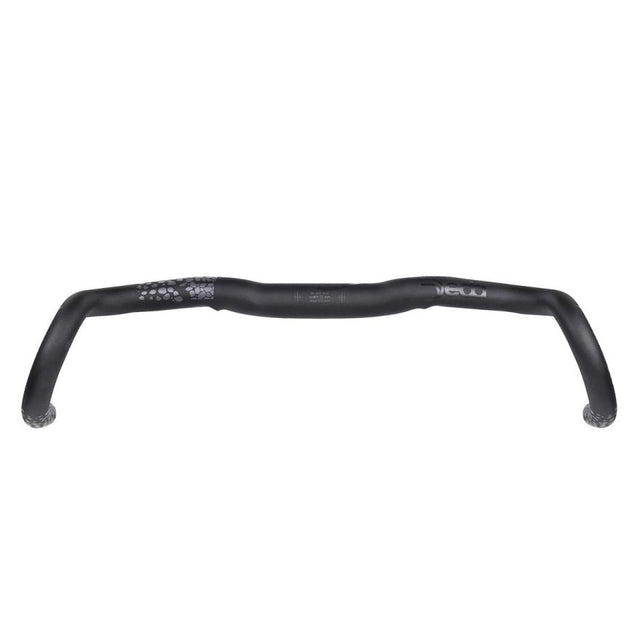

Deda Gera Alloy Gravel and Adventure Handlebar
A comfort-first alloy gravel bar with a short, shallow Endurance Optimised Shape, a wide 24-degree flare and a little rise, backsweep and downsweep for long days and bikepacking trips.
Highlights
Why we rate it
Endurance Optimised Shape
A 55mm reach and 100mm drop keep the hoods close and the drops easy to use, so you can spend more time low without stretching.
Big flare for control
24 degrees of flare and 3 degrees of outsweep spread the drops wide for confident handling on rough tracks and descents.
Swept and raised tops
A 10mm rise, backsweep and 5 degrees of downsweep set the tops at a relaxed angle that suits long rides and loaded bikes.
Clamp area for kit
The 90mm centre section leaves room for lights, a computer mount or Deda clip-on bars such as Parabolica and Fastblack2.
Fitting
Compatibility
Takes any 31.7mm stem. It is DCR compatible for internal routing with a Deda DCR stem such as the Superbox, and can also be routed externally. Full width at the drops is 52, 54 and 56cm for the 42, 44 and 46cm sizes.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Shape
- EOS (Endurance Optimized Shape)
- Material
- Double-butted 6061 aluminium
- Clamp diameter
- 31.7mm
- Reach
- 55mm
- Drop
- 100mm
- Flare
- 24°
- Outsweep
- 3°
- Rise
- 10mm
- Backsweep
- 12° / 12mm
- Downsweep
- 5°
- Clamp area width
- 90mm
- Width measurement
- Outside to outside at the lever position
- Weight
- 310g (42cm)
- Finish
- Polish on Black (POB)
In the box
- Includes
- Deda Gera Alloy handlebar
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
