Alloy gravel drop bar

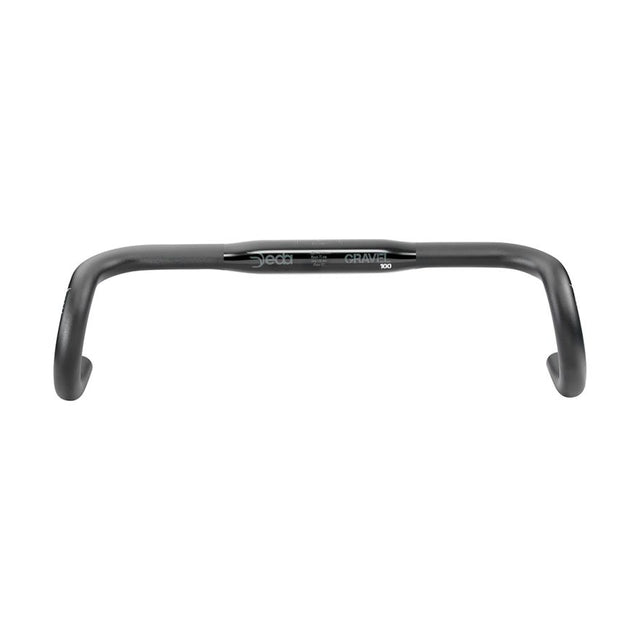

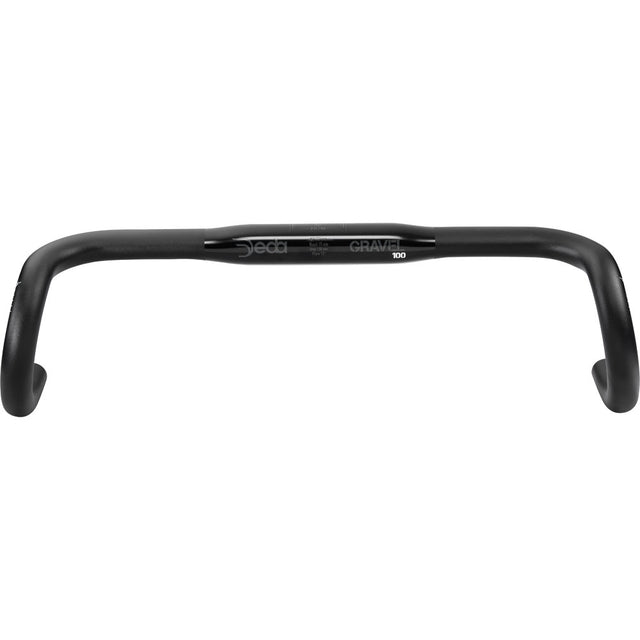

Deda Gravel100 RHM Gravel Handlebar
Deda's Zero100 RHM road shape reworked for gravel: a 12-degree flare widens the drops for control off-road while the tops and hoods stay familiar and road-like.
Highlights
Why we rate it
Road shape, gravel stance
Built on the Zero100 RHM profile, so the hoods and tops feel like a road bar while the flared drops sit noticeably wider for stability on loose ground.
Triple-butted 7050 alloy
The tubing is triple-butted to put material where loads are highest, keeping the bar light at around 260g in the 42cm width.
Wide drops
The 12-degree flare adds roughly 60mm at the bottom of the bar compared with the width at the hoods, giving more leverage when the surface gets rough.
Room for accessories
A slightly aero, ergonomic top section and a generous 31.7mm centre area leave space for a computer, lights or Deda clip-on extensions such as Parabolica and Fastblack2.
Di2 ready
A drilled entry hole lets you fit a Shimano Di2 bar-end junction box.
Fitting
Compatibility
Fits any stem with a 31.7mm handlebar clamp; Deda recommends pairing it with the Zero100 stem. The centre section takes Deda clip-on bars including the Parabolica Uno and Due extensions.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Shape
- RHM (Rapid Hand Movement)
- Material
- Triple-butted 7050 aluminium
- Clamp diameter
- 31.7mm

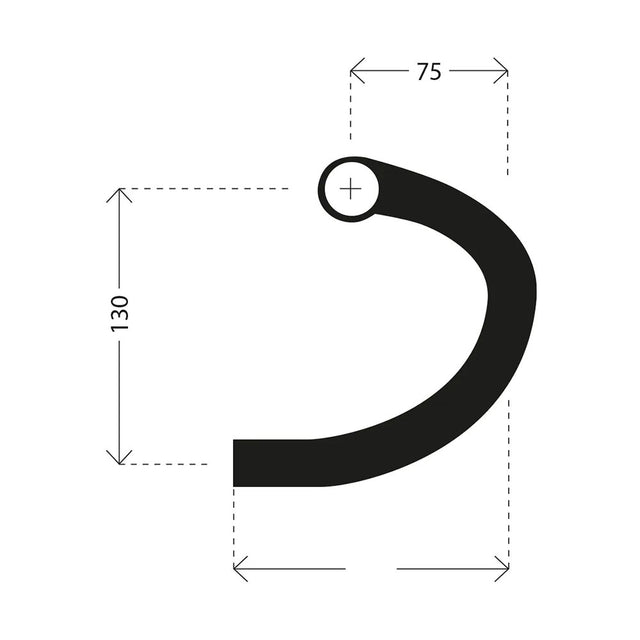

- Reach
- 75mm
- Drop
- 130mm
- Flare
- 12°
- Outsweep
- 2°
- Widths
- 40, 42, 44, 46cm
- Width measurement
- Outside to outside at the lever position
- Di2
- Drilled for bar-end junction box
- Full width (at drops)
- 46, 48, 50, 52cm
- Weight
- 260g (42cm)
- Finish
- Black on Black (BOB)
In the box
- Includes
- Deda Gravel100 handlebar
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
