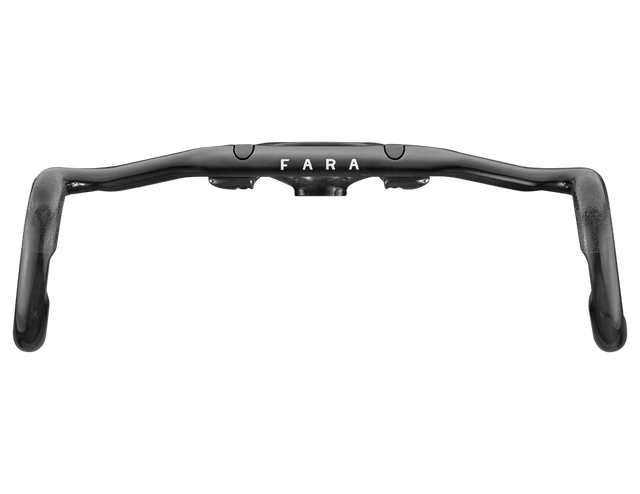

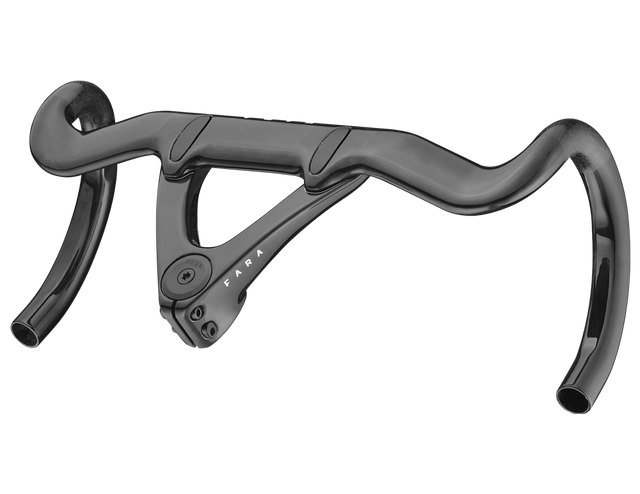

Our Modular Cockpit offers enhanced ergonomics and fit options thanks to the modular bar and stem construction as well as a 10mm fore-aft adjustment, all in a lightweight and robust carbon construction. The flat interface between bar and stem is fastened securely by four bolts which also allow for mounting Aerobars as an option, while still enabling full internal cable routing.
• Advanced ergonomic design
• Ride-tuned vibration absorpsion for gravel and adventure riding
• 10mm adjustable reach
• Compatible with all bikes with 1-1/8´ steerer tube (28.6mm)
• Universal computer mount
Rider-first handlebar design
The ergonomic shape of the Modular Cockpit’s design is highlighted by a backsweep and downslope inspired by the body’s natural hand position. In addition to being more comfortable and increasing blood circulation to wrists and hands, it naturally encourages a more efficient riding position by tucking your elbows inwards.

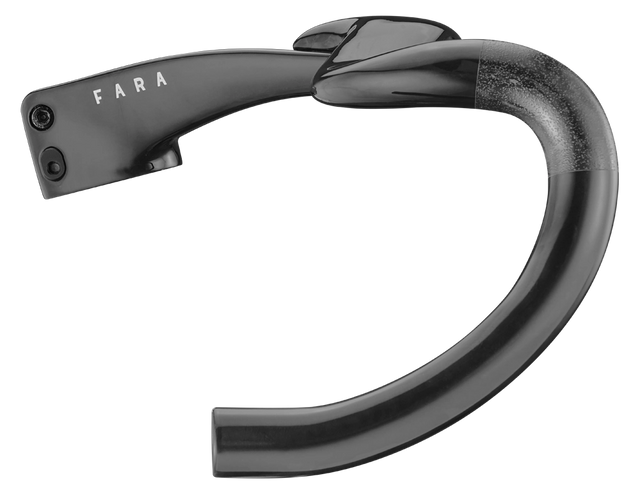

10mm adjustable reach
The stem design includes two mounting positions allowing the reach to be adjusted fore-aft by 10mm. Using multiple positions, you are able to fine-tune your position and adapt to diverse riding types. Opt for a longer reach for a fast-paced, aero position or slightly shorter for increased comfort and control on multi-day bikepacking adventures.
4 sizes cover a wide range of riding styles
The narrowest 360mm and 385mm widths (measured at brake hoods) are design with racing and performance in mind, featuring 8 degree canting angles. On the wider 415 and 440 sizes, the canting increases to 10 and 12 degrees respectively, designed for more adventurous riding.

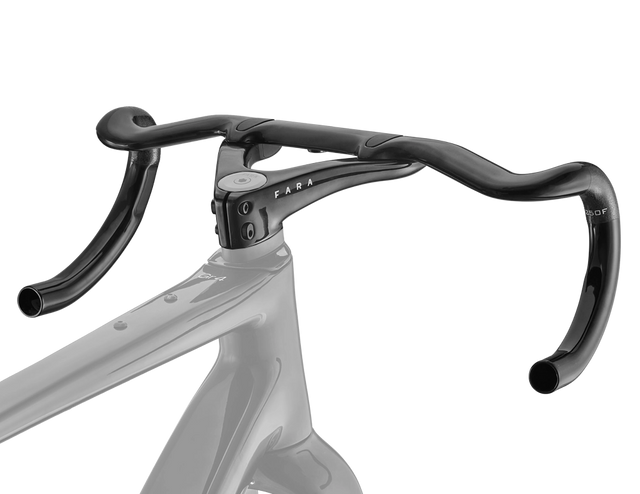

Compatible with all bikes with 28.6mm 1-1/8´ steerer tube
Even though our cockpit is designed to integrate with Token Cable Box system, you can use it on any bike wth a standard 28.6mm 1-1/8´ steerer tube. If your bike does not use this headset system, the cables can be routed through the handlebars alone, or through the handlebars and stem before they enter the frame through the head tube or the frame in other places.
