3T · Fastest Gravel

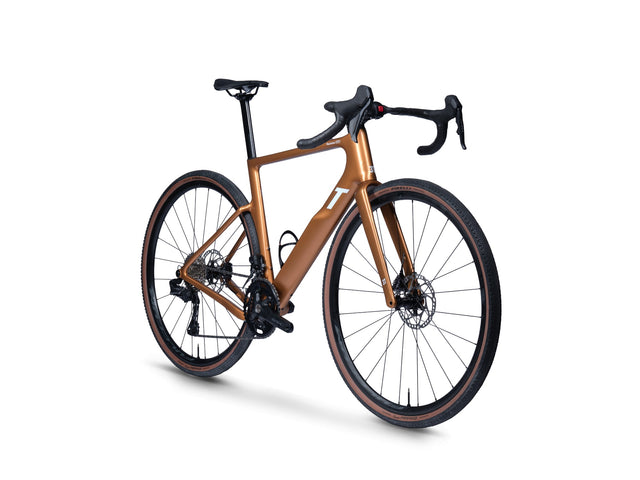

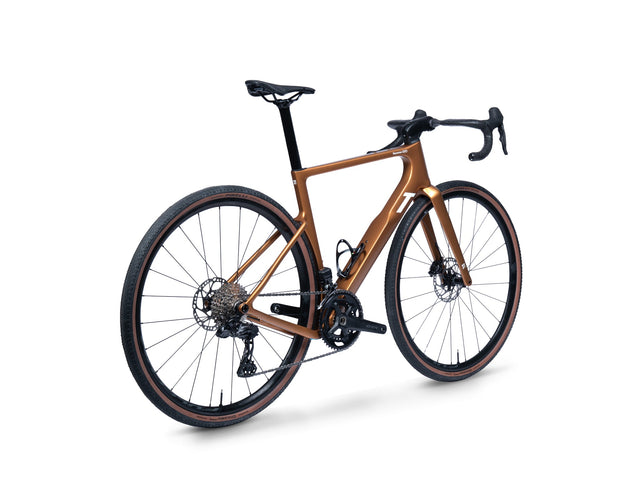

Racemax WPNT GRX Di2 2×12
An accessible way into fast gravel: Racemax race geometry with a frame painted in-house in Italy.
Colours
Colour options
Available in 4 colours, painted in Italy.
Bronzo

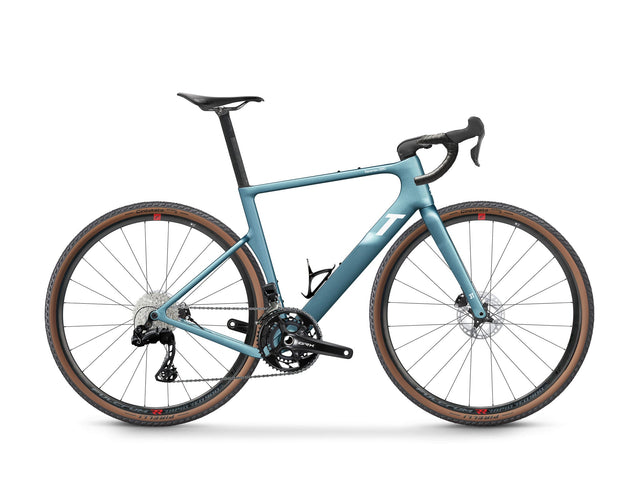

Aliseo
Zefiro

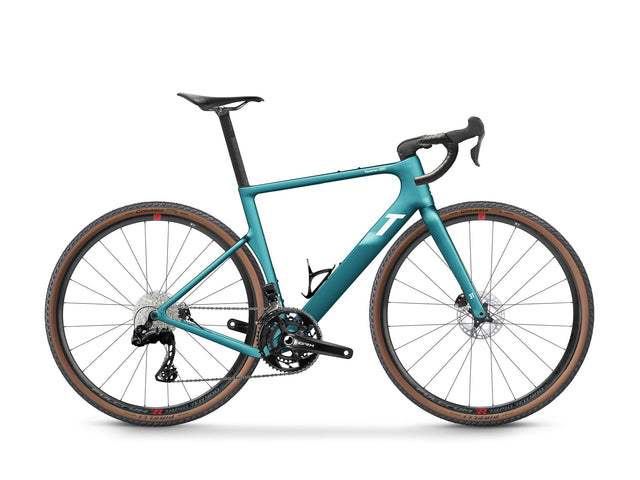

Turchese
3T
Overview
Rider profile
Gravel racers and all-road riders looking for an accessible entry into fast gravel.
Designed for
Riders who want a capable platform that covers everything from 35 mm road tyres up to 61 mm on 650b wheels.
Compared to
Similar geometry to Racemax² ITALIA at a lower price point, fully compatible with 700c and 650b wheels for maximum flexibility and speed.
Specification
Racemax WPNT GRX Di2 2×12 specification
Specification as supplied by 3T. Components may change subject to availability.
Build
- Frame
- Racemax UDH – painted in Italy
- Technology
- Integrale
- Groupset
- Shimano GRX Di2 2×12 – front and rear derailleur RX825
- Crank
- Shimano GRX FC-RX610-2 46/30
- Cassette
- Shimano CS-HG710-12 11-36T
- Wheels
- Fulcrum Rapid RED 900 700c or Fulcrum Racing 600 700c (depending on availability)
- Tyres
- Pirelli Cinturato Gravel H 700×40
- Handlebar
- 3T Aeroghiaia Integrale LTD
- Stem
- 3T More
- Saddle
- San Marco Shortfit or Shortfit 2.0 Off Road (depending on availability)
Upgrade options
- Wheels
- 3T Discus 40|30
- Wheels
- 3T Discus 45|32 LTD
- Wheels
- 3T Discus 45|40 LTD (from November)
Ask us for upgrade pricing.
Geometry & sizing
Geometry
All measurements in millimetres unless stated. Rider heights are approximate. Not sure of your size? Our bike fit team can help you choose.
Geometry chart
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Rider height (cm) | 145-160 | 157-171 | 168-180 | 176-186 | 183-195 | 192 and up |
| Rider height (inches) | 4'9"-5'3" | 5'2"-5'7" | 5'6"-5'11" | 5'9"-6'1" | 6'0"-6'5" | 6'3" and up |
| 01. Stack | 522 | 544 | 566 | 586 | 606 | 634 |
| 02. Reach | 353 | 364 | 374 | 382 | 390 | 401 |
| 03. Headtube angle | 68.7° | 68.9° | 70.7° | 71.7° | 72.2° | 72.2° |
| 04. Fork axle-crown | 375 | 375 | 375 | 375 | 375 | 375 |
| 05. Headtube length | 125 | 147 | 161 | 180 | 201 | 230 |
| 06. BB drop | 77 | 77 | 77 | 75 | 73 | 73 |
| 07. Seattube angle | 74° | 74° | 74° | 74° | 74° | 74° |
| 08. Seattube length | 436 | 463 | 490 | 518 | 545 | 572 |
| 09. Toptube length | 501 | 518 | 536 | 549 | 563 | 582 |
| 10. Front center | 597 | 612 | 607 | 612 | 622 | 642 |
| 11. Rear center | 418 | 418 | 418 | 418 | 418 | 418 |
| 12. Wheelbase | 1003 | 1018 | 1013 | 1019 | 1028 | 1048 |
Headtube figures are road-equivalent: the Racemax fork is road length, so deduct 25 mm to compare with gravel bikes using standard gravel forks.
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
