Flared carbon gravel bar

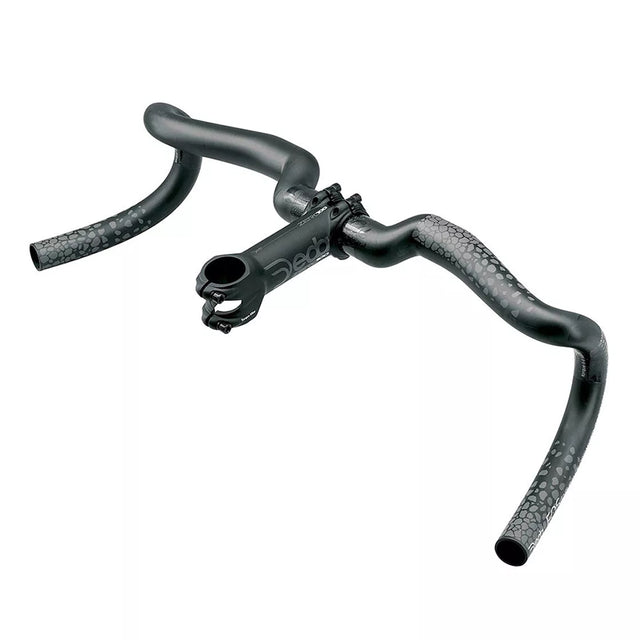

Deda Gera DCR Carbon Gravel Handlebar
A 200g carbon gravel bar with a short reach, generous 16° flare and backsweep for comfort, plus fully internal routing via Deda's DCR system.
Highlights
Why we rate it

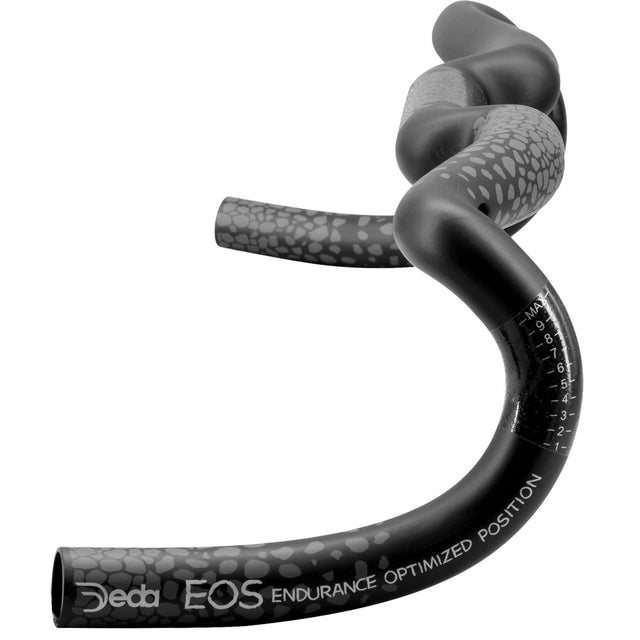

Endurance-optimised shape
Deda's EOS geometry gives plenty of hand positions, low and aggressive when you want to go fast or relaxed for long days out, making it a natural fit for adventure and touring builds.
Flared and swept
16° of flare at the drops adds stability off-road, while 12° of backsweep and a 7mm rise make the tops more comfortable.
Short and compact
A 40mm reach brings the levers closer and the compact 100mm drop makes for quick, comfortable moves into the drops.
Two clip-on positions
Clip-on extensions can sit in the traditional centre clamp area, or further out and higher for comfort; the wide centre section also takes Parabolica and Fastblack 2 bars.

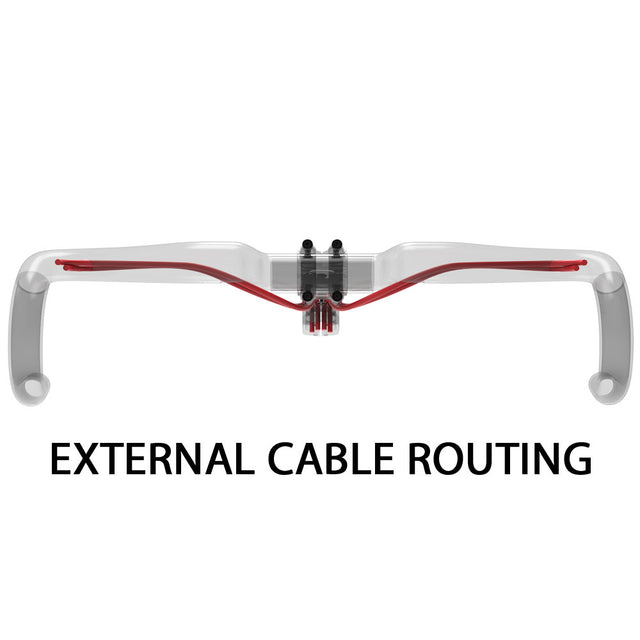

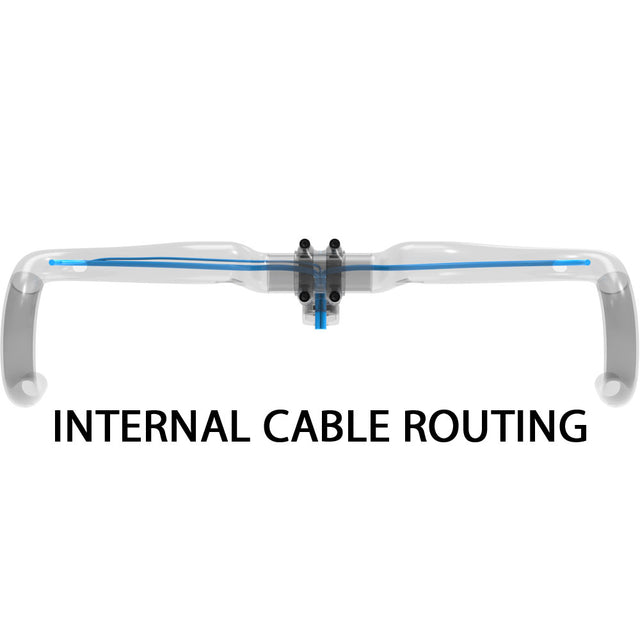

Internal or semi-internal
Route cables fully inside the bar via DCR on compatible frames, or semi-internally elsewhere.
Fitting
Compatibility
Needs a 31.7mm clamp stem. Full internal routing requires a DCR-compatible frame and headset; otherwise route semi-internally. Accepts Deda Parabolica and Fastblack 2 clip-on bars.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Shape
- EOS (Endurance Optimised Position)
- Material
- UD carbon
- Clamp diameter
- 31.7mm
- Reach
- 40mm
- Drop
- 100mm
- Flare
- 16°
- Rise
- 7mm
- Backsweep
- 12°
- Width
- 44cm (52cm), 46cm (54cm), 48cm (56cm), outside to outside
- Cable routing
- DCR full internal or semi-internal
- Finish
- Polish on Black
- Weight
- 200g (44cm)
In the box
- Includes
- Handlebar
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. Our workshop can fit and set up your Deda cockpit, including internal (DCR) cable routing. For sizing, compatibility or availability, call 0203 148 6764 or email hello@thecyclecollective.cc.
