Thru-axle rack adapter

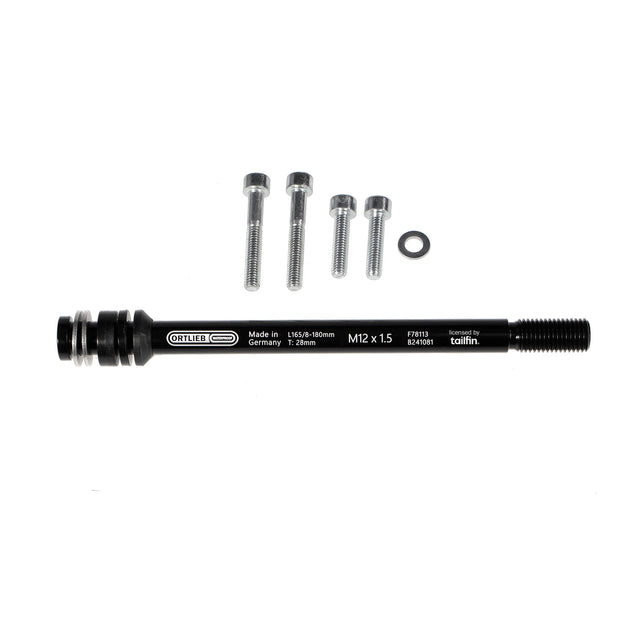

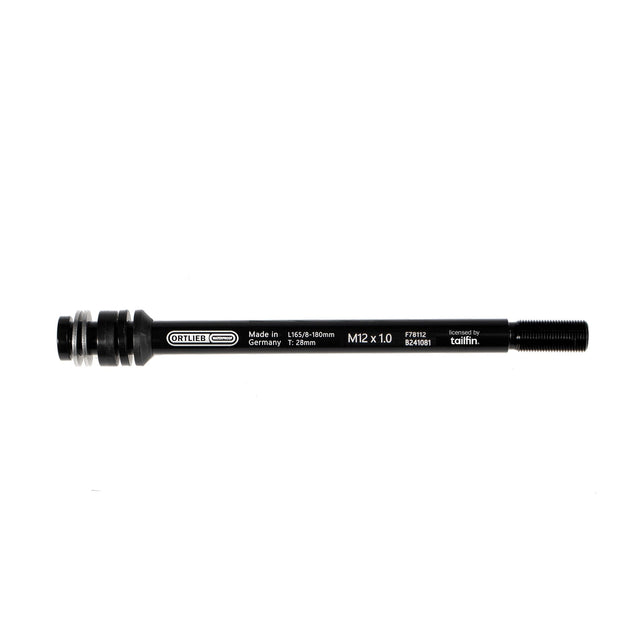

ORTLIEB Thru Axle M6-Connector Rack Adapter
A replacement rear thru-axle with built-in M6 threads, giving a solid rack mount on bikes without eyelets and the recommended fitting for the Quick-Rack L and XL.
Highlights
Why we rate it
Rack mounts where there are none
Integrated M6 threads on the axle give a strong lower mounting point for racks.
Adjustable length
Included spacers tune it to axle lengths from 165 to 180mm.
Three thread pitches
Available in 1mm, 1.5mm and 1.75mm pitches, including SRAM UDH/Transmission compatibility.
Machined aluminium
Light, stiff and made in Germany.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Weight
- 54g
- Material
- Aluminium
- Width
- 18 cm
- Axle length
- Replaces axles up to 180mm; 165-180mm via spacers
- Thread pitch
- 1mm, 1.5mm or 1.75mm
- Compatibility
- M12 thru-axle frames, SRAM UDH/Transmission
- Max payload
- 26kg
- Recommended for
- Quick-Rack L and XL
- Included
- Spacer, 2 x M6x40 and 2 x M6x25 bolts, 3 x M6 washers
- Made in
- Germany
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, fitting or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
