Gravel 1x spindle power meter crank arms

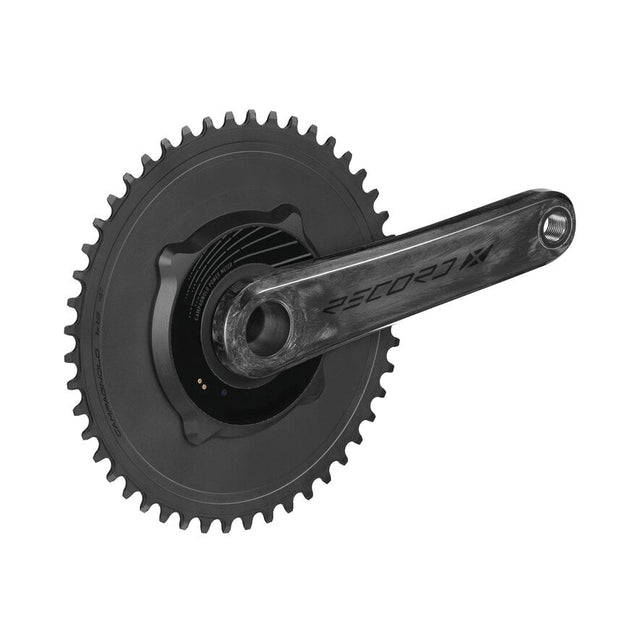

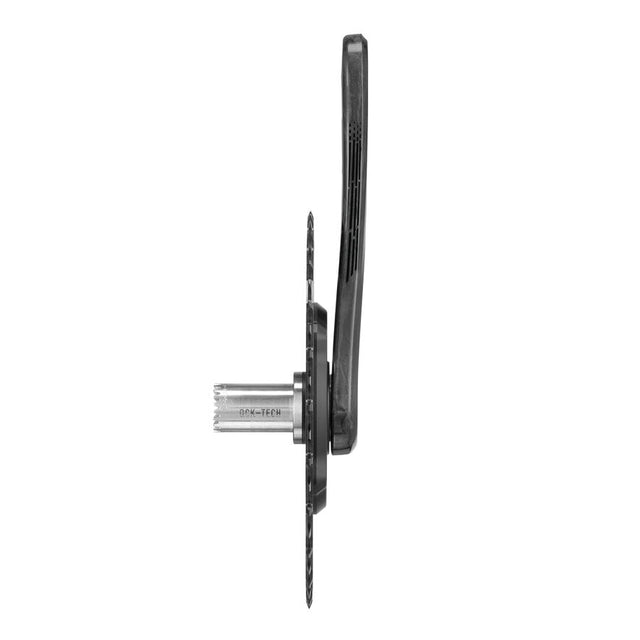

Campagnolo Record X 1x13 Gravel Power Meter Crank Arm Set
A more affordable route to Campagnolo's 13-speed gravel power, using the CPM axle meter with eight strain gauges and ±2% dual-sided accuracy. Carbon arms on a steel spindle; chainring sold separately.
Highlights
Why we rate it
CPM power meter
Campagnolo's CPM system puts eight strain gauges and a gyroscope in the axle to measure torque from both legs.
Made for gravel
A 152mm Q-factor and 47.5mm chainline give room for wide tyres on gravel frames.
Steel spindle
Carbon arms on an ASTM2-rated steel spindle keep the cost down while staying robust off-road.
Platform charging
Uses the magnetic quick-snap cable shared by Record and Super Record 13, with an LED for charge level.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Groupset
- Record X 1x13 (wireless 13-speed)
- Power meter
- CPM, axle-based, 8 strain gauges plus integrated gyroscope
- Claimed accuracy
- ±2% (dual-sided)
- Crank arms
- Carbon fibre
- Spindle
- Steel (ASTM2), Ultra-Torque, QCK-Tech bottom bracket
- Q-factor
- 152mm
- Chainline
- 47.5mm
- Crank lengths
- 165, 170, 172.5mm
- Compatible chainrings
- Aero 1x rings, 38–52T (sold separately)
- Weight (reference)
- 717g complete crankset, 172.5mm with 40T ring and bearings
- Charging
- Magnetic quick-snap cable (Record and Super Record 13 platform)
- Connectivity
- MyCampy app and compatible bike computers
In the box
- Includes
- Left and right carbon crank arms with power meter spindle (chainring sold separately)
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
