Gravel 1x spindle power meter crank arms

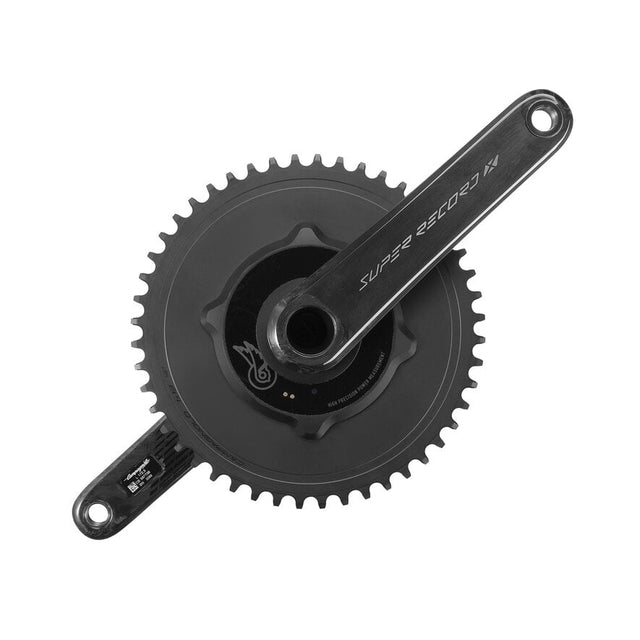

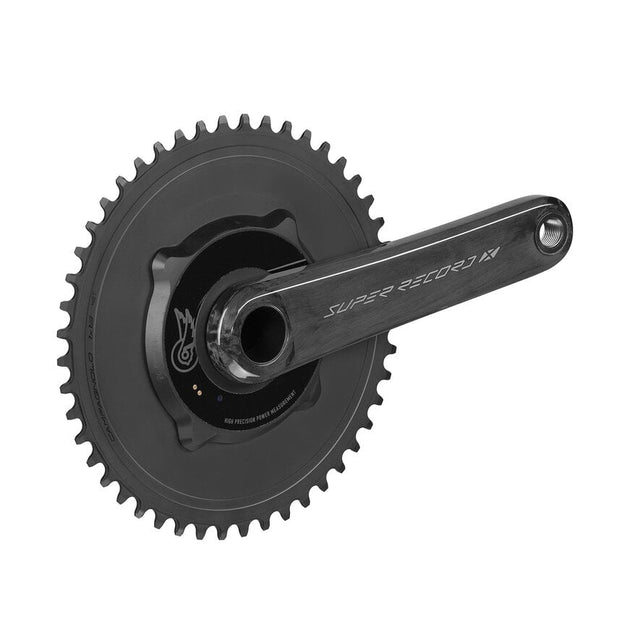

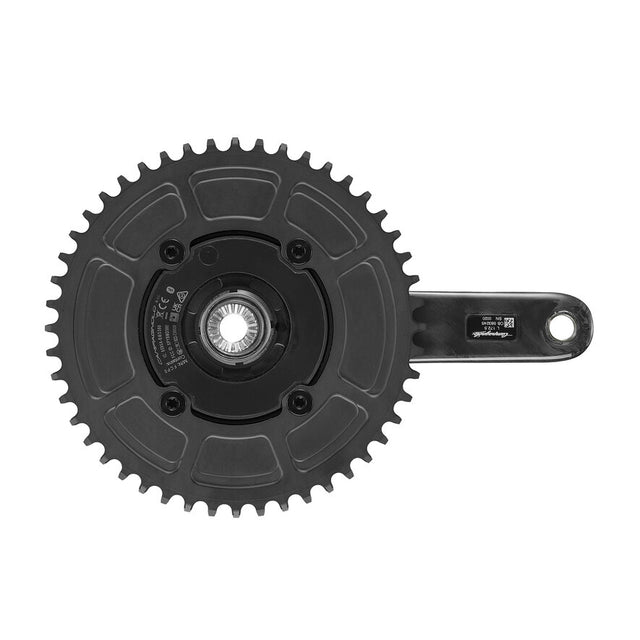

Campagnolo Super Record X 13 Speed Power Meter Crank Arms
Campagnolo's top gravel crank arms with the HPPM power meter built into the axle, measuring both legs to ±1%. Sized for gravel frames with a 152mm Q-factor and 47.5mm chainline; chainring sold separately.
Highlights
Why we rate it
HPPM in the axle
Sixteen strain gauges and a gyroscope sit inside the Ultra-Torque axle, so the meter reads torque directly without adding anything to the arms.
Gravel geometry
The wider 152mm stance and 47.5mm chainline suit gravel frames and big-volume tyres.
One charger for the group
Recharges with the same magnetic quick-snap cable used across the Super Record 13 platform, with an LED for battery status.
MyCampy set-up
Power, battery level and settings are handled in the MyCampy app or shown on a compatible bike computer.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Groupset
- Super Record X 1x13 (wireless 13-speed)
- Power meter
- HPPM, axle-based, 16 strain gauges plus integrated gyroscope
- Claimed accuracy
- ±1%
- Crank arms
- Carbon fibre
- Axle
- Ultra-Torque with QCK-Tech bottom bracket interface
- Q-factor
- 152mm
- Chainline
- 47.5mm
- Crank lengths
- 165, 170, 172.5, 175mm
- Compatible chainrings
- Super Record X aero 1x rings, 38–52T (sold separately)
- Weight (reference)
- 648g complete crankset, 172.5mm with 40T ring and bearings
- Charging
- Magnetic quick-snap cable (Super Record platform)
- Connectivity
- ANT+ and Bluetooth; MyCampy app
In the box
- Includes
- Left and right carbon crank arms with power meter axle (chainring sold separately)
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
