Favero Assioma PRO MX Replacement Pedal Body
A single left or right SPD-compatible body for Assioma PRO MX power pedals, for when the original is worn or damaged. The electronics stay in the spindle, so only the body needs replacing.
Highlights
Why we rate it
Keep your power meter
All the sensors and battery sit in the spindle, so a tired or crash-damaged body can be swapped without replacing the whole pedal.
SPD-compatible
Takes Shimano SPD-style cleats for mountain bike, gravel and cyclocross use.
Fit it yourself
Comes with the seal, washer and caps needed for a straightforward home fit, plus a greasing tool.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Article code
- 773-10-20 (left), 773-10-21 (right)
- Compatibility
- Assioma PRO MX-1 and PRO MX-2 pedals
- Cleat system
- Shimano SPD-compatible
- Body material
- 6061-T6 aluminium
- Clipless parts hardness
- Up to 800 HV
- Stack height
- 11.2mm pedal (17.2mm with Shimano cleat)
- Made in
- Italy
In the box
- Includes

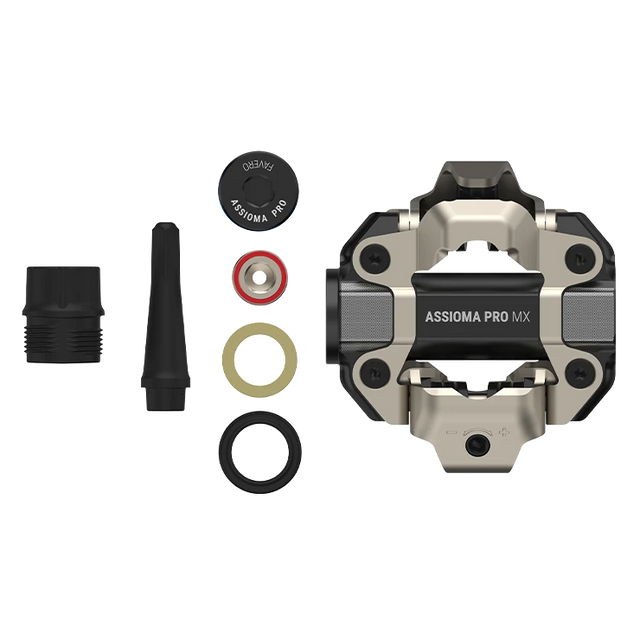

- Pedal body (left or right), end cap, screw cap, oil seal, axial washer, greasing kit tool (773-00-37)
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
