MTB spider power meter

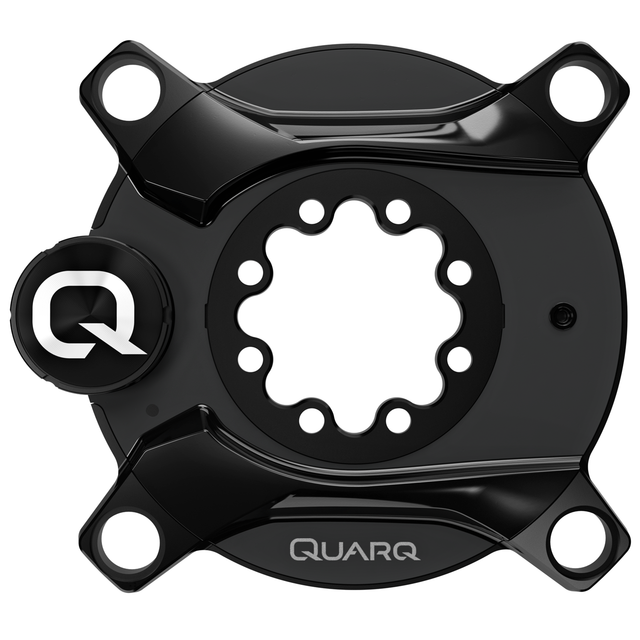

Quarq DZero XX1 Eagle AXS DUB Boost Power Meter Spider

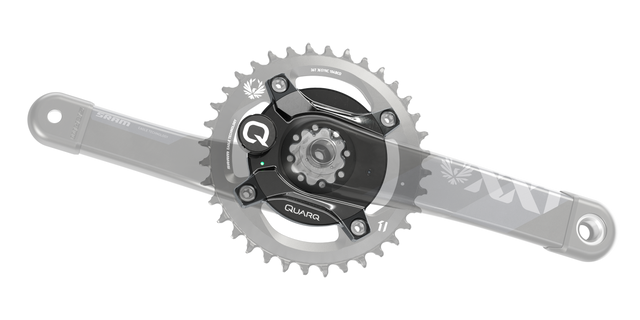

A spider-based power meter that bolts to SRAM XX1 Eagle 8-bolt DUB cranks, measuring total power from both legs. Boost (52mm chainline) version, taking 104 BCD X-Sync Eagle chainrings; arms and ring sold separately.
Highlights
Why we rate it
Both legs measured
Sitting in the spider, it captures combined power from left and right legs.
Ring swaps without fuss
OmniCal keeps accuracy when you change chainring size, and MagicZero zeroes automatically while you ride.
Built for trail
IPX7 sealing and 10K temperature compensation for consistent numbers in mud, rain and cold.
Coin-cell battery
A CR2032 gives roughly 200 hours of riding and swaps without tools.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Power meter type
- Spider, dual-leg total power
- Claimed accuracy
- ±1.5%
- Chainring mount
- 104 BCD, for SRAM X-Sync Eagle 104 BCD rings
- Crank interface
- SRAM XX1 Eagle DUB 8-bolt crank arms
- Chainline
- Boost (52mm)
- Bottom bracket
- SRAM DUB (required)
- Drivetrain
- 1x, Eagle and T-Type chain compatible
- Battery
- CR2032, approx. 200 hours
- Connectivity
- ANT+ and Bluetooth; firmware via SRAM AXS app
- Calibration
- MagicZero auto-zero, OmniCal, 10K temperature compensation
- Water resistance
- IPX7
In the box
- Includes
- Power meter spider (crank arms and chainring sold separately)
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
