1x gravel crankset

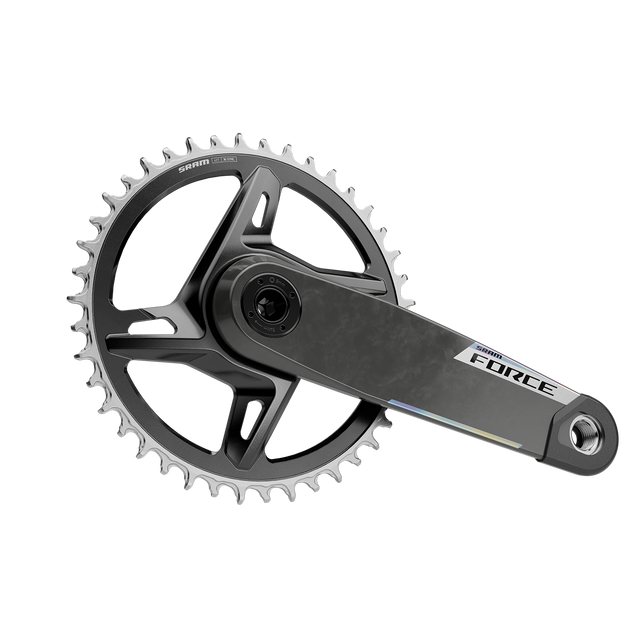

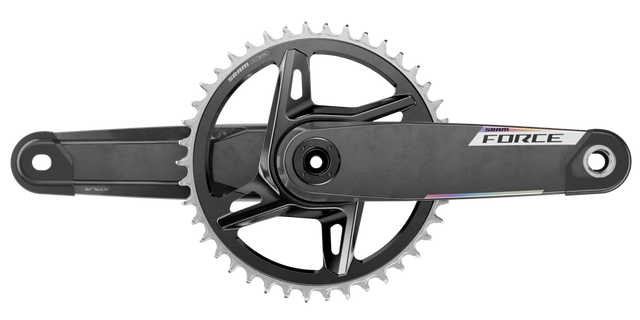

SRAM Force XPLR AXS E1 Crankset
A wide-stance 1x gravel crankset for 13-speed Force XPLR, with a Direct Mount X-SYNC ring. The power version adds a Quarq spindle-based meter in the left arm for very little extra weight.
Highlights
Why we rate it
Gravel clearance
DUB Wide spindle and a 47.5mm chainline leave room for big tyres and short chainstays.

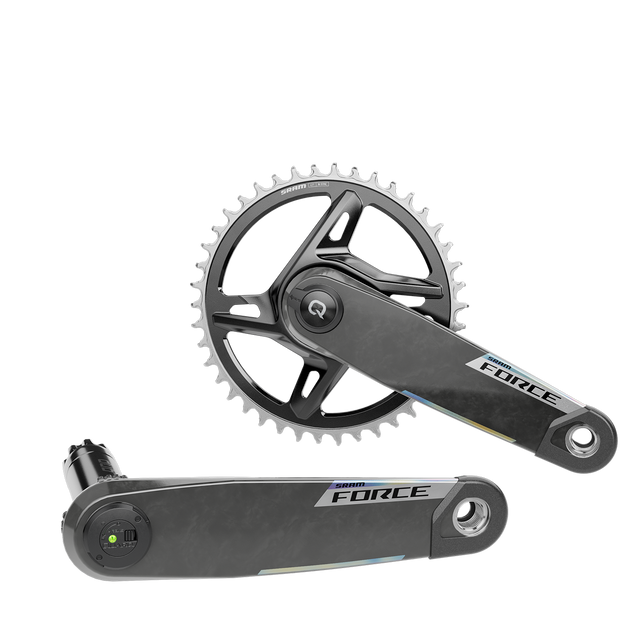

Spindle power
The power version measures left-leg power in the spindle and doubles it, adding under 40g over the standard crank.
Season-long battery
A user-replaceable AAA lithium cell gives 400+ hours of riding between changes.
X-SYNC 1x ring
Narrow-wide teeth hold the chain securely over rough ground without a guide.
12 or 13-speed
Works with Force XPLR 13-speed as well as 12-speed SRAM 1x drivetrains.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Model
- FC-FRC-1W-E1 and FC-FRC-1WP-E1
- Speeds
- 12 and 13 (1x)
- Chainrings
- 42T, 44T, 46T Direct Mount (48T and 50T rings also offered)
- Crank lengths
- 160, 165, 170, 172.5, 175mm
- Spindle
- DUB 28.99mm (Wide)
- BB compatibility
- All SRAM Road Wide DUB BBs (DUB Wide)
- Chainline
- 47.5mm
- Chainring offset
- 6.5mm
- Chain
- SRAM Flattop D1 and E1, Eagle, T-Type
- Power meter
- Quarq spindle-based, left side, ±1.5%, IPX7
- Power meter battery
- AAA lithium, 400+ hours
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
