2x road crankset

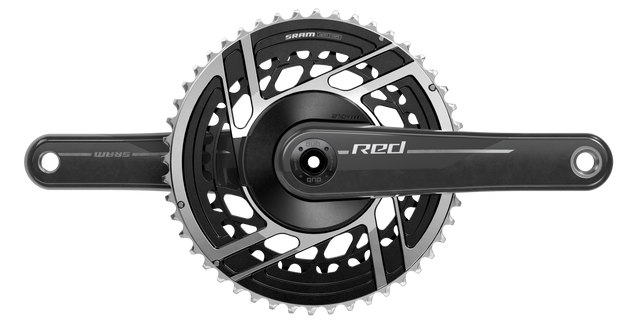

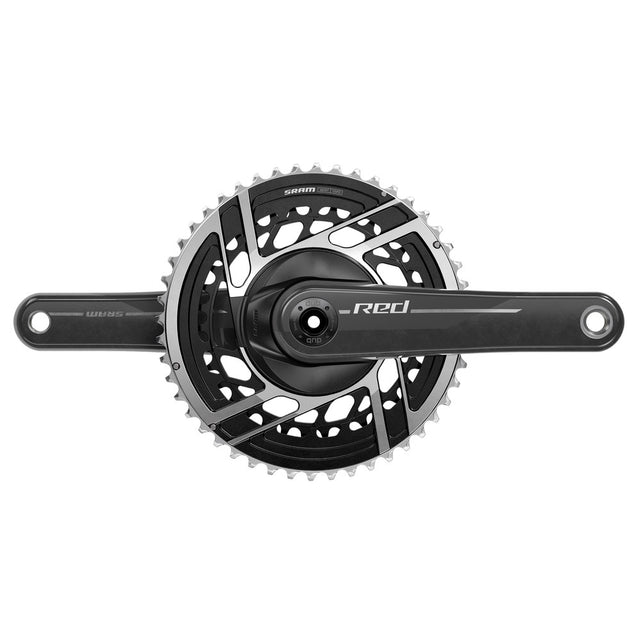

SRAM RED AXS E1 Crankset
SRAM's lightest 2x crankset pairs hollow carbon arms with a one-piece X-Range chainring set, available plain or with a dual-sided power meter built into the rings. A 160mm option joins the range for shorter riders and aero-focused fits.
Highlights
Why we rate it
Hollow carbon arms
Reworked carbon layup trims weight over the previous RED crank while keeping the stiffness racers expect.
Power in the rings
On the power meter version the strain gauges sit inside the one-piece chainring, measuring both legs with no separate spider to add weight.
X-Range gearing
Tight 13-tooth front jumps mean a front shift costs you very little cadence, pairing neatly with SRAM's 10-tooth-start cassettes.
Three ring choices
50-37T for fast road riding, 48-35T as an all-rounder and 46-33T for climbing or mixed-surface days.
DUB spindle
Uses SRAM's 28.99mm DUB spindle, so it fits every SRAM Road DUB bottom bracket standard.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Model
- FC-RED-E1 (no power meter) and FC-RED-P-E1 (power meter)
- Speeds
- 12 (2x)
- Chainrings
- 46-33T, 48-35T, 50-37T, one-piece aluminium, Direct Mount 8-bolt
- Crank lengths
- 160, 165, 167.5, 170, 172.5, 175mm
- Crank material
- Hollow carbon fibre
- Spindle
- DUB 28.99mm
- BB compatibility
- All SRAM Road DUB BBs (BB not included)
- Chainline
- 45.0mm
- Chain
- SRAM Flattop D1 and E1
- Power meter
- Spider-in-chainring, dual-sided with left-right balance, ±1.5%
- Power meter battery
- CR2032 coin cell
- Weight
- 545g plain, 580g with power meter (172.5mm, 48-35T)
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
