Carbon trail and all-mountain wheelset

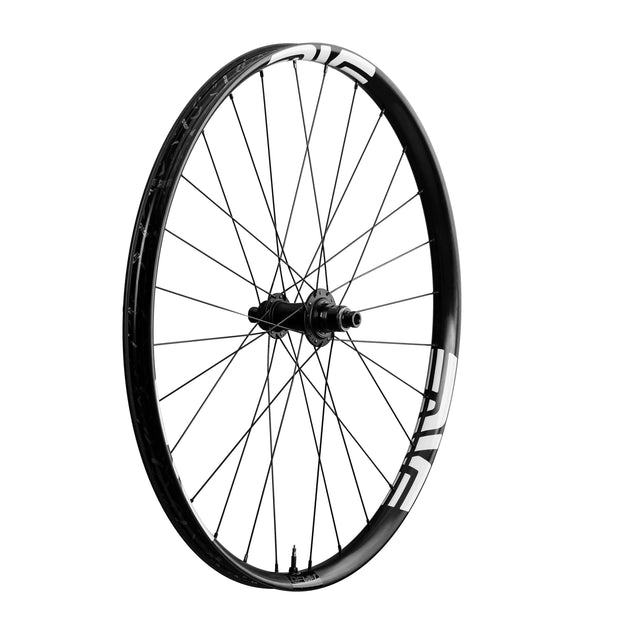

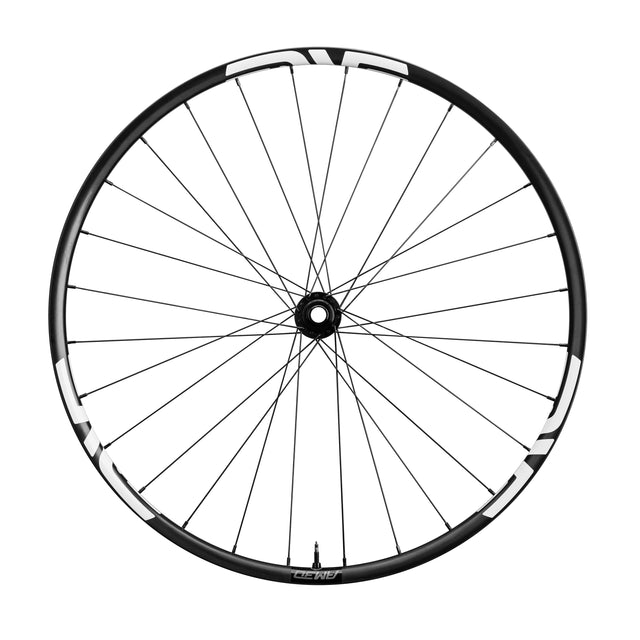

ENVE Foundation AM30 Mountain Bike Wheelset
The trail and all-mountain wheelset in ENVE's Foundation range, now fitted with INNERDRIVE hubs. A 30mm-internal hookless rim suits 2.3–2.6in tyres, and the wheels come in 29in and 27.5in sizes.
Highlights
Why we rate it
All-mountain ride tune
A low-profile rim is laid up to absorb vibration while staying responsive in corners and under power, with offset spoke holes to even out spoke tension.
Wide hookless bead
The broad bead spreads impact energy to help prevent pinch flats on rough trails.
External moulded spoke holes
Moulded holes and external nipples keep the rim strong and make truing straightforward.
Made in Utah
Rims are handmade and the wheels assembled at ENVE in Ogden, Utah.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Rim depth
- 20mm
- Rim width
- 30mm internal / 39mm external
- Weight
- 29in: 1880g (front 880g, rear 1000g); 27.5in: 1778g (front 835g, rear 943g)
- Rim weight
- 29in 510g; 27.5in 470g

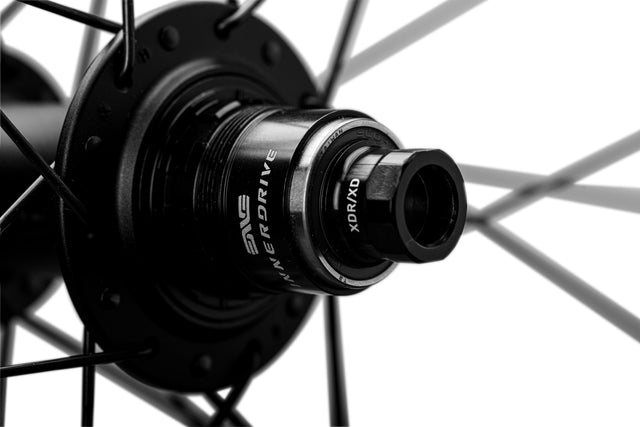

- Hubs
- ENVE INNERDRIVE
- Spokes
- Foundation J-bend, 28h, rim offset 3.0mm
- Tyre size
- 2.3–2.6in recommended
- Max pressure
- 40 psi
- ERD
- 29in 605mm; 27.5in 564mm
- Application
- Trail, all-mountain
- Warranty
- ENVE Limited Lifetime Warranty for the original owner, plus ENVE Limited Lifetime Crash Replacement programme
- Rear hub spacing
- Boost 148 x 12mm
In the box
- Includes
- Front wheel, rear wheel
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
