Basso SV
SV Ultegra Di2
Sempre Veloce – always fast. A comfort-performance road bike that blends aerodynamics, low weight and sharp handling with the comfort and adaptability everyday riders need.
Colours
Colour options
Available in 3 factory colours. Custom paint and alternative builds can be specified through Basso's configurator – ask in store.

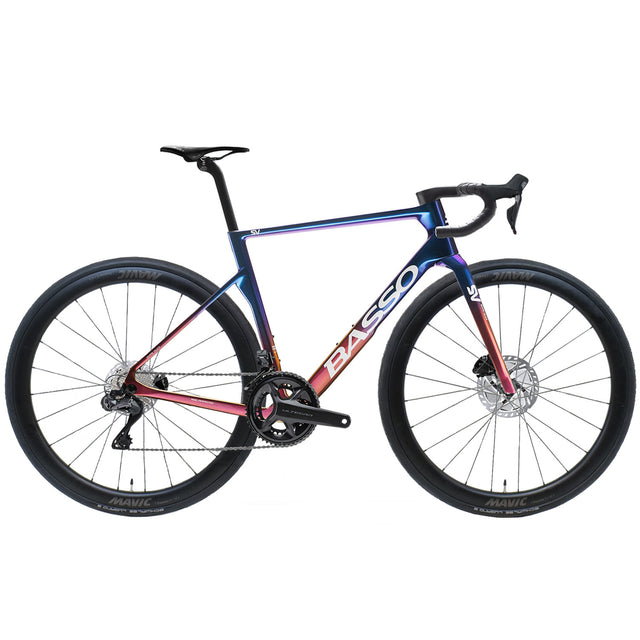

Viola Galaxy

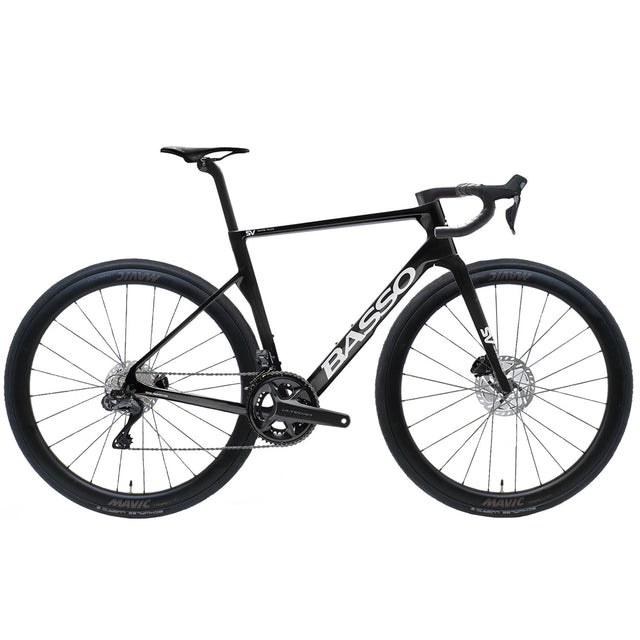

Pure Black

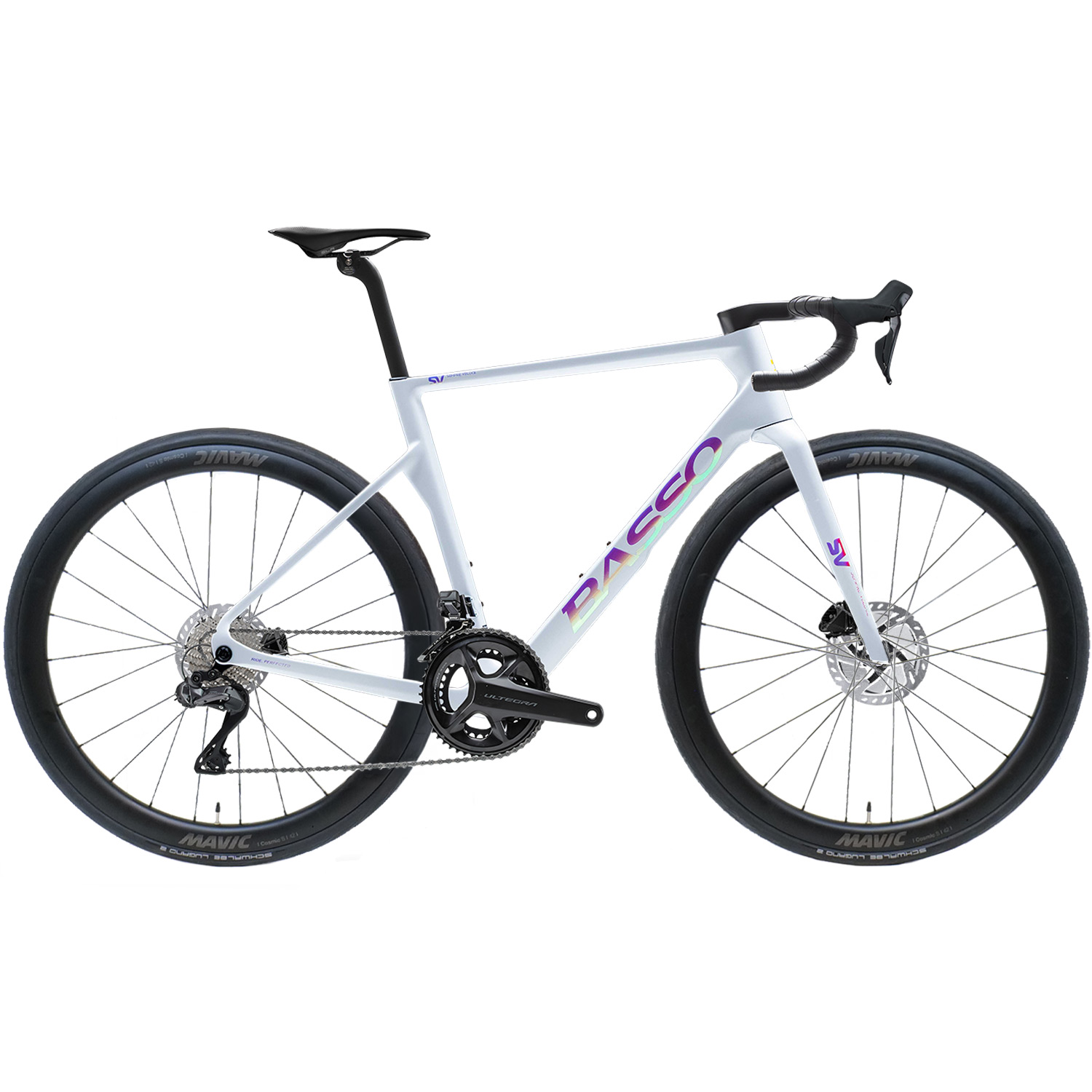

Zenith White
Basso SV
A rider-focused performance bike
Free from the constraints of designing first for pro racing, Basso built the SV around the riders who ride for passion. Working with 4 Performance Bike Fit Studio and AI-driven fit data, it set out to deliver comfort, fit and speed in one bike.
Between race and all-road
The SV sits between Basso's racing and all-road bikes, pairing race-level performance with the adaptability and comfort everyday riders want.
Faster for everyone
Whether you are chasing a personal best, tackling long climbs or simply enjoying an Italian bike, the SV is designed to make every rider the fastest version of themselves.
Made in Italy
Hand-finished in Basso's San Zenone degli Ezzelini factory from Torayca T1100 and T1000 intermediate-modulus carbon.
Innovation and technology
Light. Fast. Thrilling.
780g of carbon optimised for low drag, efficient power transfer and engaging handling.
Aero integration
The front wheel is tucked into the downtube and the frame is optimised around 32mm tyres for minimal airflow disruption.
Stiff where it counts
An 86.5mm BB shell gives a wide base for the downtube and chainstays, while the deep 67.9mm head tube sharpens handling at speed and under torque.
Smooth. Adaptable. Comfortable.
High stack, sloping geometry and a seat tube 25mm shorter than traditional Basso geometry expose more seatpost for comfort on rough roads.
Diamante seatpost
A 380mm compliance-tuned post with an updated saddle clamp, paired with the 3B Clamp System to reduce fatigue on long rides.
Cockpit innovation
Two cockpit options: Fuga and Levita
The SV is built around Basso's integrated carbon cockpits so you can choose the fit that suits you.
Fuga
Optimised for an aerodynamic performance fit, with 1° back sweep and down sweep for a neutral wrist position. Supplied as standard on UK builds.
Levita
For riders who prefer a more traditional cockpit shape. Available on request – ask in store.
Details
Built to last
Practical details that keep the SV running smoothly season after season.
Microtech Solid Oil bearings
Headset bearings with solid oil lubrication that last around three times longer than conventional bearings and resist washout.
Basso Ultra Torque Expander
A 34g expander for secure headset adjustment and easier maintenance.
5-year warranty
Register your bike with Basso to extend the frame warranty to five years.
3B Clamp System Gen 2
A completely hidden, vulcanised seatpost clamp that adds an anti-vibration effect on rough surfaces.
UDH
Universal Derailleur Hanger for easy replacement and wide drivetrain compatibility.
Build highlights
UK specification
SV Ultegra Di2 specification
Specification as supplied by Basso's UK distributor. Components may change subject to availability.
Frameset
- Frame
- Basso SV, Torayca T1100 and T1000 intermediate-modulus carbon, made in Italy. 780g (size 53)
- Fork
- Basso SV full carbon, 12x100mm thru axle. 370g
- Headset
- Fully integrated, Microtech Solid Oil bearings
- Bottom bracket
- BB86 86.5 x 41
- Axles
- 100/142mm x 12mm thru axles
- Brakes mount
- Flat mount disc
- Tyre clearance
- Up to 35mm
- Cable routing
- Fully integrated, electronic groupsets only
- Warranty
- 5 years when registered with Basso
Drivetrain
- Groupset
- Shimano Ultegra Di2 12-speed
- Crankset
- Shimano Ultegra Di2 12x
- Cassette
- Shimano 105 12-speed
- Chain
- KMC 12x Silver/Black
Brakes
- Brakes
- Shimano Ultegra hydraulic disc
- Rotors
- Shimano Ultegra Ice-Tech 160/140mm
Wheels & tyres
- Wheels
- Mavic Cosmic S Centerlock Disc UST
- Tyres
- Schwalbe One Performance 700 x 28c
Cockpit & contact points
- Handlebar/stem
- Basso Fuga integrated carbon (Levita available on request)
- Saddle
- Prologo Dimension RS
- Seatpost
- Basso Diamante integrated carbon
Cockpit sizing
- Fuga sizes
- Basso Fuga integrated carbon: XXS 80x370, XS 90x370, S 100x370, M 110x370, L/XL 120x370, XXL 130x370

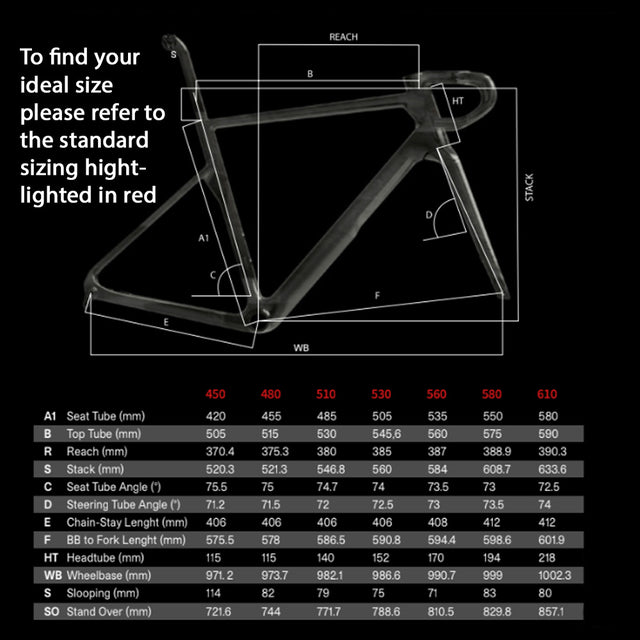

Geometry & sizing
SV geometry
SV frame geometry. All measurements in millimetres. Not sure of your size? Our bike fit team can help you choose.
Geometry chart
| Size | XXS (45) | XS (48) | S (51) | M (53) | L (56) | XL (58) | XXL (61) |
|---|---|---|---|---|---|---|---|
| Seat tube (A1) | 420 | 455 | 485 | 505 | 535 | 550 | 580 |
| Top tube (B) | 505 | 515 | 530 | 546 | 560 | 575 | 590 |
| Reach (R) | 370 | 375 | 380 | 385 | 387 | 389 | 390 |
| Stack (S) | 520 | 521 | 547 | 560 | 584 | 609 | 634 |
| Seat angle (C) | 75.5° | 75° | 74.7° | 74° | 73.5° | 73° | 72.5° |
| Head angle (D) | 71.2° | 71.5° | 72° | 72.5° | 73° | 73.5° | 74° |
| Chainstay (E) | 406 | 406 | 406 | 406 | 408 | 412 | 412 |
| BB to fork (F) | 575 | 578 | 586 | 591 | 594 | 599 | 602 |
| Head tube (H) | 115 | 115 | 140 | 152 | 170 | 194 | 218 |
| Wheelbase | 971 | 974 | 982 | 987 | 991 | 999 | 1002 |
| Sloping (S') | 114 | 82 | 79 | 75 | 71 | 83 | 80 |
| Standover | 722 | 744 | 772 | 789 | 810 | 830 | 857 |
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
