Pure road performance.
The RS is the lightest and most aerodynamic road bike Edelsten has ever developed, and every detail is engineered without compromise for maximum performance. It's stiff, fast and precise for long days, hard climbs and race efforts, and it's still set up around you.
At a glance
| Frame | Interlaced carbon layers, Toray T1100 |
| Use | Road / race |
| Weight | Complete bikes from 5.98 kg |
| Cockpit | Edelsten Aero Carbon, fully integrated |
| Approval | UCI approved |
Race approved
The RS isn't a theoretical concept. It's a race-proven tool at the highest level. In 2025, Edelsten team rider Philip Handl won the legendary Race Across The Alps on it: 539 km and 12,600 m of climbing in one of the toughest one-day races in the world.
On test
German magazine RennRad put the RS through a full test and called it an agile, aerodynamic and extremely light road bike with a top-quality build. Read the review (in German).
Carbon technology: performance, layer by layer

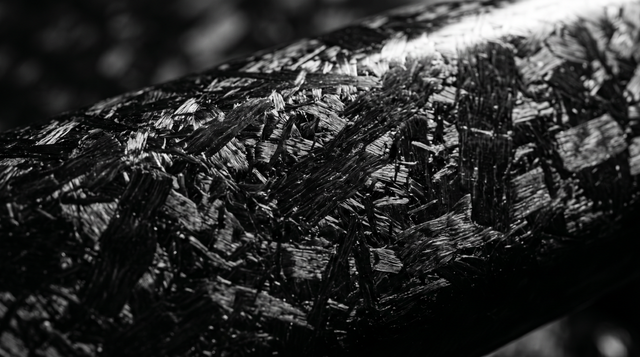

The RS frame is made from carefully selected UD fibres and high-modulus Toray T1100 carbon, EPS-moulded for clean, consistent walls. The interlaced layup tunes stiffness and comfort exactly where they matter: the frame responds directly when you accelerate, yet stays composed and controlled over long distances.
Custom paint: Edelsten 3D Paint Studio
Every Edelsten is painted to order in Austria, Germany or Italy and assembled in Cham, Germany, so a one-off finish is part of the deal rather than an afterthought. Choose Custom paint (3D Paint Studio) in the colour options above (+£509, equivalent to Edelsten's €600 surcharge) and design your frame on a live 3D model:
- Frame colour: any colour you like
- Finish: gloss, satin, matt, metallic, pearl or raw carbon
- Logos: silver, chrome, Oil Slick or any colour, in gloss or matt
How it works: 1) Open the Edelsten 3D Paint Studio and create your design. 2) Click "Save design" to get your design code (for example ED-RS-XXXXXX). 3) Order the custom paint option here and email the code to us, or bring it into the shop, and we'll confirm everything with Edelsten before your frame goes into paint.
Prefer a signature finish? Raw Carbon / Oil Slick Chrome and Pearlwhite / Oil Slick Chrome are available at the standard price.
What's in the box
- RS frame and fork
- Edelsten Aero Carbon integrated cockpit
- Edelsten Aero Carbon seatpost
- Seat clamp
- Derailleur hanger
- Edelsten integrated headset
- Through axles
Technical specifications
| Frame material | Interlaced carbon layers |
| Carbon type | Toray T1100, EPS moulding |
| Frame finish | UD carbon |
| Headset | Edelsten integrated |
| Seatpost | Edelsten Aero Carbon |
| Bottom bracket | T47 |
| Brakes | Disc |

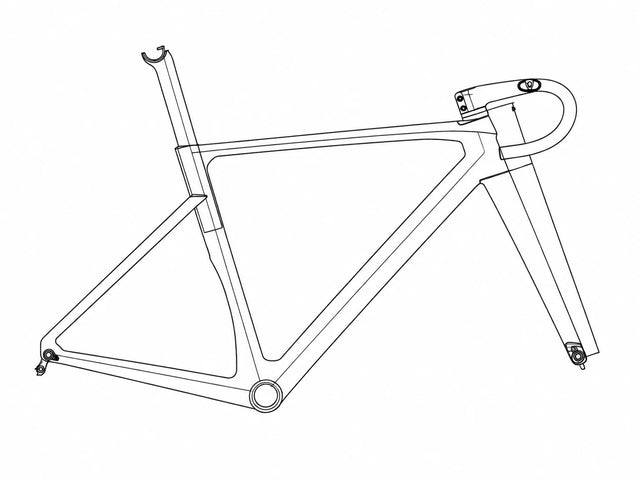

Geometry
| mm / ° | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| A Seat tube | 430 | 455 | 485 | 515 | 545 | 580 |
| B Top tube (horizontal) | 505 | 519 | 535 | 556 | 575 | 583 |
| C Head tube | 108.5 | 117.5 | 130 | 145 | 167 | 191 |
| D Chainstay | 410 | 410 | 410 | 410 | 410 | 410 |
| E Head tube angle | 71° | 71.5° | 72° | 72.8° | 73° | 73° |
| F Seat tube angle | 75° | 74.5° | 74° | 73.5° | 73° | 73° |
| G BB drop | 71 | 71 | 71 | 70 | 70 | 70 |
| H Front centre | 571 | 577 | 583 | 593 | 605 | 620 |
| I Fork length | 370 | 370 | 370 | 370 | 370 | 370 |
| J Wheelbase | 971 | 976 | 983 | 993 | 1005 | 1020 |
| K Fork offset | 45 | 45 | 45 | 45 | 45 | 45 |
| Stack | 510 | 520 | 534 | 550 | 572 | 595 |
| Reach | 368 | 375 | 382 | 393 | 400 | 408 |
Not sure of your size? Book a bike fit with us and we'll match the right frame to your position.
Delivery and warranty
- Standard colours: usually 2 to 8 weeks, depending on stock
- Custom paint: around 8 weeks from design sign-off
- Warranty: 5-year frame warranty for the original owner against material and manufacturing defects
Build it with TCC
Want a complete bike? We'll build your RS in our Dorking workshop around Shimano Di2 or SRAM AXS, with the wheels and finishing kit you prefer, and set it up to your fit. Pop in, call or message us to talk it through.
