Carbon crank arms
Elilee X310 Carbon Crank Arms
Elilee's X310 carbon arms weigh around 310g yet are notably stiffer than the previous X320, with a choice of Shimano 24mm titanium or SRAM DUB spindles. Order them bare or ready-built with an SRM or Xcadey power meter, plus a wider XC-MTB version for off-road frames.
Highlights
Why we rate it
Lighter and stiffer
Roughly 30g lighter than the previous generation with a claimed 12% stiffness gain, for crisper power transfer.
Spindle choice
A 24mm titanium spindle for Shimano bottom brackets or a 28.99mm alloy DUB spindle for SRAM-standard frames.
Power meter ready
Available with an SRM or Xcadey spider-based power meter fitted to Elilee's 13T direct-mount interface.
Short arm sizes
Lengths down to 145mm suit smaller riders and those chasing a more open hip angle.
Tested to ISO
Passes ISO 4210:2015 fatigue testing at 1800N for 100,000 cycles.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Material
- Carbon fibre arms
- Weight

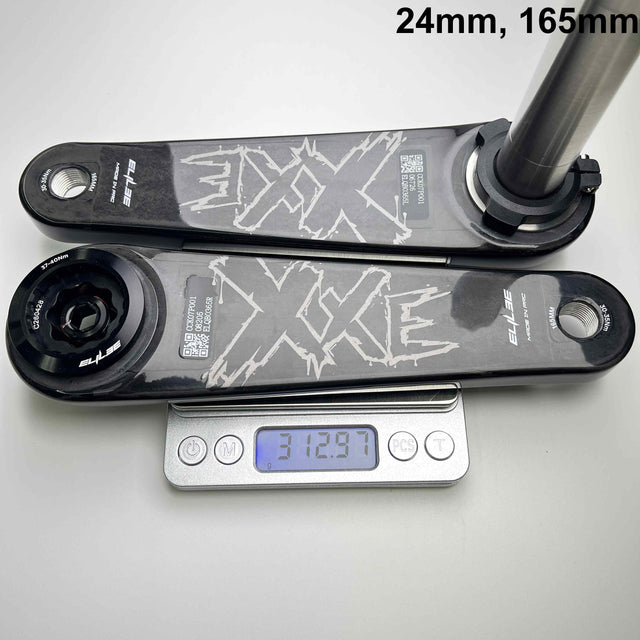

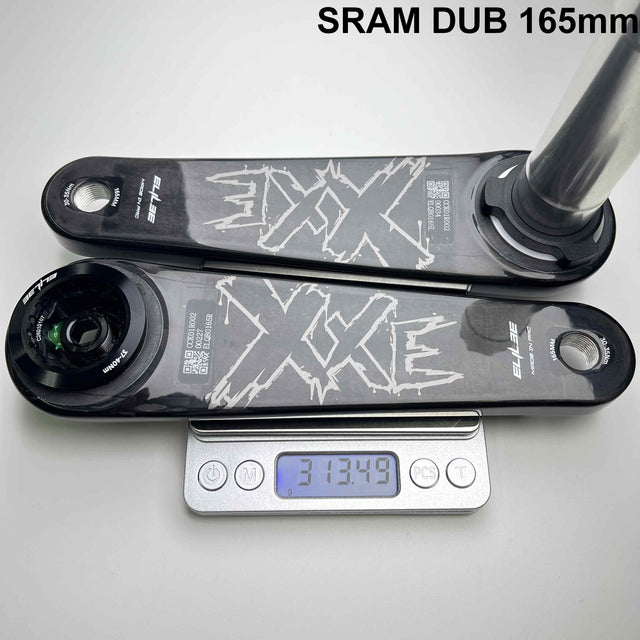

- 310g (24mm road arms); 325g (XC-MTB)

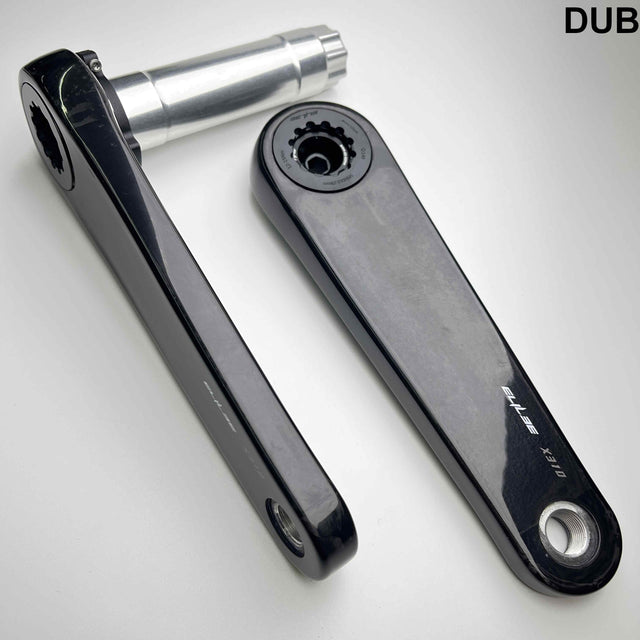

- Spindle (DUB)
- 28.99mm aluminium, 93.5mm length
- Spindle (24mm)
- 24mm titanium, 94mm length
- Spindle (XC-MTB)
- 28.99mm aluminium, 106mm length
- Q-factor
- 149mm (DUB), 151.5mm (24mm), 162mm (XC-MTB)
- Chainline
- 44.5mm road, 49.5mm XC-MTB
- Chainring interface
- Elilee 13T direct mount
- Arm lengths
- 145, 150, 155, 160, 165, 167.5, 170, 172.5mm
- Power meter options
- SRM or Xcadey
- Testing
- ISO 4210:2015, 1800N at 45 deg, 100,000 cycles
In the box
- Includes
- Pair of crank arms with spindle
- Includes
- Power meter spider (power meter variants only)
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
