Smart indoor bike frame
Elite Square Smart Frame

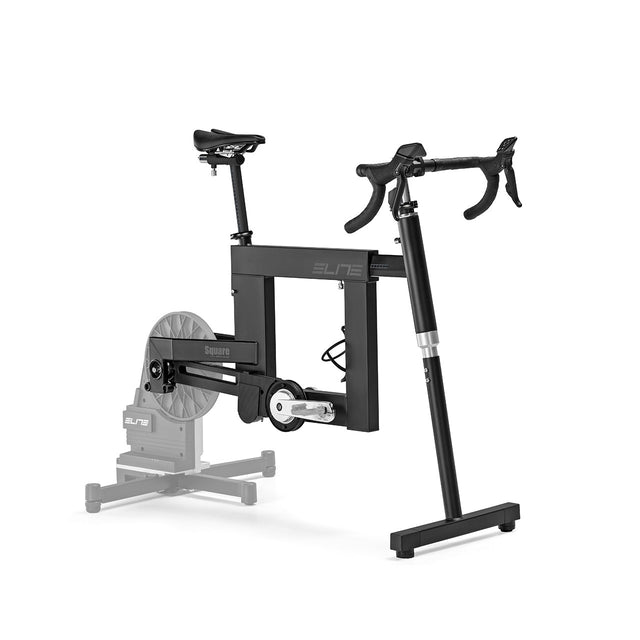

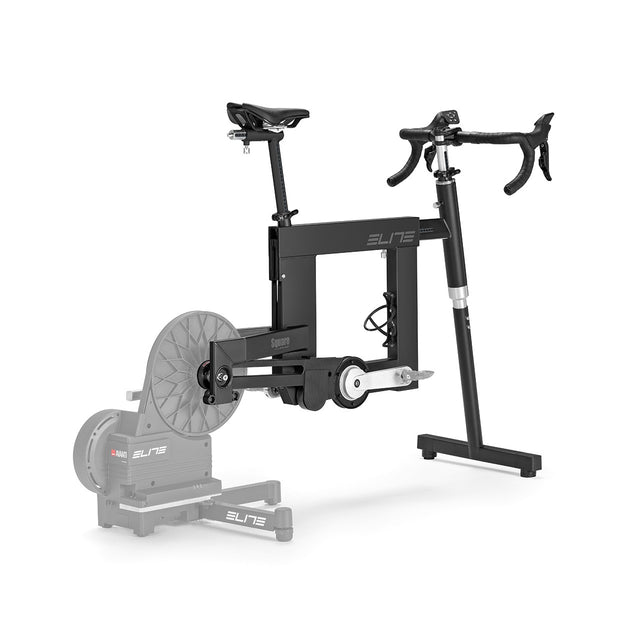

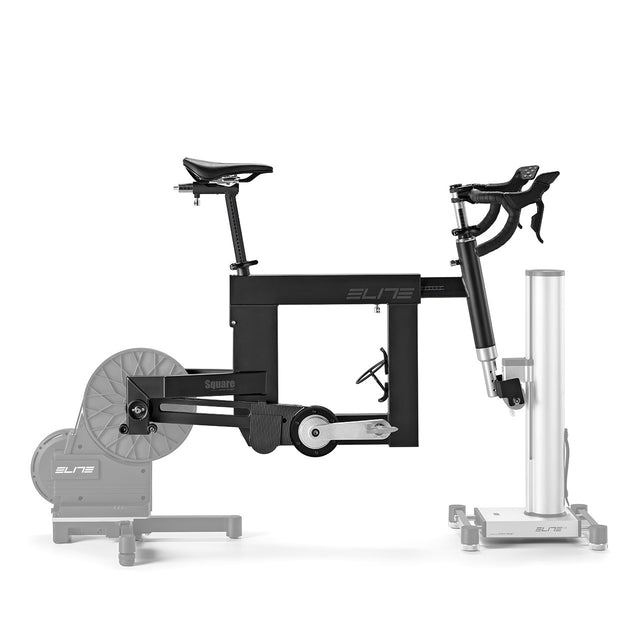

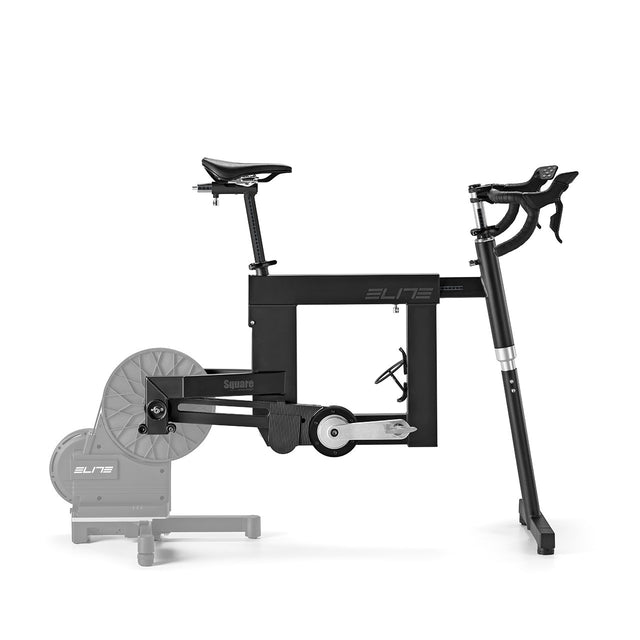

A fully adjustable frame that mounts to your direct-drive trainer in place of your bike, with high-end virtual shifting that recreates your own Shimano, SRAM or Campagnolo gearing in any app.
Highlights
Why we rate it
Virtual shifting, real gearing
Set groupset, speeds, chainrings and cassette teeth in the Square app (10-13 speed, 9-52T sprockets, 1-3 rings from 22-60T), or use simple sequential shifting across 5-24 levels.
Familiar controls
The 420 mm bar mirrors Shimano, SRAM and Campagnolo lever layouts, with 10 buttons per side for shifting, braking, Aria fan, Zwift steering and Zwift commands.
One station, many riders
Seven adjustment points and up to five saved profiles let a whole household share it without swapping bikes or re-fitting.
Quiet and clean
The belt drive removes chain noise, grime and lubrication, ideal for shared living spaces.
Works offline
Stand-alone mode gives 16 resistance levels from the levers, with no app or connection needed.
Elite ecosystem
Swap the front support for an Elite Rizer for gradient and steering, and control an Aria fan from the bar.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Rider height
- 152-198 cm
- Saddle height
- 57-88 cm
- Bar height
- 84.5-106 cm
- Handlebar
- 420 mm wide, 6° flare
- Crank lengths
- 165, 167.5, 170, 172.5, 175 mm
- Q-factor
- 15 cm
- Weight
- 23 kg
- Footprint
- 92 x 105 x 45 cm (with Avanti trainer)
- Power
- Rechargeable battery, approx. 80 hours
Compatibility
- Trainers
- Elite Justo 2, Avanti and Rivo, plus most current direct-drive smart trainers
- Apps
- Works with all major cycling apps, including Zwift and Rouvy
- Includes
- Elite T-Race bottle cage, bike computer mount, fitting tools
- Not included
- Trainer and pedals
Square needs a compatible direct-drive smart trainer, sold separately. Ask us to check yours.
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
