ENVE Foundation AR40 Wheelset

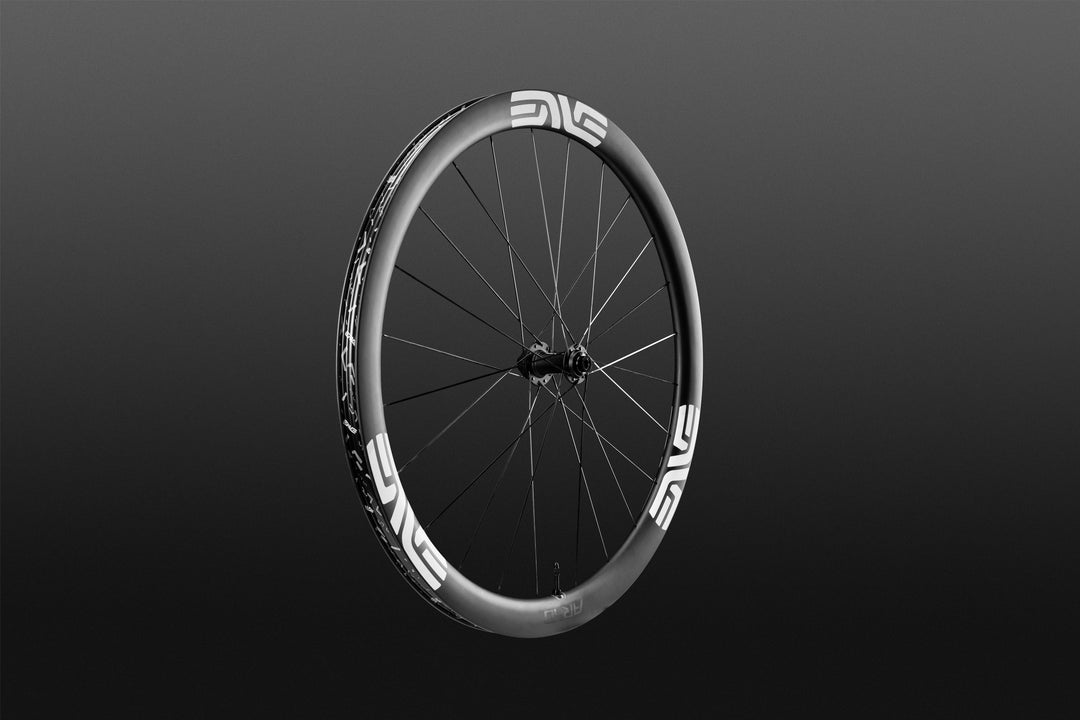

ENVE's newest Foundation wheelset: a 40mm-deep, 25mm-internal hookless carbon rim built in Utah for riders who split their time between fast tarmac and gravel. It is tubeless-only and works with tyres from 27mm to 50mm.

1515gWheelset weight
40mmRim depth
25mmInternal width
27–50mmTyre range

Highlights

Why we rate it

One wheelset, road and gravel

Shaped for 28–30mm road tyres yet tested to ENVE's gravel standards, so the same pair suits fast group rides and mixed-surface days.

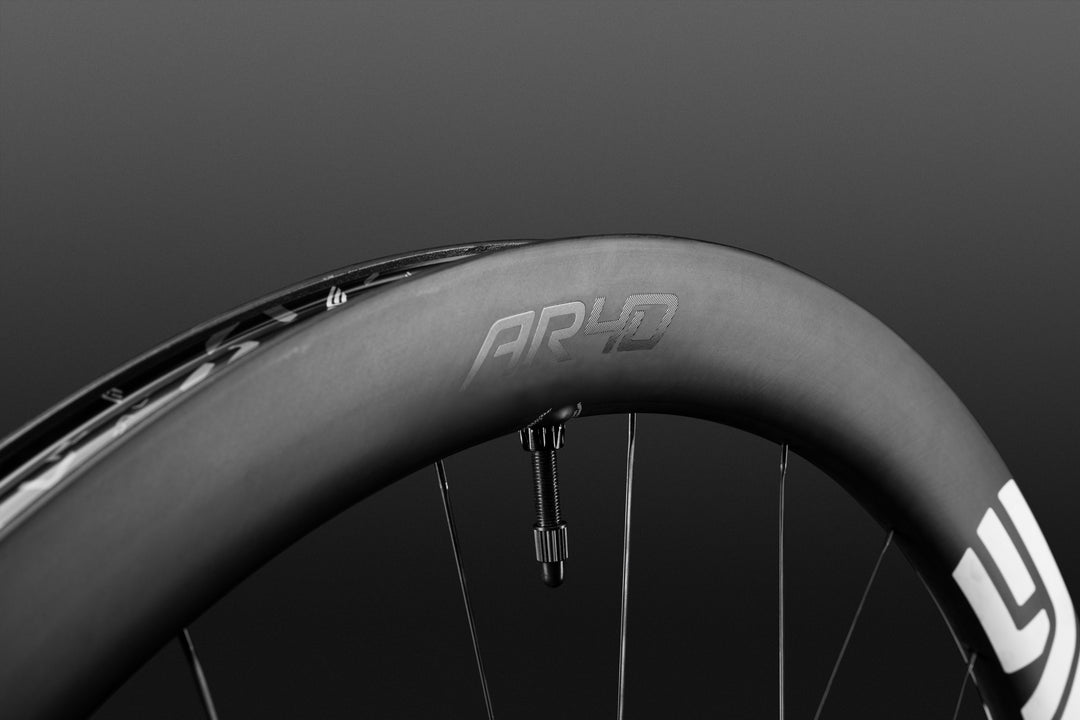

Wide hookless bead

A broad, rounded bead spreads impact load from potholes and rocks, helping to prevent pinch flats and rim damage.

Moulded spoke holes

Spoke holes are formed in the mould rather than drilled, keeping the fibres continuous for a strong rim that needs little upkeep.

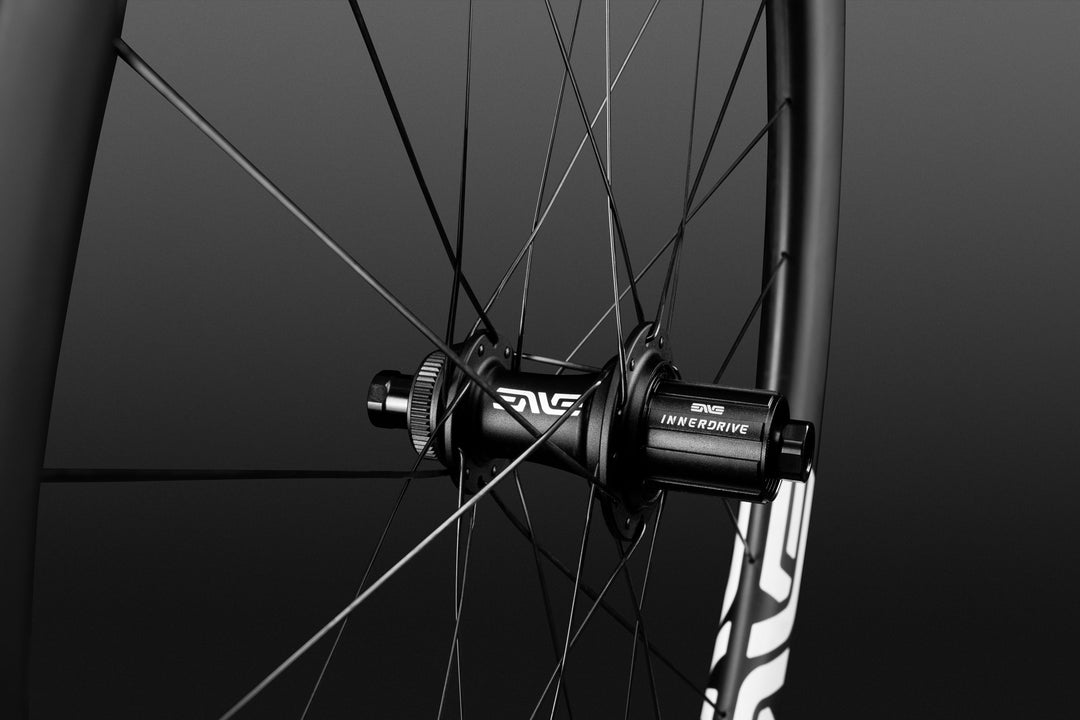

INNERDRIVE hubs

ENVE's own hubs with an oversized 42mm ratchet mounted inboard over the bearings, designed for long bearing life and easy servicing.

Tech specs

Specification

Manufacturer specification. Details may change without notice.

Specification

Rim depth
40mm front and rear
Rim width
25mm internal / 32mm external
Weight
1515g wheelset (front 690g, rear 825g; incl. tape and valves, HG freehub), ±3%
Rim weight
425g
Hubs
ENVE INNERDRIVE Foundation, Centre Lock disc
Axles
12 x 100mm front, 12 x 142mm rear
Spokes
Sapim CX-Ray J-bend, 24h front and rear, Alpina Nylock brass nipples
Tubeless
Tubeless tyres only; wide hookless bead; 29mm tape, 61mm valves
Tyre size
27–50mm (27mm minimum, must be on ENVE's approved tyre list)
Max pressure
80 psi / 5.5 bar with 27mm minimum tyre
ERD
579mm (±3mm)
Warranty
ENVE Limited Lifetime Warranty for the original owner, plus ENVE Limited Lifetime Crash Replacement programme

In the box

Includes
Front wheel, rear wheel, tubeless tape (fitted), tubeless valves

Ordering

Available from The Cycle Collective

Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.

Product Information

  • 40mm deep rims with 25mm internal width for road and gravel

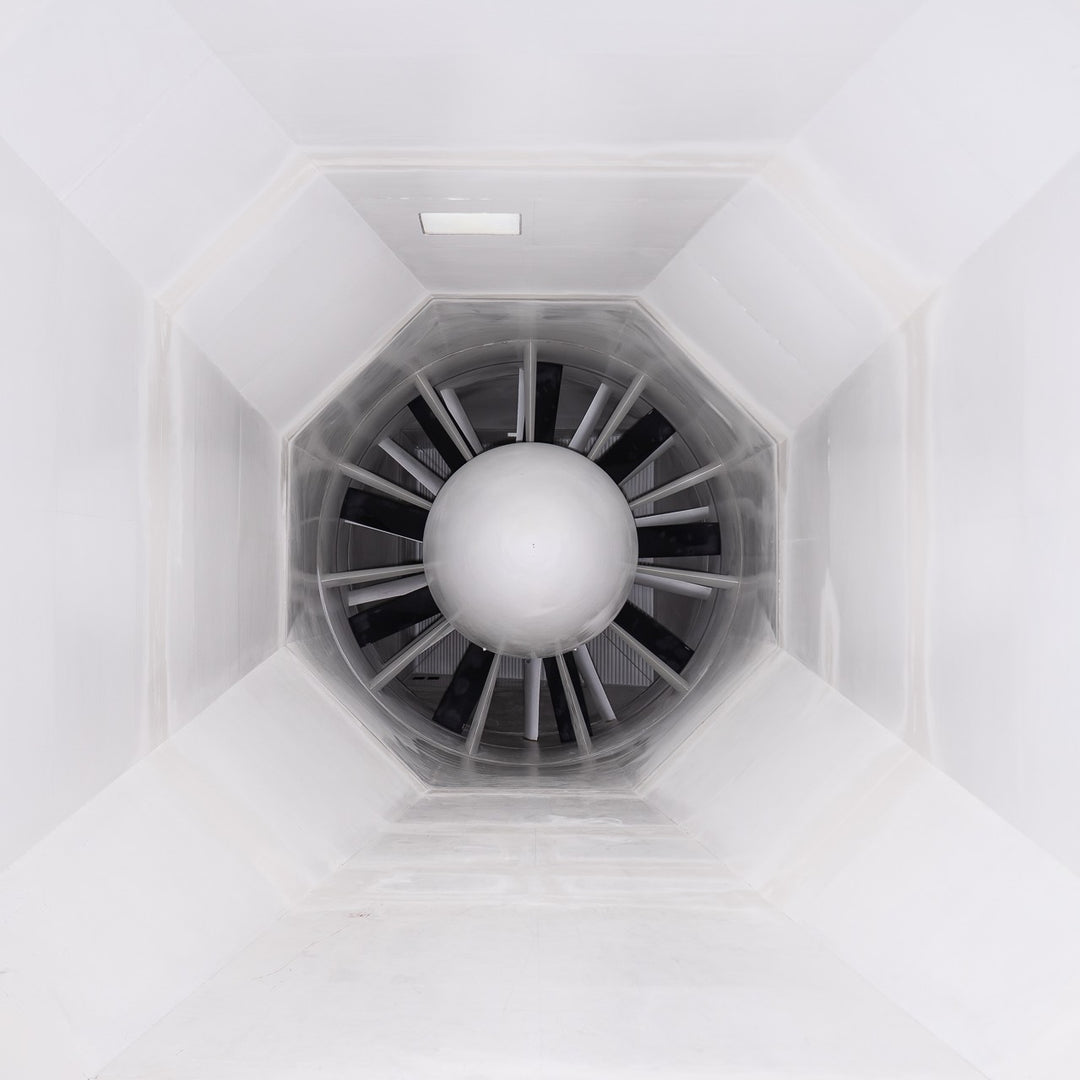

  • Developed in-frame in the Mercedes-Benz F1 wind tunnel
  • Hookless tubeless rims with Wide Hookless Bead for impact protection
  • Moulded spoke holes for stronger, lighter rims
  • ENVE INNERDRIVE hubs with oversized 42mm ratchet drive
  • Automatic bearing preload; low maintenance and easy to service
  • Rim depth: 40mm
  • Internal width: 25mm
  • Hole count: 24h
  • Spokes: Sapim CX-Ray J-Bend
  • Hubs: ENVE INNERDRIVE Foundation, 12x100mm / 12x142mm
  • Brake type: Centerlock disc
  • Weight: 1515g avg pair incl. tape and valves, HG freehub (690g F, 825g R)
  • Tyres: Tubeless only, 27–50mm recommended
  • Max pressure: 80 psi / 5.5 bar (27mm tyre)
  • Tubeless tape/valves: 29mm tape, 61mm valves
