Titanium-axle carbon double-sided SPD pedal
LOOK X-Track Race Carbon Ti SPD Gravel and MTB Pedals
LOOK's lightest double-sided SPD pedal combines a carbon body with a titanium axle, ideal for gravel and XC racers who want easy entry on either side at minimal weight.
Highlights
Why we rate it
Carbon body, titanium axle
The lightest X-Track at 340g a pair with cleats.
Double-sided SPD mechanism
Clip in on either side, with full compatibility with standard SPD cleats.
Mud shedding
Open, compact body clears mud and grit quickly.
Dual-sealed axle
An internal bushing plus two sealed bearings, protected by an O-ring end cap and labyrinth seal.
Adjustable tension
Retention ranges from 6 to 14 for anything from easy release to race-tight.
Tech specs
Specification
Manufacturer specification. Details may change without notice.
Specification
- Cleat system
- SPD compatible (standard cleats supplied; Easy cleat optional)
- Body
- Carbon
- Axle
- Titanium
- Bearings
- Internal bushing + 2 sealed bearings
- Weight
- 145g per pedal; 340g pair with cleats
- Stack height
- 10.7mm pedal; 16.8mm with cleat
- Q-factor
- 53mm
- Platform
- 515mm², 60mm wide
- Retention
- Adjustable 6 to 14
- Float
- 6°; 13° release

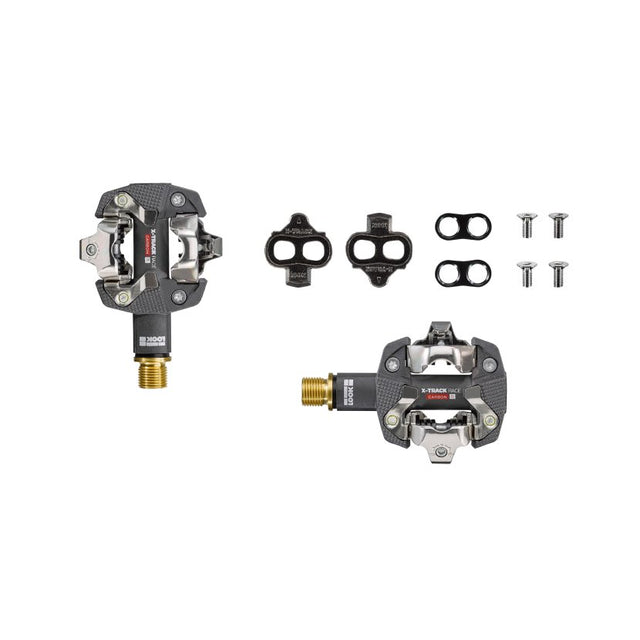

In the box
- Includes
- Pair of pedals
- Includes
- Standard SPD-compatible cleats
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, setup or advice, call 0203 148 6764 or email hello@thecyclecollective.cc.
