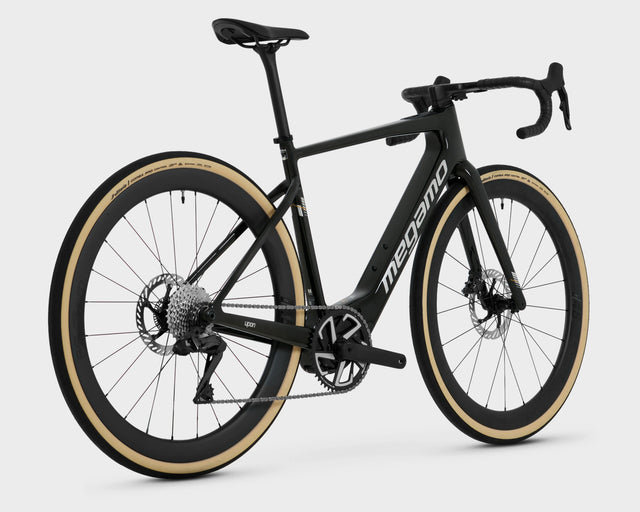

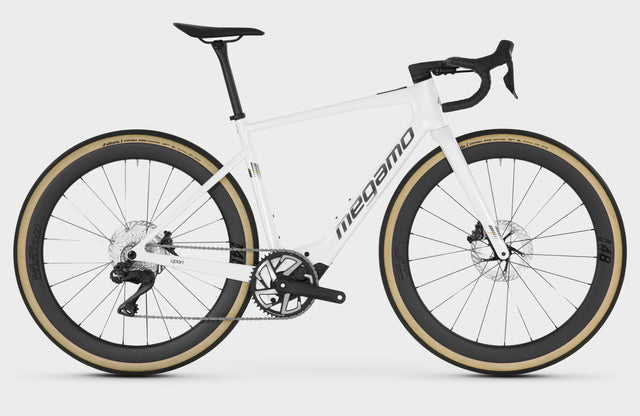

The top Upon: Shimano Ultegra Di2 electronic shifting, Vision SC48 carbon wheels and the full-power Avinox M2S motor.

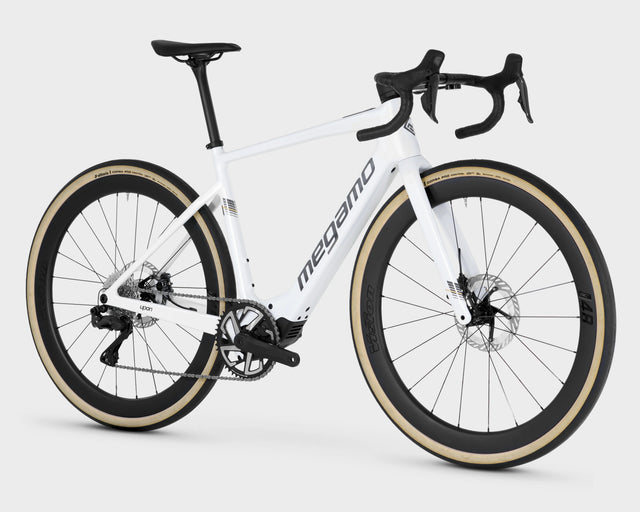

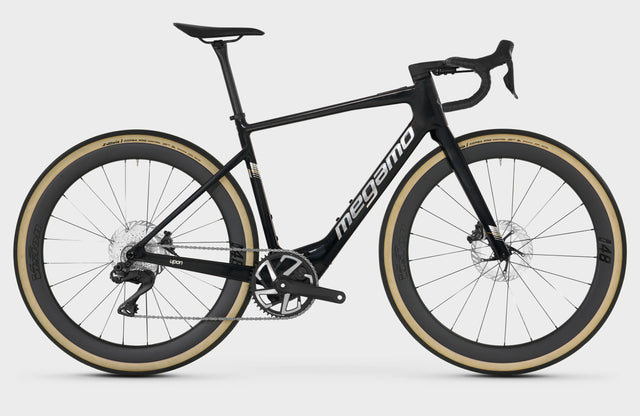

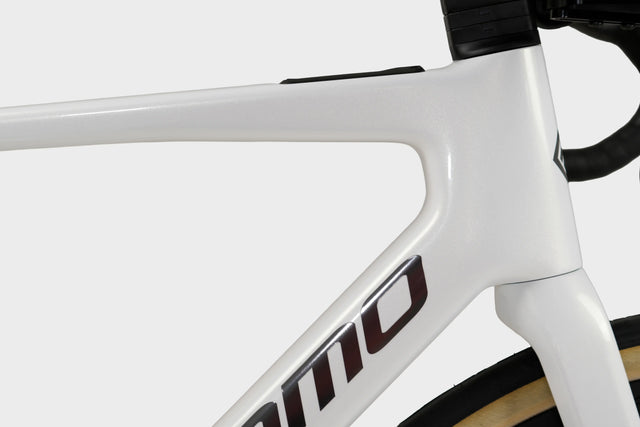

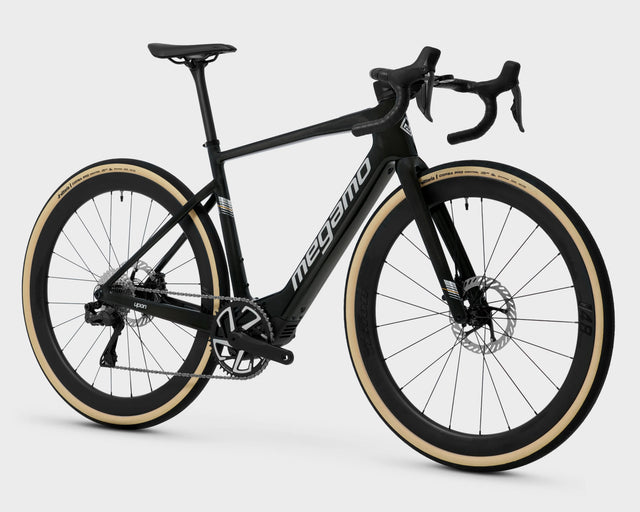

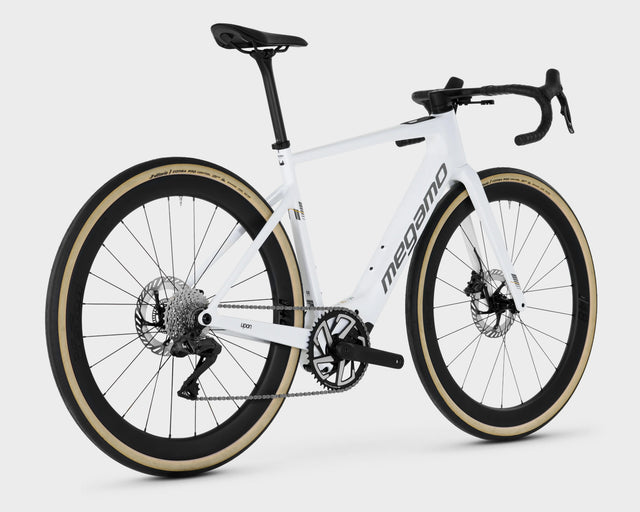

The Upon is Megamo's electric road bike, built to keep the feel of a fast road bike while flattening the climbs. The high-modulus carbon frame hides the Avinox motor, the FS600 600 Wh battery and every cable, with no visible bolts or panels – from a few metres away it simply looks like a road bike.
Key features
- Avinox M2S motor – 150Nm in Boost, 1300W
- 600 Wh integrated battery, 12A fast charger
- Shimano Ultegra Di2 R8150 12-speed, 11–34T
- Vision SC48 i25 carbon wheels
- Vittoria Corsa Pro Control 42c tyres
- Fizik Vento Argo R5 saddle
Why the Upon
Built to climb. Pure road geometry and a carbon layup tuned for pedalling stiffness. Megamo has calibrated the Avinox system specifically for the Upon, with smoother starts and more progressive delivery.

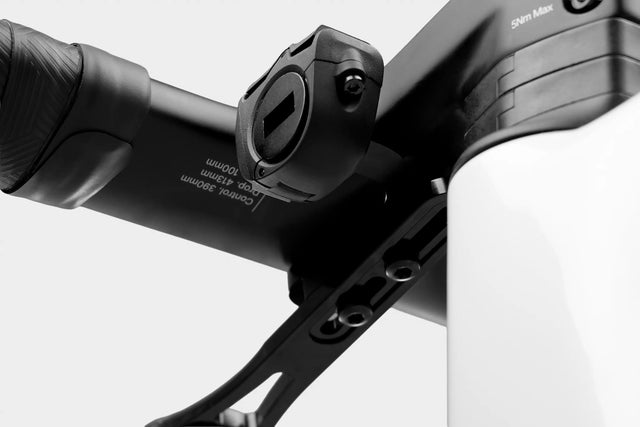

One-piece cockpit. The integrated carbon bar and stem hide all cabling for a clean, aerodynamic front end.
Room for comfort. Clearance for tyres up to 42 mm, fitted with Vittoria Corsa Pro Control 42c, and a 27.2 mm carbon seatpost to take the sting out of rough roads.

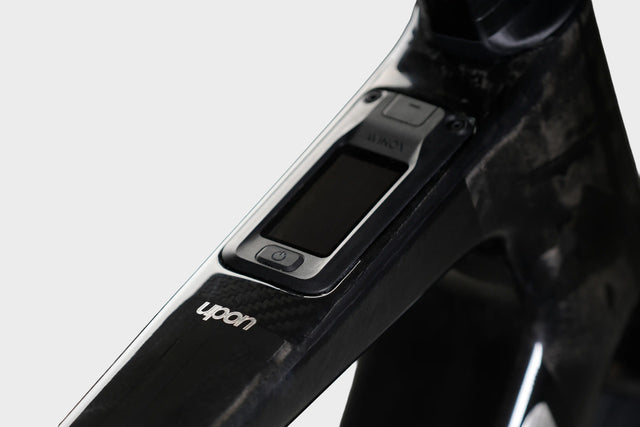

Control without letting go. The wireless BC100 remote changes assistance from the bar; the DPC100 top-tube display shows mode, battery and speed. Fine-tune everything in the Avinox app.
Range for big days. 600 Wh integrated battery with IP56 protection for reliable riding in dust or rain.
Specification
| Frame | Upon carbon, fully integrated battery and central motor, internal routing, flat-mount disc, 12x142 mm |
|---|---|
| Fork | Upon carbon, internal routing, flat-mount disc, 12x100 mm |
| Headset | FSA internal cable routing |
| Motor | Avinox M2S – 130Nm / 1300W, 150Nm in Boost mode |
| Battery | Avinox FS600 600 Wh, 35.9V, IP56 |
| Display | Avinox DPC100, 2-inch OLED in top tube |
| Charger | Avinox 12A fast charger |
| Rear derailleur | Shimano Ultegra Di2 R8150, 12-speed |
| Shifters | Shimano Ultegra Di2 R8170 |
| Crankset | FSA Avinox direct-mount 48T, 12-speed Shimano (S/M 165 mm, L/XL 170 mm) – crankset is specific to this bike and cannot be changed |
| Cassette | Shimano Ultegra R8100, 11–34T |
| Brakes | Shimano Ultegra Di2 R8170, RT-CL800 180 mm |
| Wheels | Vision SC48 i25 HG carbon |
| Tyres | Vittoria Corsa Pro Control 42c |
| Handlebar | Carbon integrated cockpit (S 80x380 / M,L 90x400 / XL 110x420 mm) |
| Seatpost | Megamo Carbon Ø27.2 mm (S/M 350 mm, L/XL 420 mm) |
| Saddle | Fizik Vento Argo R5 |

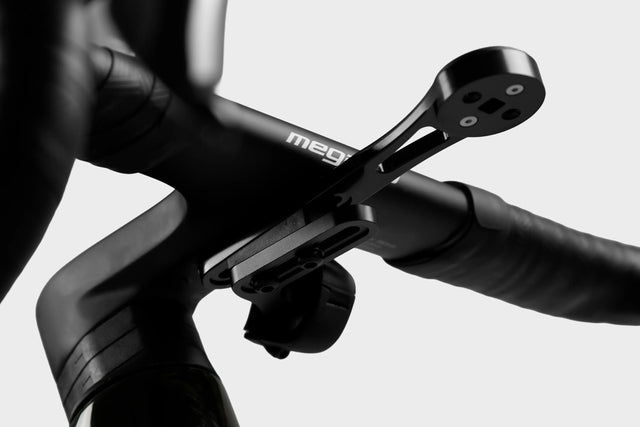

| Accessories | Megamo cycle computer mount |
Geometry (mm)
| S | M | L | XL | |
|---|---|---|---|---|
| Top tube | 522 | 553 | 578 | 599 |
| Chainstay | 435 | 435 | 435 | 435 |
| Seat tube | 450 | 500 | 540 | 580 |
| Head tube | 119 | 142 | 169 | 196 |
| Reach | 376 | 398 | 416 | 430 |
| Stack | 555 | 578 | 603 | 628 |
| BB drop | 87 | 87 | 87 | 87 |
| Head angle | 70.8° | 71° | 71° | 71° |
| Seat angle | 75.2° | 75° | 75° | 75° |
| Wheelbase | 1023 | 1051 | 1078 | 1103 |
Size guide
| Small | Rider height up to 169 cm |
|---|---|
| Medium | Rider height 167–182 cm |
| Large | Rider height 180–195 cm |
| Extra Large | Rider height 192 cm + |
Between sizes? Book a bike fit with us in Dorking and we will get your size and setup right before you ride away. E-bikes are also available through Cycle to Work schemes.
