Orbea Denna

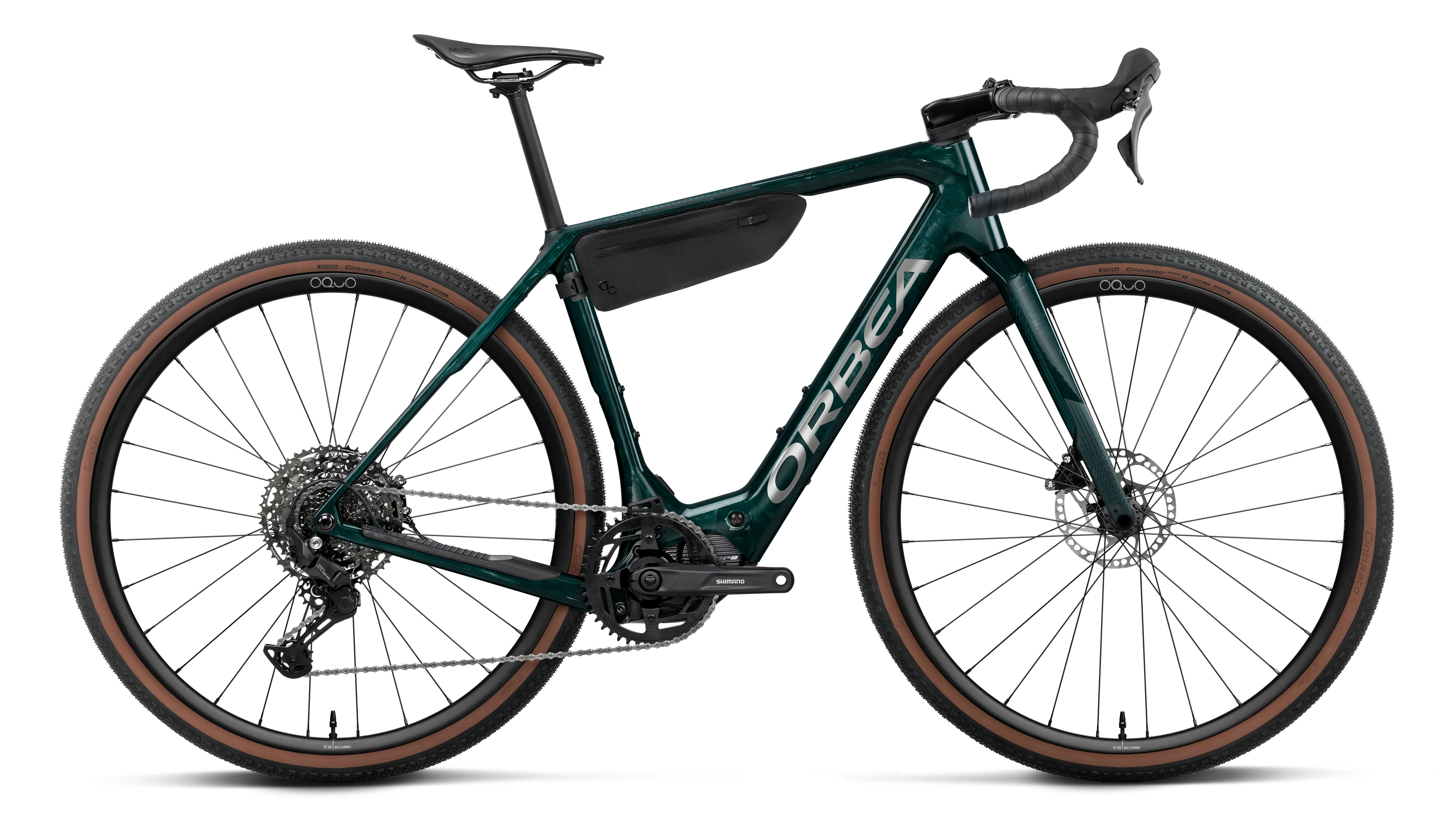

Denna M40
An electric gravel bike powered by the Shimano EP801 motor and the Orbea Internal 420Wh battery, with internal cable routing and a full-carbon fork.
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.
Nickel Matt - Carbon Raw Gloss
Escape Green Gloss - Foggy Matt
Caramel C. View (Gloss) - Metallic Gold (Gloss)
Orbea Denna
Joyful adventure
Denna is Orbea's electric gravel bike, built around gravel-tuned assistance, wide tyre clearance and a frame designed for a smooth ride on long days.
Gravel-tuned assistance
Orbea tunes the Shimano motor specifically for Denna. RC stands for Road Control, a natural-feeling tune developed for narrower gravel tyres, with two pre-set profiles: Gravel and Gravel+.
Range
A large internal 420Wh battery gives long range while keeping the bike light enough to be fun to ride.
Orbea gravel geometry
A low centre of gravity, balanced weight distribution and gravel-tuned geometry make Denna easy to handle when the surface gets difficult. Fork trail is tuned to each frame size.
Smooth ride
The frame is designed to flex in a controlled way over rough surfaces without losing composure or wasting energy, and the Denna fork is built for gravel performance.
Tyre clearance
Generous clearance, up to 50C tyres, so you can build the bike for more off-road or more road-focused riding.
Frame choices
Denna is offered in Orbea's tough OMR carbon or in high-polished alloy, with the same core features either way.
Base configuration highlights
Base configuration
Denna M40 build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.
- Fork
- Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
E-bike system
- Motor
- Shimano EP801
- Battery
- Orbea Internal 420Wh
- Remote / controller
- EN600-L
- Charger
- Orbea 2.Generation eBike Smart charger 42V/2-4A
Drivetrain
- Crank
- Shimano Steps EM600
- Shifters
- Shimano U6030
- Cassette
- Shimano CS-LG400 11-50t 11-Speed
- Chain
- Shimano LG500
- Rear derailleur
- Shimano Cues U6000 GS Shadow
- Chain guide
- Orbea eBike chainguide
Cockpit
- Handlebar
- OC Gravel GR31, Reach 70, Drop 110
- Stem
- OC Road Performance RP23, -5º
- Bar plugs
- OC Components
Brakes
- Brakes
- Shimano RS405 Hydraulic Disc
Wheels & tyres
- Wheels
- Oquo Road Control RC25PRO
- Front hub
- Orbea Thru Axle 12x100mm M12xP1 Hollow
- Rear hub
- Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
- Tyres
- Pirelli Cinturato™ GRAVEL H Classic 700X45c TLR
Components
- Saddle
- Selle San Marco Shortfit 2.0 Start Up Off Road
- Seatpost
- SP 0.2 Carbon, 27.2mm, Setback 0
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
