Orbea Gain
Gain M30
Mechanical Shimano 105 2x12 with hydraulic discs on Orbea's OMR carbon e-road frame, powered by the near-silent Mahle X20 hub motor and a 353Wh internal battery.
Colours
Colour options
Available in 2 factory colours. Orbea MyO custom colours are available on request – ask in store.
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt)

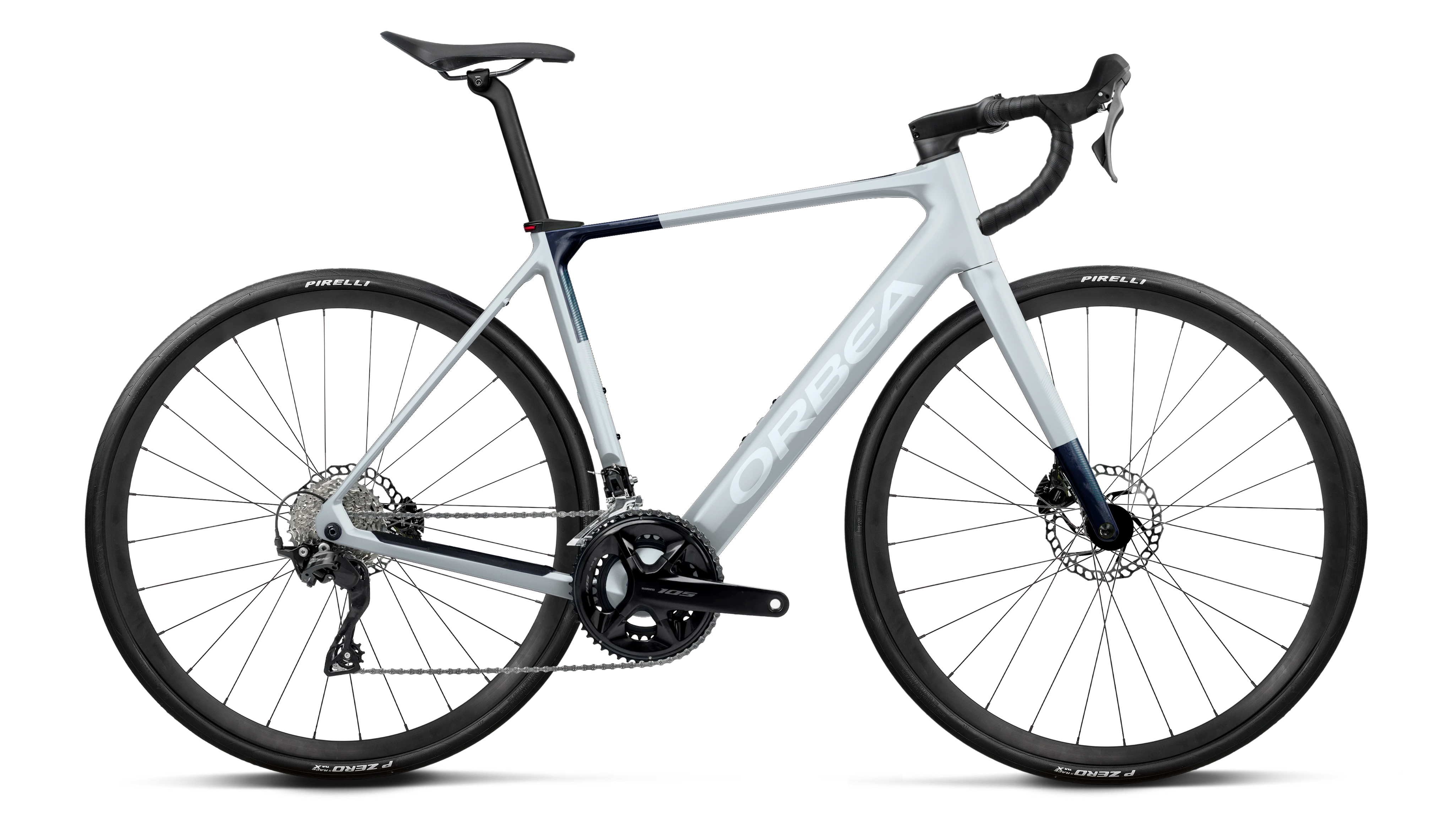

Halo Silver (Matt) - Blue Carbon View (Gloss)
Orbea Gain
Joyful performance
Gain is Orbea's lightweight e-road bike. It gives just enough natural assistance to turn gravity down a little, without taking over the ride, so you feel fitter rather than towed.
Enough Power
Orbea's Enough Power tune gives natural, near-silent assistance that peaks between 75 and 95rpm and mirrors your effort. Above the assisted speed the motor cuts out almost imperceptibly, leaving frictionless pedalling.
Mahle X20 hub motor
One of the lightest, most compact e-bike systems available: 50Nm of assistance with a total system weight of 3.2kg including the battery. The motor connects automatically when you refit the rear wheel.
Up to 4,000m of climbing
The 353Wh downtube battery and Gain's lower power draw give up to 7 hours and 4,000m+ of climbing in Level 1. An optional 171Wh Range Extender fits in the bottle cage for big days.
Pure road handling
OMR carbon frame with Powerspine, 12mm thru axles, short chainstays and size-specific trail, so Gain handles like a great road bike. Six sizes from XS to XXL.
35mm tyre clearance
Room for 35mm tyres takes Gain beyond tarmac onto light gravel. It ships on Pirelli P ZERO Race X 30c tubeless tyres.
Integrated everything
Top-tube Mahle ONE head unit with Bluetooth and ANT+, PulsarONE display, integrated front and rear lights with auto light sensor, ICR Plus cable routing and a hidden seat clamp.
Base configuration highlights
Base configuration
Gain M30 build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Gain Carbon OMR monocoque structure, integrated seat clamp with StVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug
- Fork
- Gain OMR carbon fork, 700x35 maximum tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
E-bike system
- Motor
- Mahle X20 rear hub motor, ALC
- Battery
- Mahle iX350 36V 353Wh
- Display
- MAHLE PulsarONE
- Head unit
- Mahle ONE Head Unit (BT/ANT+)
- Charger
- Mahle Active Charger up to 4A
Drivetrain
- Crankset
- Shimano 105 R7100 34x50T
- Shifters
- Shimano 105 R7120
- Front derailleur
- Shimano 105 R7100
- Rear derailleur
- Shimano 105 R7100
- Cassette
- Shimano 105 R7100 11-34T 12-speed
- Chain
- Shimano M6100
Cockpit
- Handlebar
- OC SL Handlebar RP21
- Stem
- OC Road Performance RP10, -8º
Brakes
- Brakes
- Shimano 105 hydraulic disc
Wheels & tyres
- Wheels
- Alloy, Tubeless, 700c, 21c
- Tyres
- Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
- Front axle
- Orbea Thru Axle 12x100mm M12x2 P1 Lite
- Rear axle
- Orbea Thru Axle 12x142mm M12x2 P1 Lite
Components
- Saddle
- Fizik Tempo Aliante R5
- Seatpost
- OC Performance XP10-S Carbon, 27.2mm, Setback 20mm
Accessories
- Front light
- Front position light on display holder, COB LED, 60 lumen, ECE50
- Rear light
- Rear position light on saddle clamp, COB LED, 12 lumen, StVZO
- Bar tape
- Orbea Anti-Slippery/Shock Proof
Geometry
Gain geometry
| Geometry (mm) | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat tube (C-T) | 430 | 460 | 490 | 515 | 540 | 570 |
| Top tube (eff.) | 516 | 535 | 555 | 569 | 587 | 602 |
| Head tube | 113 | 136 | 158 | 181 | 203 | 225 |
| Head angle | 71° | 71.2° | 71.5° | 72° | 72.2° | 72.5° |
| Seat angle | 74.5° | 74° | 73.5° | 73.5° | 73.2° | 73.2° |
| Chainstay | 415 | 415 | 415 | 415 | 415 | 415 |
| BB drop | 78 | 78 | 78 | 76 | 76 | 76 |
| Wheelbase | 984 | 998 | 1011 | 1022 | 1035 | 1047 |
| Standover | 728 | 756 | 782 | 803 | 830 | 844 |
| Reach | 370 | 378 | 386 | 394 | 402 | 410 |
| Stack | 525 | 547 | 569 | 591 | 613 | 635 |
| Fork length | 380 | 380 | 380 | 380 | 380 | 380 |
| Rake | 50 | 50 | 50 | 50 | 50 | 50 |
| Trail | 64.5 | 63.3 | 61.4 | 58 | 57 | 55 |
Not sure of your size? Compare the stack and reach above with your current bike, or come in for a bike fit.
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
