Orbea Occam
Occam SL M10
A full-suspension mountain bike (trail).
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

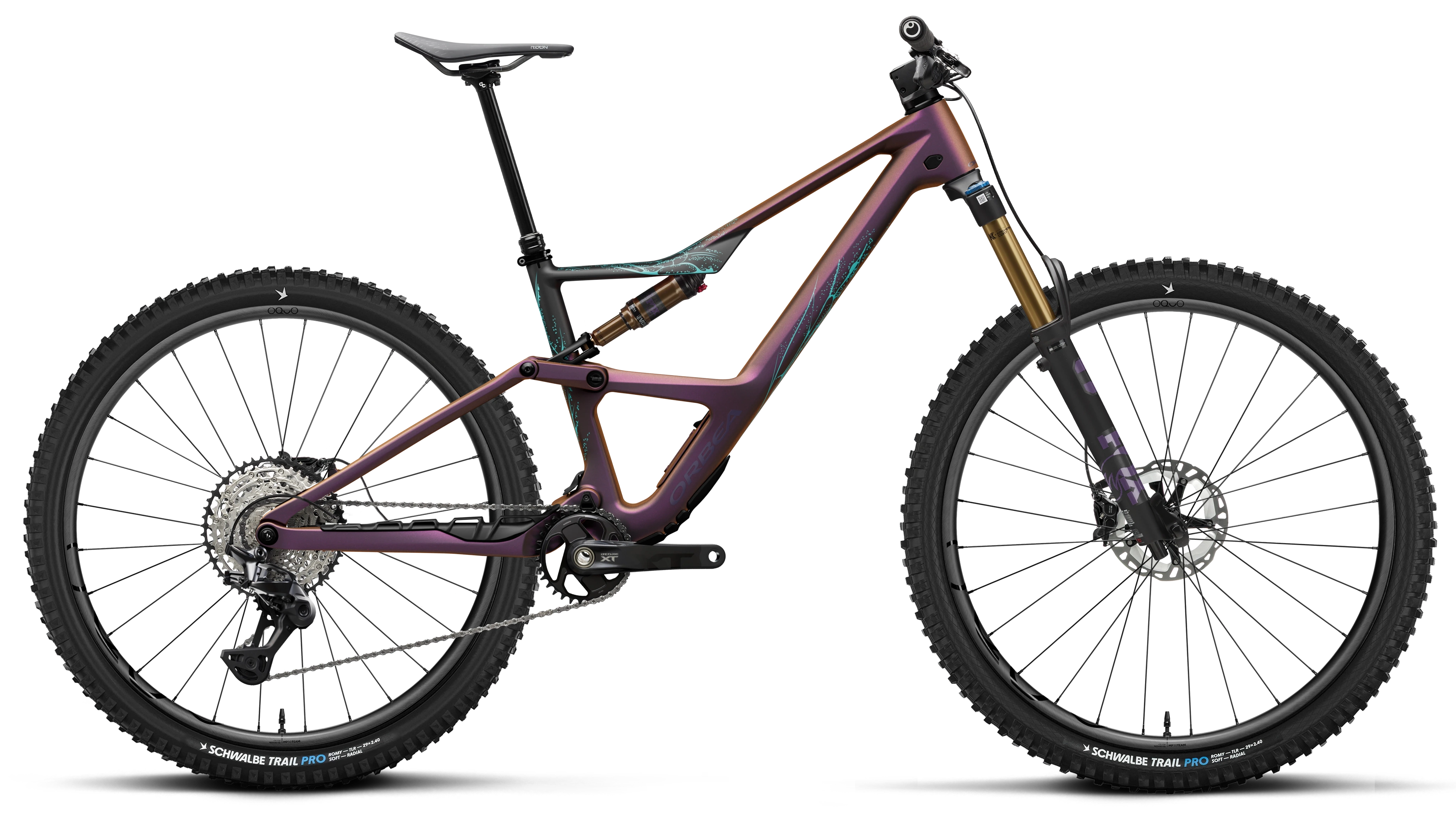

Sunset Carbon View - Black (Matt)

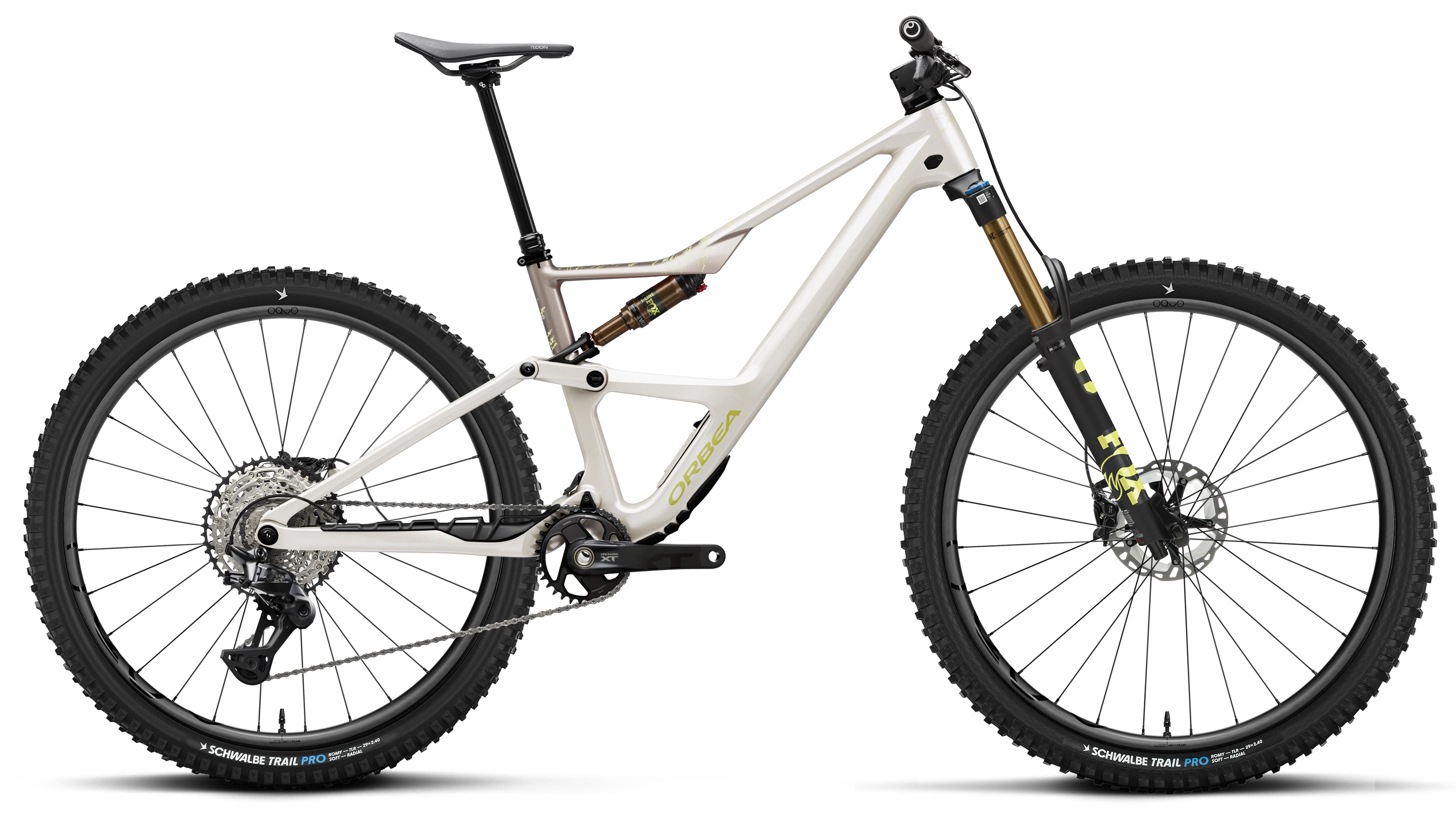

Ivory White - Nickel (Gloss)
Escape Green - Carbon View Gloss
Orbea Occam
Adventure²
Occam is Orbea's trail bike, offered as the SL and the longer-travel LT so you can pick the character you want. Both share the same frame platform and are offered in carbon and alloy.
Occam SL
Lightweight and efficient for riders who want to cover serious ground. 140mm of travel front and rear, fast trail geometry and a Squidlock remote lockout. Tuned anti-squat helps it climb well.
Occam LT
For riders who want to push harder. 160mm of travel at the front and 150mm at the rear, progressive trail geometry and a choice of coil or air shock.
Progressive suspension
Orbea says Occam has around 30% progressivity, finding grip while staying composed on bigger hits. Each bike has a purpose-matched shock extender: light carbon on the SL, adjustable alloy on the LT.
Steep and deep seat tube
An uninterrupted, steep seat tube lets riders on every size fully insert a 230mm dropper post.
Built for climbing
Occam has long been known for its climbing ability, and the tuned pedalling behaviour of the suspension keeps that going.
Base configuration highlights
Base configuration
Occam SL M10 build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Both Internal & External cable routing. Asymmetric design. 29" wheels.
- Fork
- Fox 36 Float SL Factory 140, Grip SL, Remote-Adj Push-lock, QR15x110, Kashima
- Shock
- Fox Float Factory Remote Push-lock Evol Kashima custom tune 210x50mm
- Headset
- Alloy 1-1/2", Black Oxidated Bearing
Drivetrain
- Crankset
- Shimano XT M8200 32t
- Shifters
- Shimano XT M8200 I-Spec EV
- Cassette
- Shimano CS-M7200 10-51t 12-Speed
- Chain
- Shimano M6100
- Rear derailleur
- Shimano XT M8200 SGS Shadow Plus
Cockpit
- Handlebar
- OC Mountain Control MC10 Carbon, Rise 20, Width 800
- Stem
- OC Mountain Control MC11 Alu SL, 0º
- Grips
- Ergon GXR
Brakes
- Brakes
- Shimano XT 8220 Hydraulic Disc
Wheels & tyres
- Wheels
- Oquo Mountain Performance MP30TEAM
Components
- Saddle
- Fizik Terra Ridon X5 145mm
Accessories
- Storage
- Accesories Containers
- Side bag
- Accesories Containers
- Computer mount
- OC Computer Mount CM-05, Garmin/Sigma
- Tools
- MT-20 FLP Multitool 2/3/4/5mm hex
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
