Orbea Rallon
Rallon E-LTD
A full-suspension mountain bike (enduro).
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

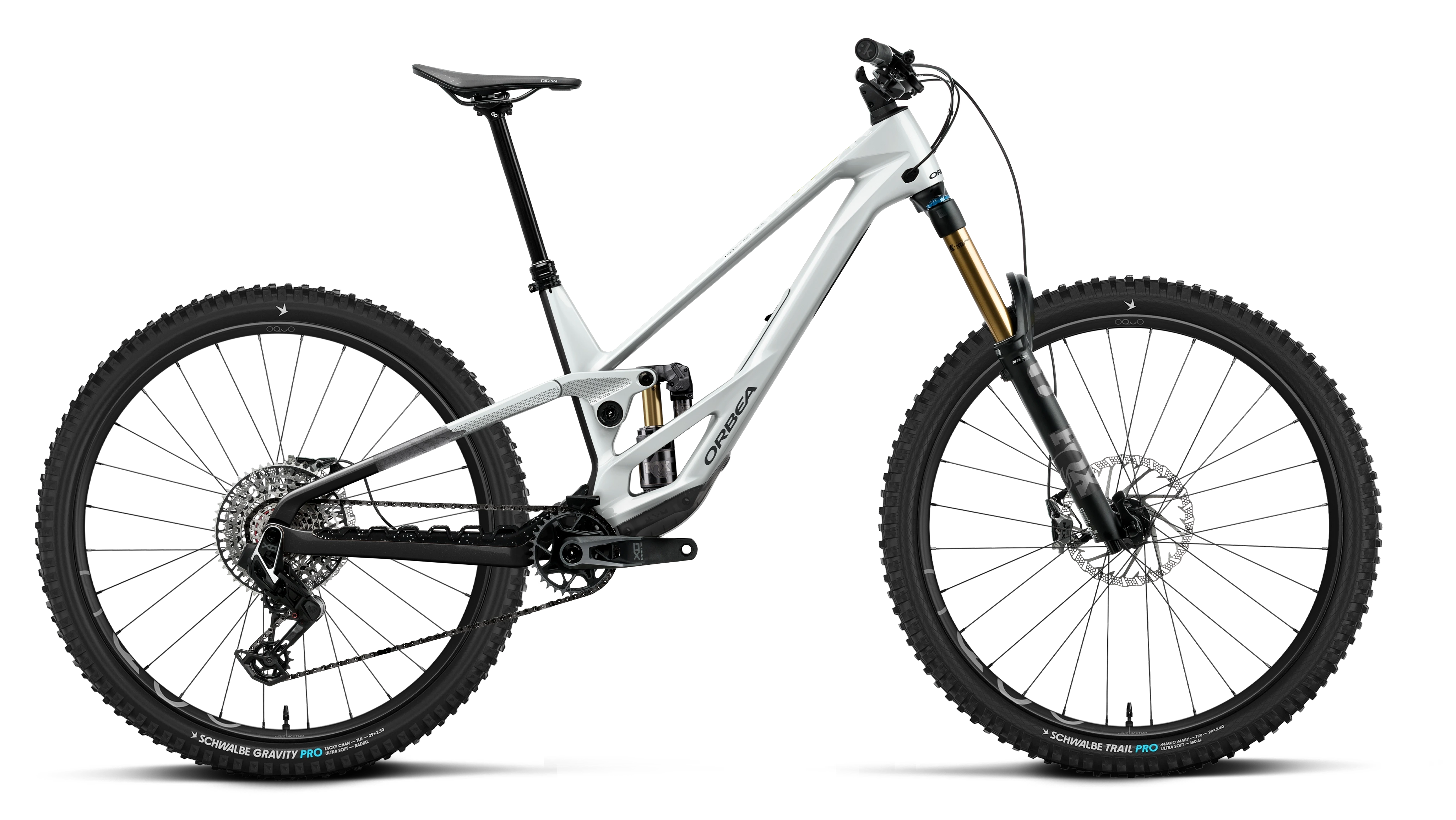

White Chich - Diamond Black (Gloss)

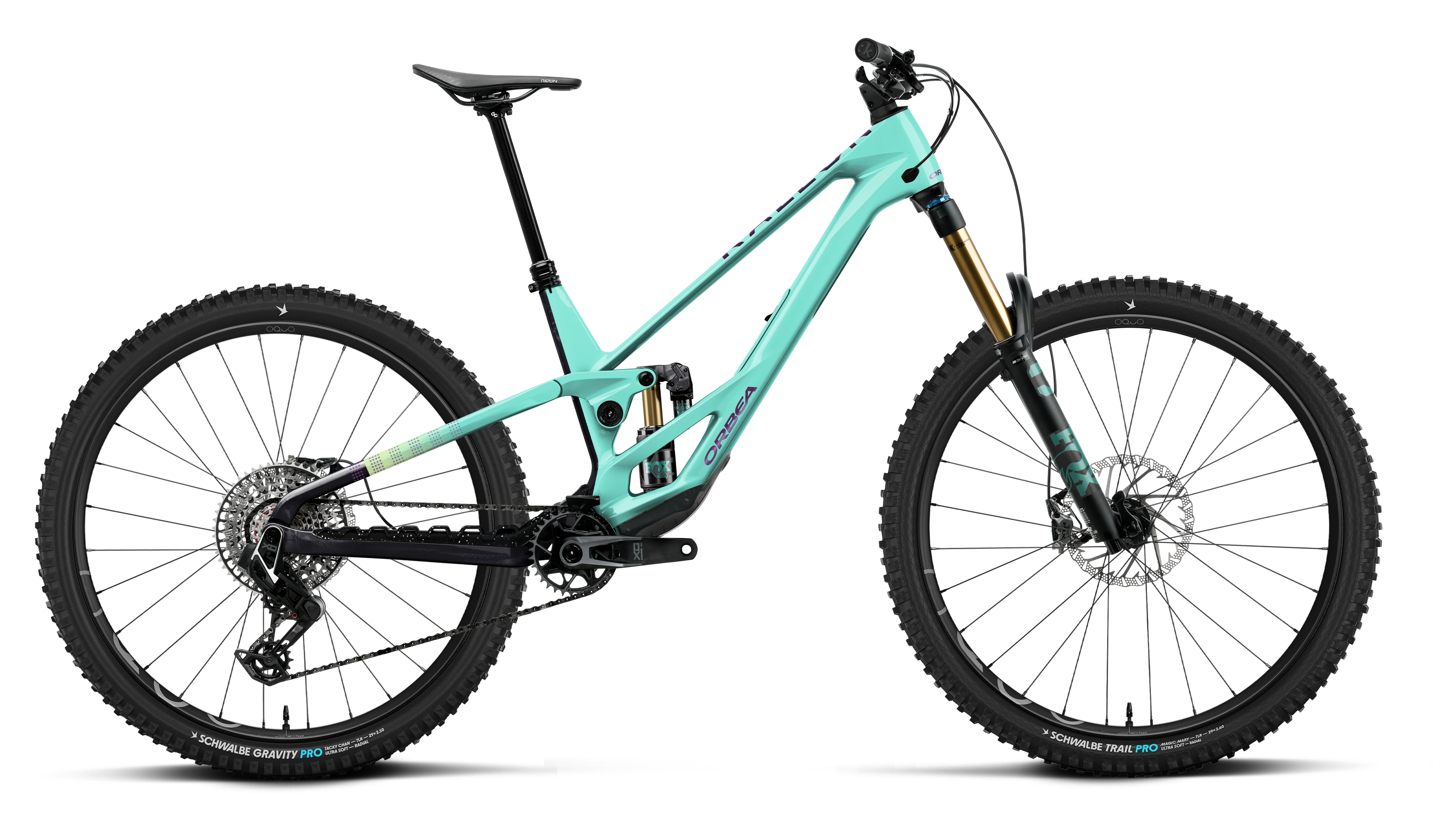

Aloha Green - Fantasy Purple Carbon View (Gloss)
Nickel (Matt) - Nickel Chrome (Gloss)
Orbea Rallon
Gravity bred
Rallon is Orbea's gravity bike, a World Cup-proven platform built for enduro and downhill riding with a big emphasis on adjustability.
Downhill-developed suspension
Rallon uses the same active suspension kinematics in both its downhill and enduro versions, so enduro riders get DH-level performance to smooth the roughest tracks.
Progressive leverage ratio
The leverage curve stiffens as the bike moves deeper into its travel, giving predictable behaviour at all times. The curve is shaped by both the frame and the shock.
Electronic shock option
For enduro stages with short climbs mid-descent, an electronic shock that adjusts from trail data about 70 times a second is available through MyO.
Race-ready, adaptable geometry
Years of downhill testing shaped the geometry, which is more adaptable than before. Head angle and chainstay length can be adjusted.
Lockr storage
Orbea's in-frame Lockr storage lets you carry essentials inside the carbon downtube.
Tuned rigidity
Frame stiffness is tuned for the way a gravity bike loads up in corners and on landings.
Base configuration highlights
Base configuration
Rallon E-LTD build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Rallon OMR. 442mm chainstay length. Concentric Boost 12x148 rear axle. Pure Gravity geometry. Attitude Adjust. ISCG05
- Fork
- Fox 38 Float Factory 180, Grip X2, 15x110, Kashima
- Shock
- Fox Float X2 Live Valve Neo Factory Trunnion Evol LV Kashima custom tune 205x62.5mm
- Headset
- Alloy 1-1/2", Black Oxidated Bearing
Drivetrain
- Crankset
- Sram X0 Eagle Dub Black 32t
- Shifters
- Sram AXS Pod
- Cassette
- Sram X0-1295 Eagle 10-52t 12-Speed
- Chain
- Sram X0 Eagle 12-Speed
- Rear derailleur
- Sram X0 Eagle AXS
- Chain guide
- e*thirteen CL55 30-36t black
Cockpit
- Handlebar
- OC Mountain Control MC10 Carbon, Rise 35, Width 800
- Stem
- OC Mountain Control MC11 Alu SL, 0º
Brakes
- Brakes
- Shimano XTR 9220 Hydraulic Disc
Wheels & tyres
- Wheels
- Oquo Mountain Control MC32TEAM
- Tyres
- Schwalbe Magic Mary Radial TLR, 29x2.50, Gravity Pro, Ultra Soft
Components
- Saddle
- Fizik Terra Ridon X5 145mm
- Seatpost remote
- Shimano SL-MT500 I-Spec EV
Accessories
- Mudguards
- Fox Fork, Long
- Storage
- Accesories Containers
- Side bag
- Accesories Containers
- Computer mount
- OC Computer Mount CM-05, Garmin/Sigma
- Tools
- MT-20 FLP Multitool 2/3/4/5mm hex
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
