Orbea Terra Race
Terra Race M31eLTD 1X
A race-focused carbon gravel bike built on the OMX Disc frame, with a 1X chain guide, UDH dropout and internal routing.
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

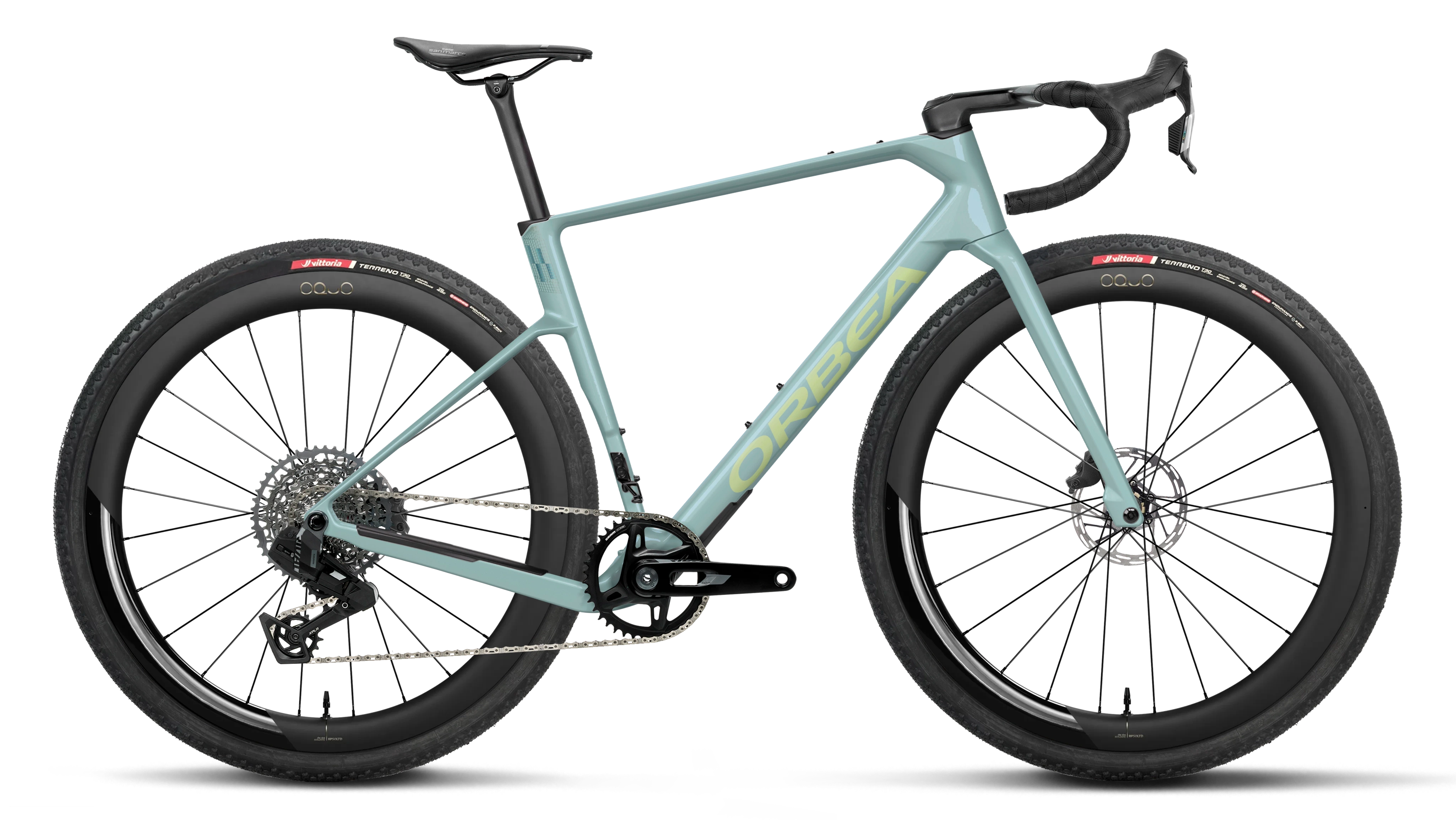

Frozen Concrete (Gloss)

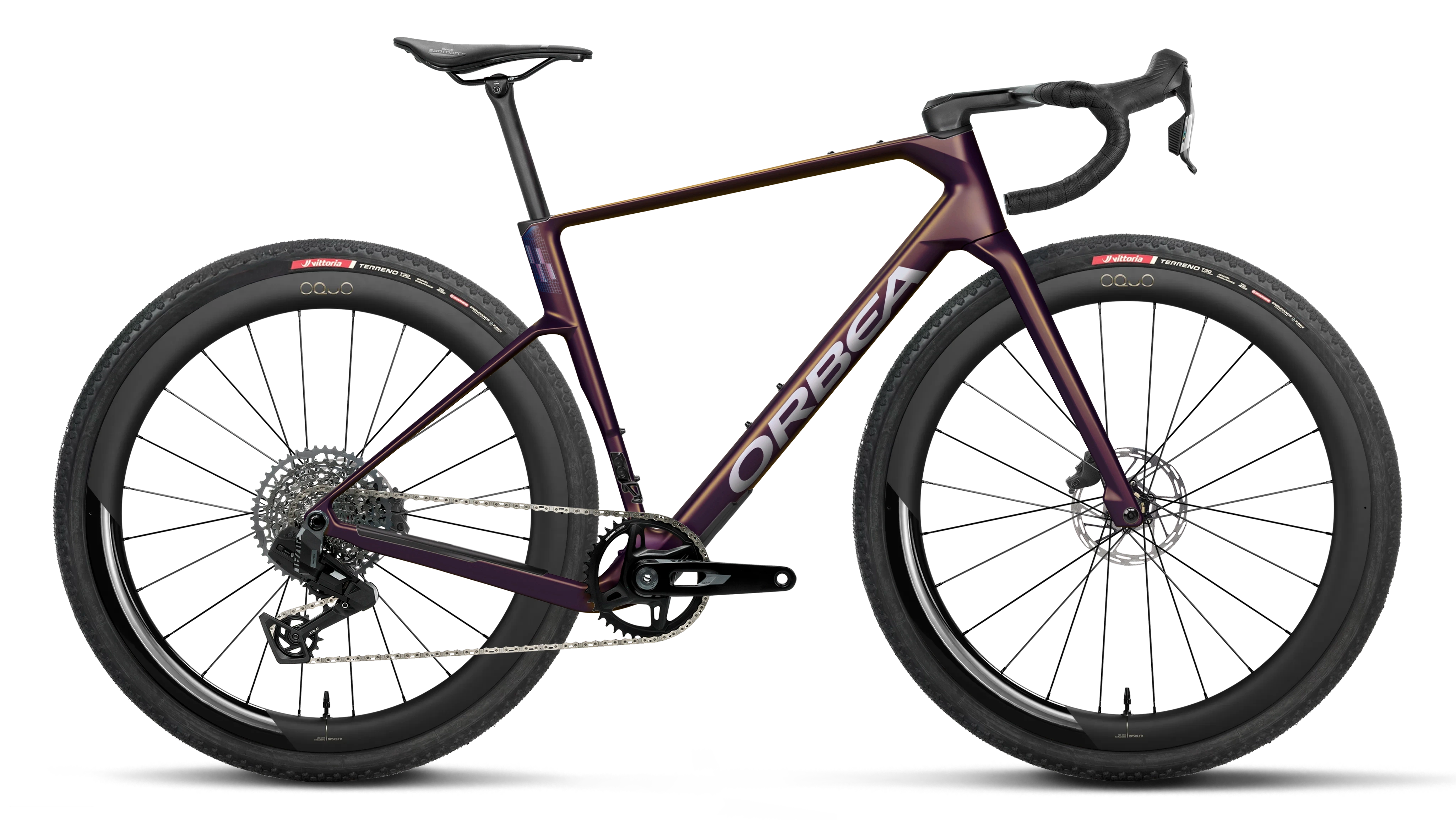

Sunset Carbon View (Matt)

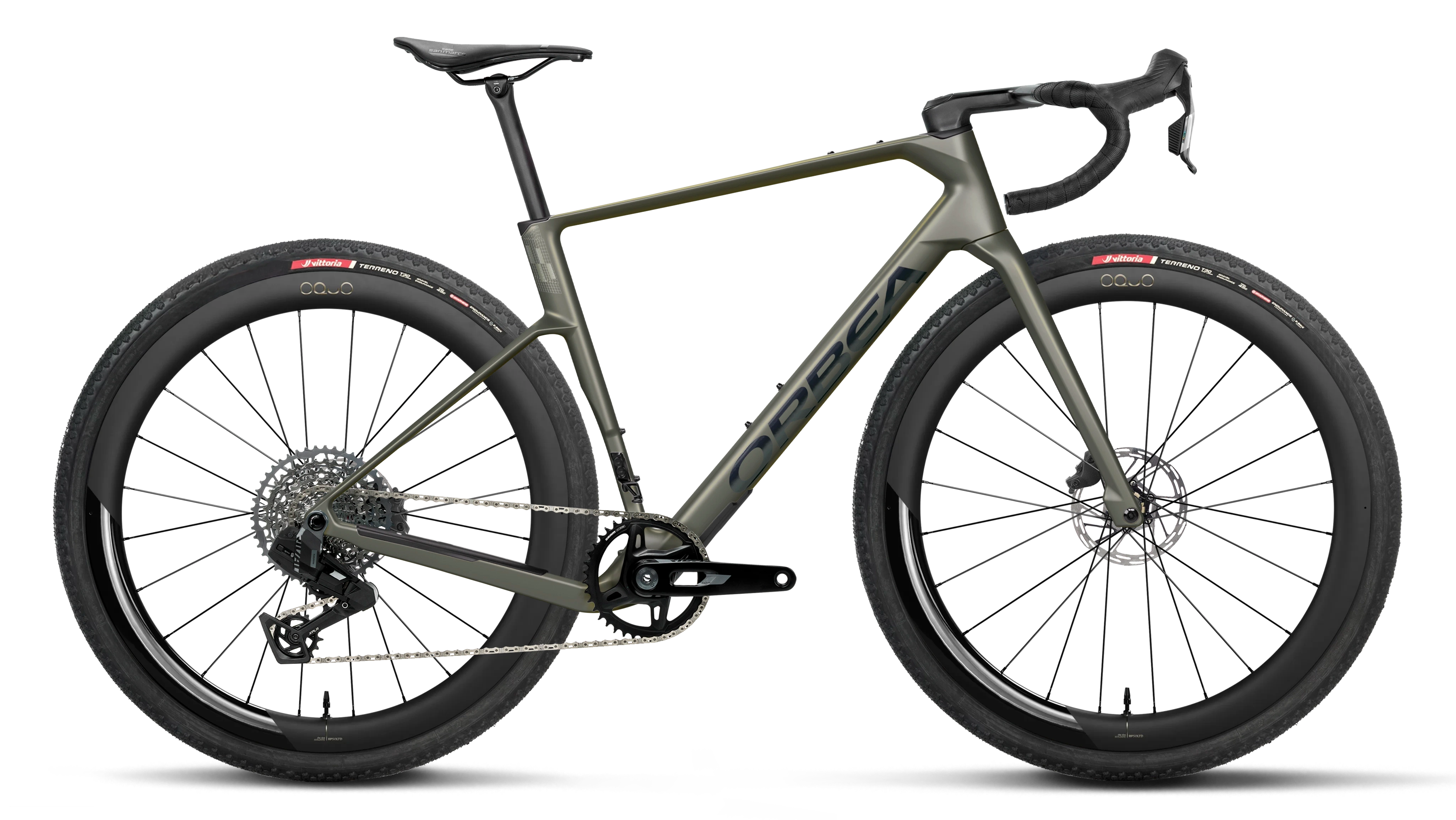

Spaceship Green (Matt)
Orbea Terra Race
Gravel unleashed
A race-focused gravel bike built around Orbea's OMX carbon frame and an Orca-inspired race geometry. Orbea notes Terra Race won every stage of the 2025 Migration Gravel Race.
Lightest, strongest OMX carbon
Fewer carbon pieces and less overlap save about 300g without losing rigidity. Orbea quotes 910g for the unpainted frame and 425g for the fork.
OMX carbon fork
Tuned for stiffness and precise handling, with room for 45C tyres plus 7mm of lateral clearance.
Internal seatpost clamp
A discreet, aerodynamic clamp inspired by Orca, with simple adjustment.
Vibration-damping rear triangle
Shaped to smooth out rough ground and keep the rear wheel planted when the pace picks up.
Aero where it counts
An integrated cockpit and deep-section wheels do the most to cut drag, with smaller details adding up too.
Efficiency
Maximised efficiency
Race-tuned geometry and a stiff, responsive frame turn effort into speed.
Gravel racing geometry
Inspired by Orca and reworked for gravel: lower stack and longer reach for a more aero position, with BB height and wheelbase set for stability at speed.
Size-specific fork trail
Keeps handling consistent across the size range.
Stiff in the right places
Orbea quotes 910g for the frame and 425g for the fork, with frame stiffness of 90–95 Nm/°.
Size-tuned stiffness
Larger frames are tuned to stay as responsive as smaller ones.
Tyre clearance
Room for tyres up to 45C for wider, faster-rolling setups.
UDH compatible
Universal Derailleur Hanger for wide drivetrain choice and easy replacement.
1x or 2x drivetrain
The frame is designed to work with either setup.
Components and fit
Performance-driven adaptability
Fit, wheels and components can be tuned for the race.
OQUO RP50LTD wheels
Carbon wheels with a 50mm profile and a wider internal rim for compliance on rough surfaces.
OC SH-RA10 aero cockpit
Fully internal routing, ergonomic tops and a tilt-adjustable computer mount.
Fit options
Choose an integrated cockpit or flared gravel bars, with options for bar width and height, stem length and crank size.
Base configuration highlights
Base configuration
Terra Race M31eLTD 1X build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Terra carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout.
- Fork
- Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
Drivetrain
- Crankset
- Sram Rival 1 XPLR Dub Wide 40t
- Cassette
- Sram XG-1351 XPLR 10-46t 13-Speed
- Chain
- Sram Rival 12-13 Speed
- Rear derailleur
- Sram Rival XPLR AXS 13s
Cockpit
- Bar plugs
- OC Components
Brakes
- Brakes
- Sram RIVAL AXS
Wheels & tyres
- Wheels
- Oquo Road Performance RP50LTD
- Front hub
- Orbea Thru Axle 12x100mm M12xP1 Lite
- Rear hub
- Orbea Thru Axle 12x142mm M12xP1 Lite
- Tyres
- Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
Components
- Saddle
- Selle San Marco Shortfit 2.0 Start Up Off Road
- Seatpost
- OC Performance XP10 Carbon, 27.2mm, Setback 0
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
