Orbea Wild TR
Wild TR M-TEAM
A full-suspension electric mountain bike (enduro) powered by the Bosch Performance Line CX BDU3843 motor and the Bosch Powertube 750Wh Horizontal BBP3770 battery.
Colours
Colour options
Available in 3 factory colours. Orbea MyO custom colours are available on request – ask in store.

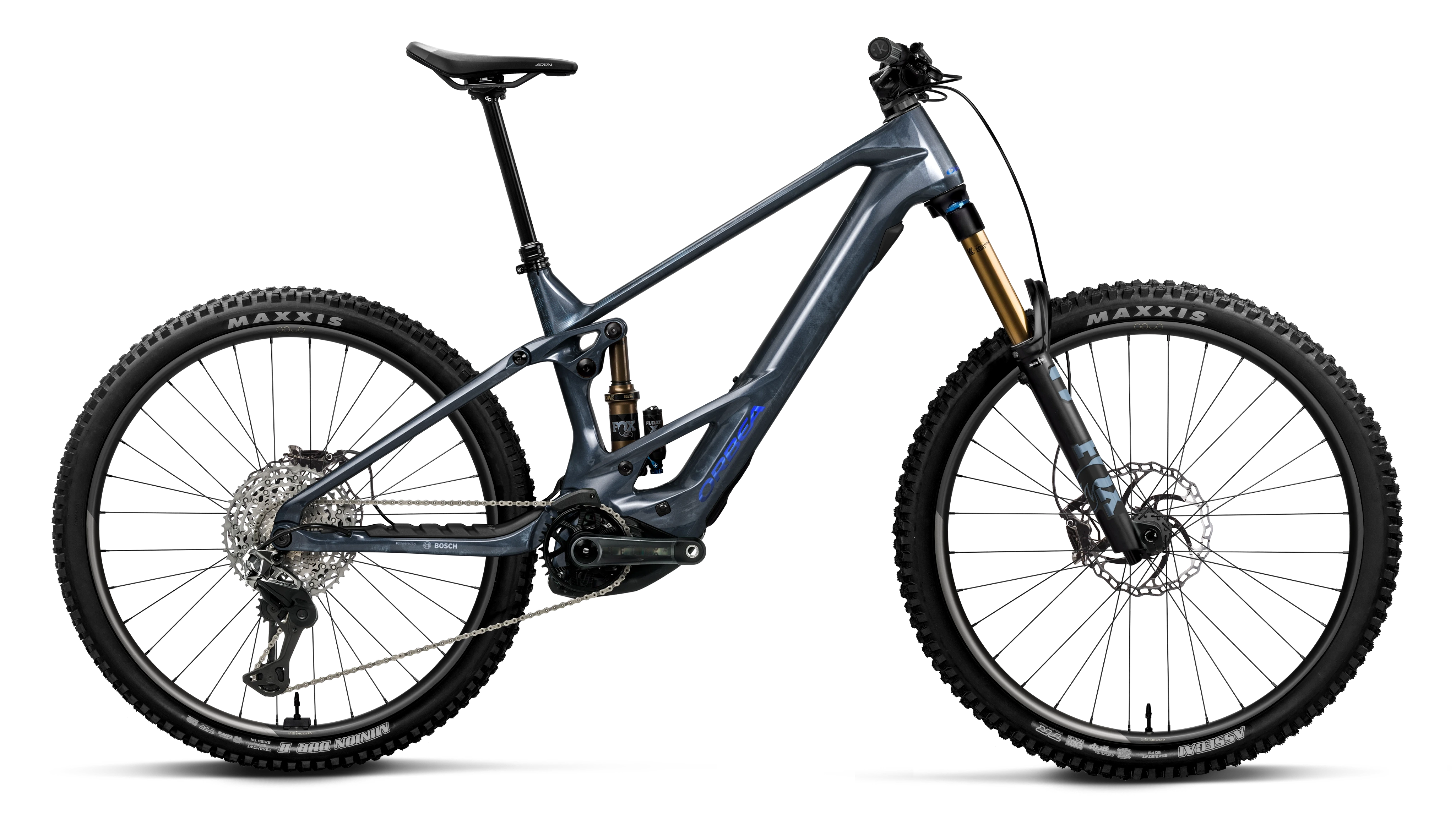

Fuel C. View - Titan Blue (Gloss)
White Chic - Tanzanite Evo C. View (Gloss)

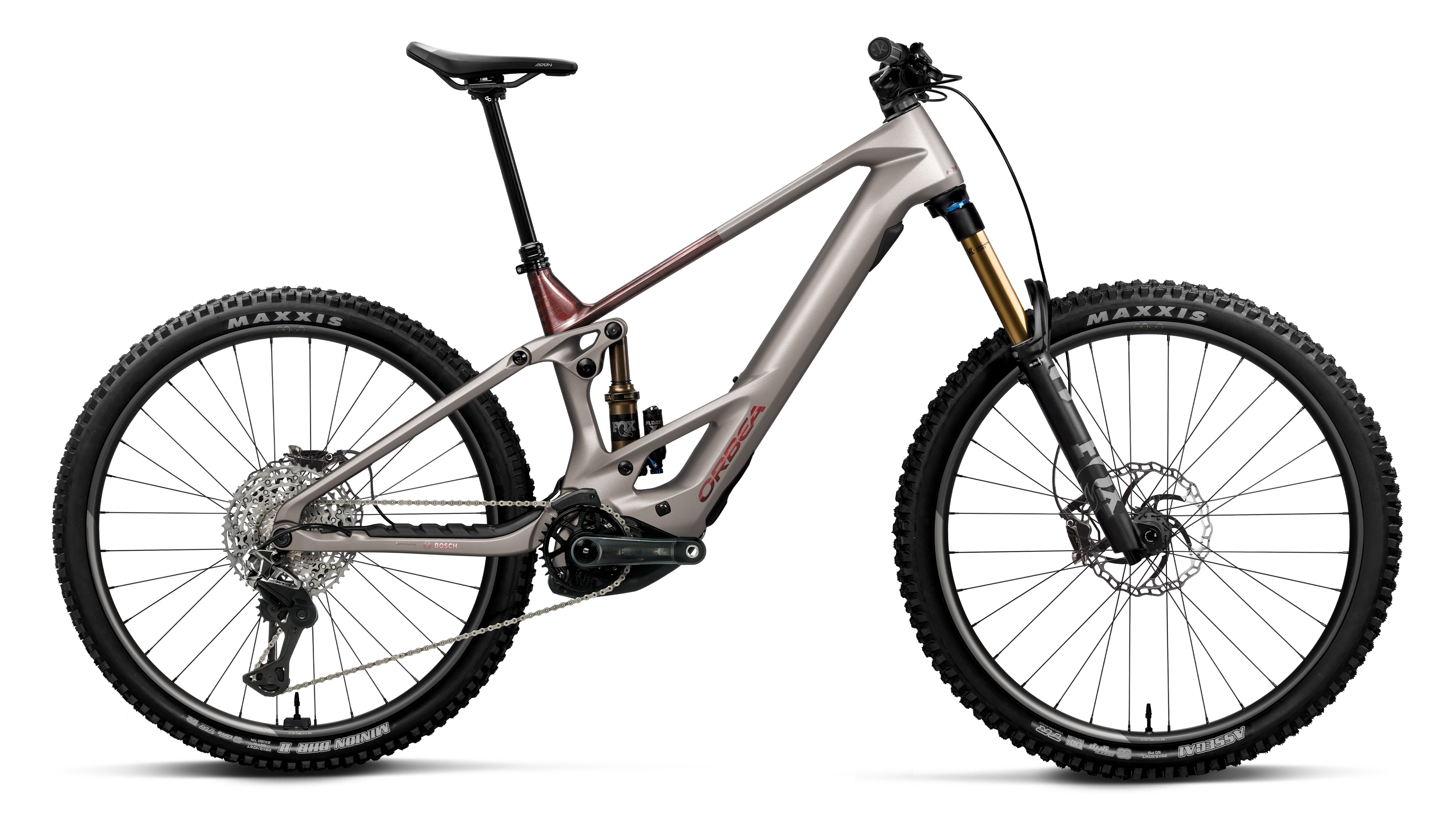

Nickel (Matt) - Burning Ashes C. View (Gloss)
Orbea Wild TR
Trail power
Wild TR pairs 150mm of trail-tuned suspension with Bosch's Performance Line CX motor, on the same braced frame platform as the Wild LT. Orbea offers it with aluminium and carbon frames.
Trail-tuned suspension
150mm of travel front and rear. Orbea says the progressive suspension is active off the top, supportive through the mid-stroke and resistant to harsh bottom-outs as speeds rise.
Steep and deep frame
A short, straight seat tube leaves room for a long-travel dropper post on every frame size.
Low, central weight
The Secure Battery System places the battery low and close to the bottom bracket so the bike stays composed on rough trails.
Bosch Performance Line CX
The motor delivers up to 120Nm of torque and 750W of peak power, according to Orbea.
Sealed pivots
Sealed pivot points keep dirt out so the suspension stays smooth ride after ride.
Customisable
Frame, wheels and components can be personalised through Orbea's MyO programme.
Base configuration highlights
Base configuration
Wild TR M-TEAM build specification
Complete component specification for this build.
Frameset
- Frame
- Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148
- Fork
- Fox 36 Float Factory 150, Grip X2, 15x110, Kashima
- Shock
- Fox Float X Factory Trunnion 2-Pos Evol LV custom tune 205x57.5mm
- Headset
- Alloy 1-1/2", Black Oxidated Bearing
E-bike system
- Motor
- Bosch Performance Line CX BDU3843
- Battery
- Bosch Powertube 750Wh Horizontal BBP3770
- Display
- Bosch System Module Kiox 400C
- Remote / controller
- Bosch Mini Remote BRC3300
- Charger
- Bosch Charger 4A (230V) BPC3400
Drivetrain
- Crank
- e*thirteen Helix Core
- Shifters
- Shimano XT M8250
- Cassette
- Shimano CS-M7200 10-51t 12-Speed
- Chain
- Shimano M8100
- Rear derailleur
- Shimano XTR M9260 12s
- Chain guide
- e*thirteen Bosch CX Gen5 CL55 32-36t
Cockpit
- Handlebar
- OC Mountain Control MC10 Carbon, Rise 20, Width 800
- Stem
- OC Mountain Control MC11 Alu SL, 0º
Brakes
- Brakes
- Shimano XT 8220 Hydraulic Disc
Wheels & tyres
- Wheels
- Oquo Mountain Control MC32LTD POWER
- Tyres
- Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
Components
- Saddle
- Fizik Aidon 208x145mm manganese rail
- Seatpost remote
- Shimano SL-MT500 I-Spec EV
Accessories
- Computer mount
- OC Computer Mount CM-05, Garmin/Sigma
Ordering
Available from The Cycle Collective
Available to order through The Cycle Collective in Dorking. For availability, sizing advice or a bike fit, call 0203 148 6764 or email hello@thecyclecollective.cc.
